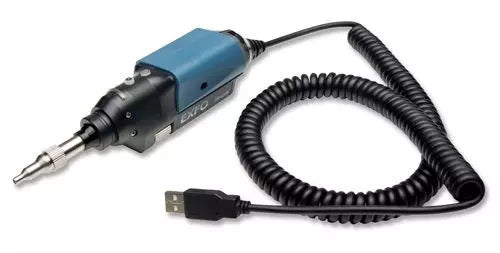

EXFO FIP-420B-APC Fiber Inspection Probe with APC Tips

Overview

The EXFO FIP-420B-APC Fiber Inspection Probe is a high-performance digital video inspection tool engineered for the critical analysis of fiber optic connectors. It is designed to assist network technicians in verifying fiber health in FTTX, hybrid networks, and fiber-fed small cell deployments, ensuring high-quality optical connections by identifying common contaminants and defects.

This inspection probe features triple magnification capabilities, automatic image centering, and integrated fiber connection detection. These functions work in tandem to minimize testing time and eliminate human error. The unit includes a high-visibility LED indicator that provides immediate pass/fail feedback directly at the probe, streamlining workflows in the field.

The FIP-420B-APC is built for cross-platform compatibility, integrating seamlessly with the EXFO FTB ecosystem, MaxTester 700B OTDR series, and the MAX-FIP display, as well as standard PCs and laptops via the ConnectorMax2 software suite. The complete kit includes specialized APC tips for versatile testing across bulkhead adapters and patch cords.

Key Features

• Automated Pass/Fail Analysis
  Uses software-based analysis to determine connector health, reducing potential for human error.
• Triple Magnification
  Provides three levels of zoom to ensure clear visual inspection of various fiber end-face conditions.
• Automatic Image Centering
  Adjusts the fiber view to the center of the display, significantly reducing setup time for the operator.
• High-Visibility LED Indicator
  Displays clear pass/fail status directly on the probe for quick on-site decision-making.
• Broad Ecosystem Compatibility
  Works with EXFO OTDRs, portable displays, and standard computers for flexible application.
• Rugged Design
  Constructed for the rigors of field use in varying network environments.

Applications

• FTTX Network Installation and Maintenance
• Hybrid Fiber-Copper Network Testing
• DAS (Distributed Antenna Systems)
• Fiber-fed Small Cell Deployment
• Central Office and Data Center Link Certification

Package Contents

• FIP-420B-APC Digital Video Inspection Probe
• 2.5mm APC Universal Patch Cord Tip
• SC/APC Tip for Bulkhead Adapters
• GP-2175 Protective Cap and Cord Assembly
• Plastic Storage Box
• Soft Protective Pouch

Technical Specifications

Frequently Asked Questions

Is this probe compatible with standard PCs?
Yes, it is compatible with PCs and laptops using the ConnectorMax2 software suite.

Does this probe include tips for testing different connectors?
The kit comes with a 2.5mm APC universal patch cord tip and an SC/APC bulkhead adapter tip.

Can the unit provide pass/fail results without looking at a monitor?
Yes, the probe includes an integrated LED that indicates the pass/fail status directly on the unit.

What devices is the FIP-420B compatible with?
It is compatible with the EXFO FTB ecosystem, MaxTester 700B OTDR series, MAX-FIP display, and standard PCs.

Does it support automated focus?
Yes, the unit utilizes a specialized automatic focus function to reduce testing time.
