EXFO FIP-420B-UPC Fiber Inspection Probe with UPC Tips

Overview

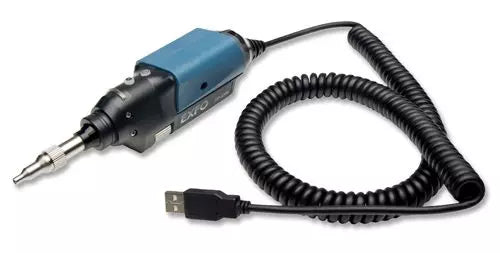

The EXFO FIP-420B-UPC is a high-performance, fully automated fiber inspection probe designed for precise connector analysis in the field. This digital video inspection tool is engineered to simplify complex network testing by providing automated features that minimize manual operation and reduce overall testing time.

Equipped with triple magnification, automatic image centering, and intelligent fiber connection detection, this probe ensures accurate, repeatable results. It supports automatic pass/fail analysis in compliance with industry standards and generates comprehensive reports when paired with ConnectorMax2 software. It is ideally suited for technicians working in FTTX, hybrid networks, and DAS environments, ensuring reliable connector performance across various fiber-fed small cells.

Key Features

• Automated Fiber Centering
  Automatically centers the fiber image, reducing manual adjustments and saving time during field testing.
• Triple Magnification
  Provides three distinct zoom levels to thoroughly examine connector end-faces for scratches, pits, or contaminants.
• Automatic Pass/Fail Analysis
  Uses built-in software to instantly evaluate connector quality against industry standards, eliminating human error.
• High-Visibility LED Indicator
  Features a status LED that provides immediate pass/fail visual feedback upon completion of the analysis.
• ConnectorMax2 Software Compatibility
  Enables advanced data analysis, image capture, and professional reporting for certification documentation.
• Universal Compatibility
  Designed to integrate seamlessly with the entire FTB ecosystem, MaxTester 700B OTDR series, and various display platforms including PCs and laptops.

Applications

• FTTX Network Testing
• Hybrid Fiber Network Maintenance
• DAS (Distributed Antenna Systems)
• Fiber-fed Small Cells
• General Fiber Connector Inspection

Package Contents

• FIP-420B Digital Video Inspection Probe
• 2.5mm Universal Patch Cord Tip
• FC/SC Tip for Bulkhead Adapter
• GP-2175 Protective Cap and Cord Assembly
• Plastic Box
• Soft Pouch

Technical Specifications

Frequently Asked Questions

What is the primary function of the FIP-420B-UPC?
It is a digital inspection probe used to inspect, analyze, and certify fiber optic connector end-faces for cleanliness and integrity.

Does this probe provide automatic pass/fail analysis?
Yes, it includes automated pass/fail analysis capability compliant with industry standards.

Is this compatible with my existing EXFO equipment?
The probe is compatible with the FTB ecosystem, MaxTester 700B OTDR series, MAX-FIP display, as well as PCs and laptops.

What type of tips are included in this package?
The kit includes a 2.5mm universal patch cord tip and an FC/SC tip for bulkhead adapters.

Can I generate reports with this device?
Yes, when used with ConnectorMax2 software, you can perform image capture and generate certification reports.
