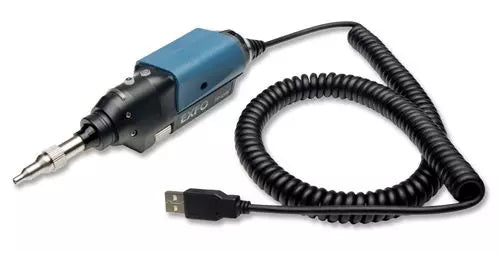

EXFO FIP-430B-APC Fiber Inspection Probe with APC Tips

Overview

The EXFO FIP-430B-APC is a fully automated digital fiber inspection probe designed to streamline the inspection and analysis of fiber optic connectors. By utilizing advanced imaging technology, this probe automates focus, image centering, and connection detection, significantly reducing test time during field operations. It is an essential tool for technicians and engineers working on FTTX, hybrid networks, DAS, and fiber-fed small cell deployments.

Equipped with a high-visibility LED pass/fail indicator, the probe provides immediate feedback on connector health, ensuring consistent quality across the network. The system seamlessly integrates with ConnectorMax2 software for detailed analysis, image capture, and comprehensive reporting. The unit is designed for versatile use across the EXFO FTB ecosystem, MaxTester 700B OTDR series, and standard PCs or laptops.

Key Features

• Automated Focus & Centering
  Features motorized focus and automatic image centering to eliminate manual adjustments and reduce inspection time.
• Pass/Fail LED Indicator
  High-visibility indicator provides immediate visual confirmation of connector status after automated analysis.
• Automated Analysis
  Performs standardized pass/fail analysis according to defined quality criteria to ensure network integrity.
• Triple Magnification
  Offers three levels of magnification for detailed inspection of connector end-faces.
• Broad Compatibility
  Works with the EXFO FTB ecosystem, MaxTester 700B series, MAX-FIP displays, and standard Windows-based PCs.
• Internal Memory
  Compatible with the MAX-FIP display, enabling storage of up to 4,000 fiber certification results.

Applications

• FTTX Network Installation and Troubleshooting
• Hybrid Network Certification
• DAS (Distributed Antenna System) Maintenance
• Fiber-fed Small Cell Infrastructure
• Data Center Fiber Link Verification

Package Contents

• FIP-430B Digital Inspection Probe
• 2.5mm APC Universal Patchcord Tip
• SC/APC Tip for Bulkhead Adapter
• GP-2175 Protective Cap and Cord Assembly
• Plastic Storage Box
• Soft Pouch

Technical Specifications

Frequently Asked Questions

What software is used for analysis?
The probe uses ConnectorMax2 software for fiber inspection analysis, report generation, and image management.

Is this probe compatible with standard PCs?
Yes, the FIP-430B is compatible with PCs and laptops via USB connection.

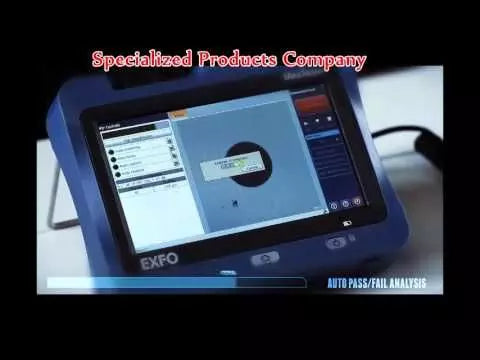

Does this probe support automatic pass/fail analysis?
Yes, it includes automated pass/fail analysis capabilities for efficient connector certification.

What tips are included in the kit?
The kit includes a 2.5mm APC universal patchcord tip and an SC/APC tip for bulkhead adapters.

Can the probe operate autonomously without a display?
The probe connects to an external display (like the MAX-FIP or a PC) for image visualization and analysis.
