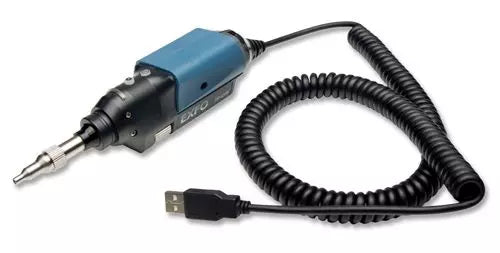

EXFO FIP-430B-UPC Fiber Inspection Probe with UPC Tips

Overview

The EXFO FIP-430B-UPC Fiber Inspection Probe is a high-performance, automated fiber inspection tool designed for network engineers and fiber technicians. It is built to streamline the inspection process in various network environments, including FTTX, hybrid networks, and fiber-fed small cells.

Equipped with advanced features such as automatic focus, image centering, and connection detection, this probe significantly reduces testing time. It supports automated pass/fail analysis and integrates seamlessly with the ConnectorMax2 software for comprehensive image capture and reporting.

Key Features

• Automated Fiber Inspection
  Features automatic focus, image centering, and fiber connection detection to speed up the testing process.
• Triple Magnification
  Provides clear, detailed views of fiber end-faces to ensure accurate inspection across different connector types.

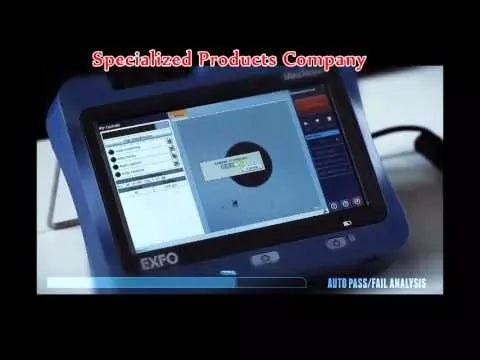

• Automated Pass/Fail Analysis
  Delivers standardized results in accordance with industry benchmarks, minimizing operator subjectivity.
• High-Visibility LED Indicator
  Provides immediate pass/fail status updates directly on the probe for convenient on-the-spot verification.
• Broad Compatibility
  Works with the FTB ecosystem, MaxTester 700B OTDR series, MAX-FIP display, as well as PCs and laptops for flexible operation.
• Integrated Data Management
  When paired with the MAX-FIP, it supports storage for up to 4,000 fiber certification results.

Applications

• FTTX Network Inspection
• Hybrid Network Maintenance
• DAS (Distributed Antenna System) testing
• Fiber-fed Small Cell site validation

Package Contents

• FIP-430B Digital Inspection Probe
• 2.5mm Universal Patchcord Tip
• FC/SC Tip for Bulkhead Adapters
• GP-2175 Protective Cap and Cord Assembly
• Plastic storage box
• Soft carrying pouch

Technical Specifications

Frequently Asked Questions

What is the primary function of the FIP-430B-UPC?
It is a digital video inspection probe used to automatically inspect, analyze, and certify fiber optic connector end-faces for cleanliness and defects.

Does this probe provide pass/fail results?
Yes, it features automated pass/fail analysis and includes a high-visibility LED indicator to show the status of the connection under test.

Is this probe compatible with computers?
Yes, it is compatible with PCs and laptops, as well as EXFO’s FTB ecosystem and MaxTester 700B series.

What tips are included in this specific kit?
This kit includes a 2.5mm universal patchcord tip and an FC/SC tip for bulkhead adapters.

Does the unit store results?
The probe itself serves as the capture device; when used with the MAX-FIP display, it supports storage for up to 4,000 test results.
