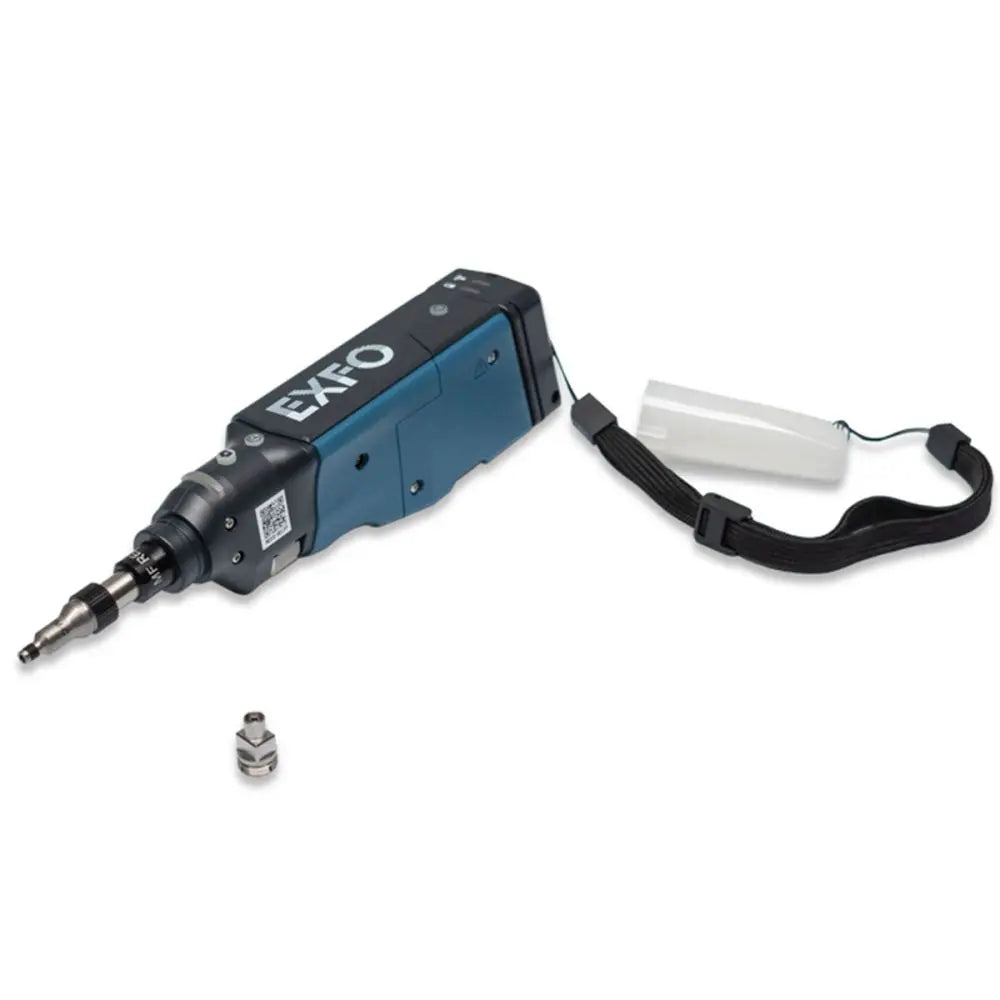

EXFO FIP-435B-UPC Wireless Fiber Inspection Probe with UPC Tips

Overview

The EXFO FIP-435B-UPC is a fully automated wireless fiber inspection probe designed for critical network maintenance and certification. It enables technicians to inspect fiber connector end-faces for cleanliness and integrity, ensuring optimal signal transmission in demanding environments such as FTTA, FTTx, hybrid networks, and DAS installations.

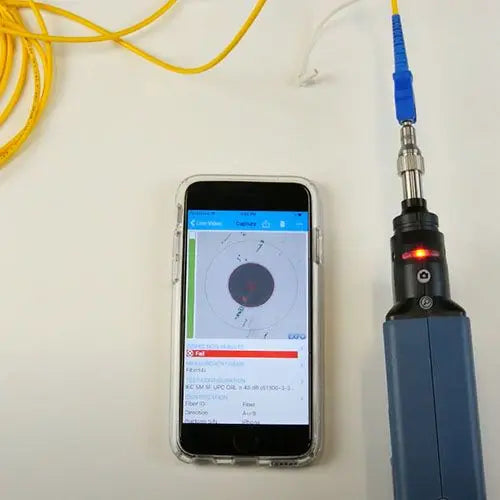

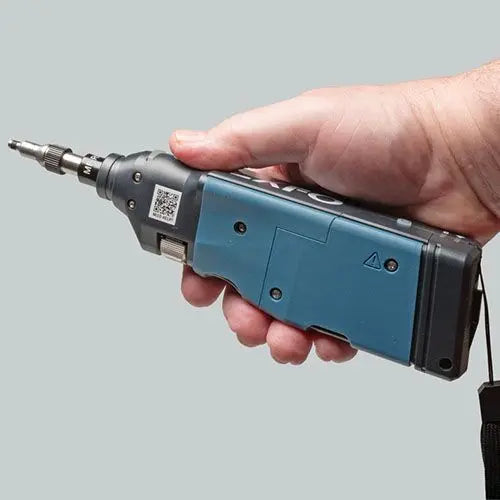

Featuring advanced automated focus, auto-centering, and connector end-face analysis, this probe simplifies the inspection workflow, allowing for one-handed operation. With integrated WiFi connectivity, it seamlessly pairs with the ConnectorMax2 Mobile software on Android and iOS devices, providing live video displays, screen rotation, zoom, and automated reporting capabilities to improve efficiency in the field.

Key Features

• WiFi Connectivity
  Enables wireless transmission of inspection images to smart devices, eliminating cumbersome cables during field testing.
• Automated Focus
  Rapidly achieves clear images without manual adjustments, reducing test time and user fatigue.
• Pass/Fail LED Indicator
  Provides immediate, intuitive visual feedback on the connector status, minimizing errors in decision-making.
• Triple Magnification
  Allows for precise viewing of fiber end-faces at varying levels of detail for comprehensive analysis.
• MPO/MTP Analysis
  Supports complex connector testing with advanced picture-in-picture visualization capabilities.
• Extended Battery Life
  Delivers up to 6 hours of continuous operation, supporting full shifts without the need for frequent recharging.
• Automated Center
  Automatically aligns the fiber under test to the center of the field of view for consistent imaging.

Applications

• Fiber-to-the-Antenna (FTTA)
• Fiber-to-the-x (FTTx)
• Distributed Antenna Systems (DAS)
• Hybrid network maintenance and troubleshooting
• Connector end-face inspection and certification

Package Contents

• FIP-435B-UPC Wireless Fiber Inspection Probe
• 2.5mm Universal patchcord tip
• FC/SC tip for bulkhead adapter
• USB to micro USB cable
• Rechargeable battery
• USB AC adapter
• Protective cap and cord assembly
• Plastic case for tips
• Soft pouch

Technical Specifications

Frequently Asked Questions

Is this probe compatible with Apple devices?
Yes, the FIP-435B is compatible with iOS devices via the ConnectorMax2 Mobile Software.

Does this unit require a physical connection to a computer to view images?
No, it features built-in WiFi connectivity for wireless transmission to mobile devices and platforms.

How long does the battery last on a single charge?
The integrated rechargeable battery provides approximately 6 hours of continuous operation.

Can it test MPO/MTP connectors?
Yes, the probe supports MPO/MTP analysis with picture-in-picture visualization.

What does the package include?
The package includes the probe, a 2.5mm universal tip, an FC/SC bulkhead tip, cables, an AC adapter, a battery, and protective storage accessories.
