Overview

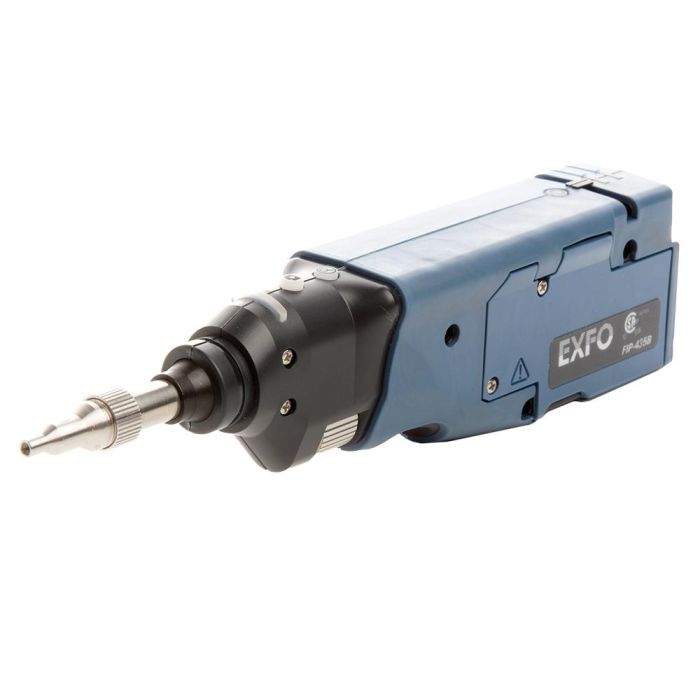

The EXFO FIP435B is a fully automated, wireless digital fiber inspection probe designed for precise connector inspection and certification. It is engineered to streamline the fiber commissioning and installation process by identifying connector defects through automated analysis software.
This inspection probe features a 5-megapixel CMOS sensor that supports three levels of magnification, offering high-resolution imaging for accurate assessments. It includes built-in Wi-Fi connectivity, allowing technicians to transmit images and reports to a mobile device or other compatible platforms without the need for cables. The probe includes an automatic image centering and focus function, which improves efficiency by minimizing the need for manual adjustments in the field.
The FIP435B is capable of on-board pass/fail analysis, providing instant feedback via a clear indicator, which helps ensure compliance with industry standards. Its construction is suited for intensive use in diverse network installation and maintenance environments.
Key Features
-
Wi-Fi Connectivity
Enables wireless transmission of inspection data and live images to a paired device, simplifying workflow in restricted or remote areas. -
Automated Focus Function
Reduces operator error and inspection time by automatically adjusting the image to the sharpest focus. -
Automatic Image Centering
Ensures the fiber end-face is perfectly positioned in the field of view for consistent, repeatable analysis. -
On-Board Pass/Fail Analysis
Performs real-time evaluation of fiber end-face quality directly on the probe, delivering immediate, actionable results. -
5-Megapixel CMOS Sensor
Provides high-definition images to identify microscopic contamination or scratches that might impact signal performance. -
Three Magnification Levels
Allows technicians to switch between zoom settings to suit different fiber types and inspection requirements. -
Integrated LED Indicator
Offers a visual status confirmation for pass/fail results, allowing for quick checks without looking at a screen.
Applications
- Fiber optic network commissioning
- Field-based fiber connector certification
- Installation and maintenance of data center infrastructure
- Troubleshooting fiber optic signal loss
Package Contents
- EXFO FIP435B Digital Fiber Inspection Probe
- SC/APC Adapter Tip
- Protective Carrying Case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Connectivity | Wireless (Wi-Fi) |
| Sensor Resolution | 5 Megapixel |
| Image Analysis | Automated On-Board Pass/Fail |
| Default Connector Type | SC/APC |
| Automated Features | Image Centering, Focus |
Frequently Asked Questions
Does this probe work with legacy connectors?
Yes, it supports various tip adapters for different connector types.
Is the analysis done on the unit or a mobile device?
The FIP435B performs pass/fail analysis on-board.
How does the unit connect to my phone?
The unit connects via integrated Wi-Fi.
Can I capture images for documentation?
Yes, the device supports image capture for certification records.
Is the SC/APC tip included?
Yes, the kit includes an SC/APC adapter tip.
