Overview

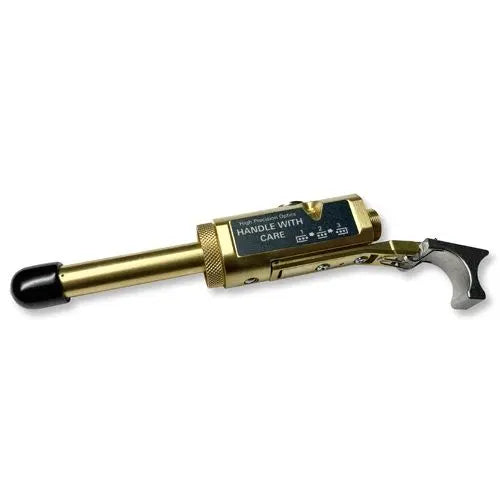

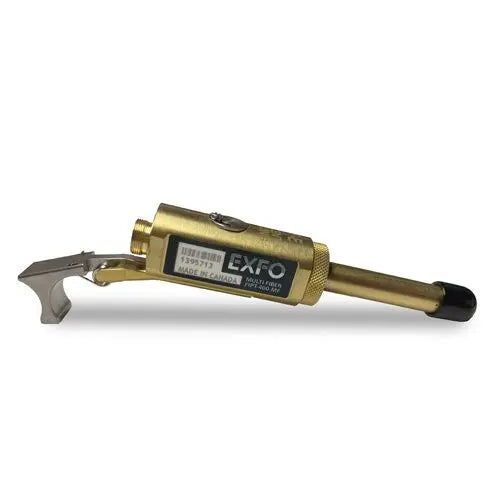

The EXFO FIPT-400-MF-MPO is an automated multi-fiber inspection tip designed for high-density fiber optic networks. It is engineered for the inspection of single-row and dual-row fiber connectors, specifically supporting 12-24 fiber configurations with UPC polishing.
This inspection tip features a long, slim profile with built-in rotation capabilities, allowing technicians to easily access deeply recessed connectors within crowded patch panels. The system is designed to streamline field inspection processes by providing automated fiber scanning and immediate pass/fail analysis via a built-in LED indicator.
Key Features
-
Automated Inspection
Features a trigger-based scan function that automatically analyzes all fibers in the connector, reducing manual inspection time. -
High-Density Compatibility
Slim design allows for easy access to tightly packed fiber patch panels. -
Connector Rotation
Integrated rotation mechanism enables inspection of deeply recessed ports without obstruction. -
Pass/Fail Indicators
On-board LED status light provides immediate visual feedback on fiber end-face condition. -
Multi-Fiber Support
Optimized for MPO/UPC connectors with 12-24 fiber counts. -
Wireless Ready
Designed for compatibility with wireless fiber inspection probes for cable-free operation.
Applications
- High-density data center patch panels
- MPO/MTP connector end-face inspection
- Fiber optic network maintenance and troubleshooting
- Enterprise and telecommunications infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FIPT-400-MF-MPO |
| Connector Type | MPO/UPC |
| Fiber Capacity | 12-24 Fibers |
| Included Components | FIPT-400-MPO-BLK, FIPT-400-NZ-MPO |
Frequently Asked Questions
What connectors does this tip support?
The FIPT-400-MF-MPO is designed for MPO/UPC connectors with 12 to 24 fibers.
Is this tip automated?
Yes, it supports automated scanning and provides pass/fail results via an LED indicator.
Can it reach recessed connectors?
Yes, the slim design and rotation capability are specifically intended for accessing deeply recessed connectors in high-density panels.

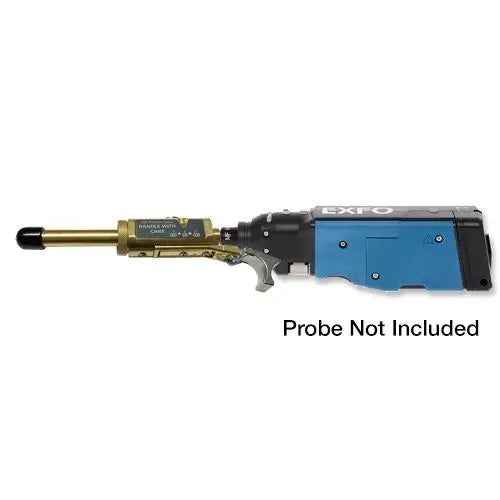

Is it compatible with wireless probes?
Yes, it is compatible with EXFO wireless fiber inspection probes.
What is the primary benefit of this tip?
It significantly speeds up inspection workflows for multi-fiber connectors by automating the scan and analysis process.
