Overview
The EXFO FIPT-400-MF-MPO-K Automated Multi-Fiber Inspection Tip Kit is a professional-grade solution designed for the inspection of high-density fiber connectivity. This kit is engineered to support the inspection of single-row and dual-row fiber connectors, including 12-fiber configurations, commonly found in data center environments and enterprise networks.
The inspection tip is optimized for use with EXFO wireless fiber inspection probes, such as the FIP-425B and FIP-435B. Its long, slim profile and rotational capability allow technicians to access deeply recessed connectors within high-density patch panels, ensuring comprehensive inspection in challenging physical layouts.

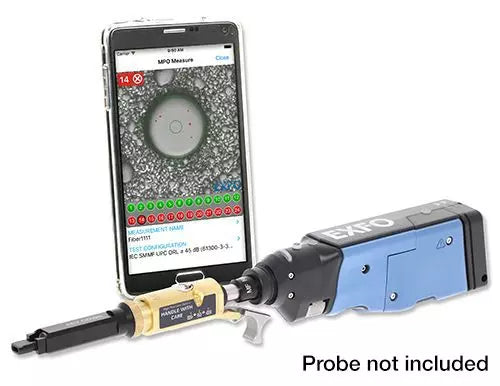

This automated system features a trigger-activated scan for all fibers, complete with a clear Pass/Fail LED indicator to streamline the verification workflow. When used in conjunction with the ConnectorMax Mobile Basic application on Android devices, it provides advanced analysis and reporting capabilities for accurate fiber network maintenance.
Key Features
-
Automated Scanning
Trigger-based mechanism automatically scans all fibers in the connector, reducing testing time and human error. -
High-Density Compatibility
Designed specifically for deep, recessed connectors in dense patch panel environments. -
Rotational Tip Design
The slender build with rotation capability ensures easy reach into confined spaces. -
Pass/Fail LED Indicator
Provides immediate, visual results directly on the tool for efficient onsite assessments. -
Wireless Integration
Compatible with FIP-425B and FIP-435B wireless inspection probes for cable-free operation. -
Mobile Analysis
Supports detailed analysis and automated report generation via the ConnectorMax Mobile Basic Android app.
Applications
- Data center fiber optic network inspection
- High-density patch panel verification
- Enterprise network maintenance
- Multi-fiber (MPO/MTP) connector quality assessment

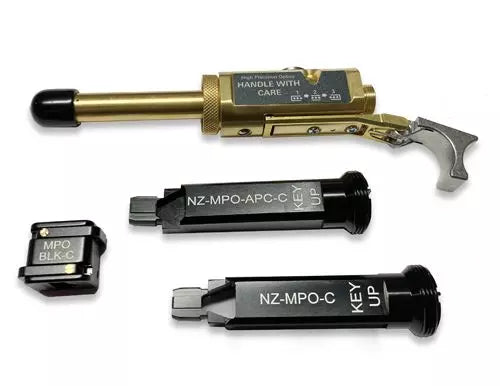

Package Contents
- FIPT-400-MF Multi-fiber connector inspection tip with removable nozzle
- FIPT-400-MTP-BLK Bulkhead tip
- FIPT-400-NZ-MPO Nozzle for MPO/UPC (12-24 fibers)
- FIPT-400-NZ-MPO-APC Nozzle for MPO/APC (12-24 fibers)
- Soft carrying pouch
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FIPT-400-MF-MPOK |
| Connector Support | MPO/UPC and MPO/APC (12-24 fibers) |
| Compatibility | FIP-425B, FIP-435B |
Frequently Asked Questions
Is this kit compatible with standard LC connectors?
No, this kit is specifically designed for MPO/MTP multi-fiber connectors.
Does this kit require an external power supply?
No, the unit is self-powered for convenient field use.
Can I use this with an iOS device?
Automated analysis is currently optimized for the ConnectorMax Mobile Basic app on Android devices.
What is included in the tip kit?
The kit includes the main multi-fiber inspection tip, MTP bulkhead tip, nozzles for MPO/UPC and MPO/APC connectors, and a storage pouch.
Does the tip rotate?
Yes, the design includes rotation capability to facilitate access to deeply recessed connectors in dense panels.
