Overview

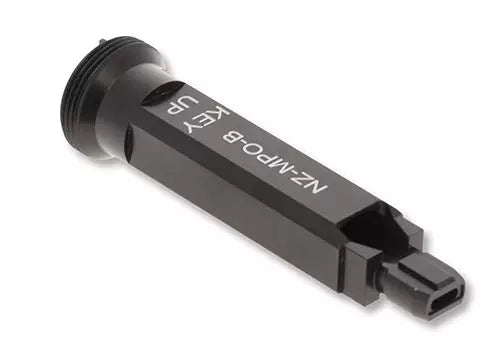

The EXFO FIPT-400-NZ-MPO is a precision-engineered, removable inspection nozzle designed specifically for high-density fiber optic networks. This nozzle integrates seamlessly with the FIPT-400-MF automated multifiber inspection tip to provide reliable, clear imaging of MPO/UPC connector end-faces.
Optimized for efficiency in data center and high-density environments, this tool supports both single- and dual-row connector configurations. It is capable of inspecting up to 24 fibers simultaneously, ensuring consistent connectivity and reducing the time required for network certification and maintenance.
Key Features
-
Compatibility
Designed for use with MPO/UPC connectors, supporting up to 24 fibers. -
Removable Design
Allows for quick changes in the field, facilitating efficient transitions between different connector types. -
High-Density Support
Engineered for inspecting high-density panels, ideal for modern data center infrastructure. -
Automated Inspection Integration
Functions as a critical component of the EXFO automated multifiber inspection system. -
Single and Dual-Row Support
Provides flexibility for various connector formats, increasing tool versatility. -
Precision Optics Alignment
Ensures accurate end-face views, which is essential for identifying contamination or defects.
Applications
- Data center link certification
- High-density fiber patch panel maintenance
- MPO/UPC trunk cable verification
- Network infrastructure troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | FIPT-400-NZ-MPO |
| Connector Type | MPO/UPC |
| Fiber Capacity | Up to 24 fibers |
| Compatibility | FIPT-400-MF inspection tips |
Frequently Asked Questions
What is the primary function of the FIPT-400-NZ-MPO?
This is a removable nozzle used with the FIPT-400-MF inspection tip to inspect MPO/UPC fiber connectors.
How many fibers can this nozzle inspect at once?
It is designed to inspect MPO/UPC connectors with up to 24 fibers.
Is this nozzle compatible with single-row connectors?
Yes, it supports both single- and dual-row connector configurations.
Does this include the inspection probe?
No, the nozzle is an accessory and does not include the FIP probe or the MF tip.
Can I use this for APC connectors?
This model is specific to MPO/UPC. Check your manufacturer documentation for APC-compatible nozzles.
