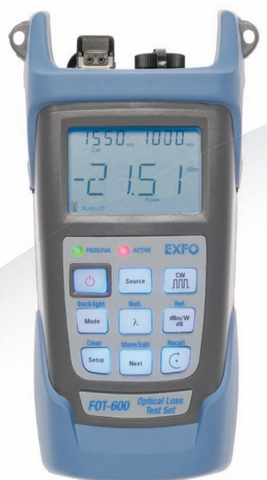

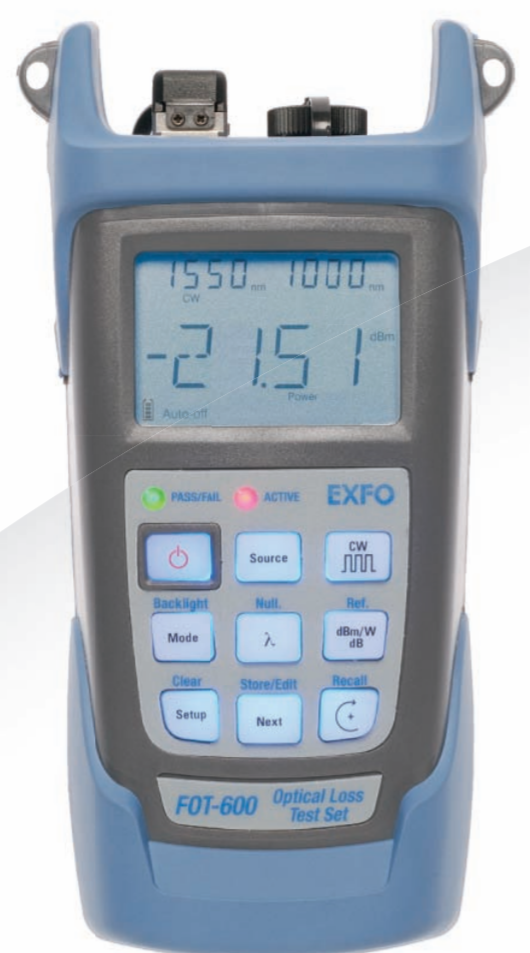

EXFO FOT-602X Optical Loss Test Set
The FOT-600 features a pass/fail LED indicator and lets technician set their own thresholds of absolute or relative loss measurements. When utilizing auto-switching mode, the light source automatically toggles between available wavelengths. The power recognizes the wavelength in use and switches to proper calibration parameter. The FOT-600 has both built in power meter and light source for bi-directional testing.
IDEAL FOR NETWORK-LINK QUALIFICATION
Part of EXFOs 600 handheld series, which includes the FPM-600 power meter and the FLS-600 light source, the FOT-600 OLTS is the ideal tool for network-link qualification. Designed for first-class ease of use, the FOT-600 features a pass/fail LED indicator; whats more, it lets you set your own thresholds for absolute or relative loss measurements.
Thanks to its memory capacity of 1000 data items and its built-in reporting software, the FOT-600 facilitates data management and enables data transfer to a PC via USB connection. Create and customize a complete test report, including certification of the link with pass/fail information.
ERROR-FREE TEST FEATURES IN A HIGHLY VERSATILE UNIT
When using the FOT-600 in Auto-Switching mode, the light source automatically toggles between available wavelengths. The power meter recognizes the wavelength in use and switches to the proper calibration parameter. With a press of a button, you can store results for all wavelengths at once, providing easy and error-free testing.
Thanks to its unique design, the FOT-600 OLTS reduces risk of error and measurement time in typical measurement situations, as the need for an offset nulling is eliminated.
In addition to network-link qualification features, the highly accurate FOT-600 offers over 40 calibrated wavelengths, including all CWDM wavelengths. Whats more, it lets you measure power fluctuations with its Hold Min/Max Power function.
FTTx-READY
EXFOs FOT-600 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.
RUGGED AND VERSATILE
Like all EXFO portable instruments, the FOT-600 is built for top ruggedness and versatility, perfect for the harshest test conditions. It features a keypad/LCD backlight, for easy operation in darker environments. Whats more, it is powered by a rechargeable battery.
- Auto-Wavelength Recognition
- Distant Referencing
- No offset Nulling
- FTTx Ready units available with 1490nm
- Factory Warranty – 3 years
- Combines a power meter and a light source and comes with your choice of
- wavelengths
- Memory capacity of 1000 data items; enables data transfer to a PC via USB
- connection
- Ideal for network-link qualification: pass/fail LED indicator and thresholds
- Error-free testing: automatic wavelength switching, and no offset nulling required
- Visual fault locator (VFL) option for quick and easy troubleshooting (standard)
- Low cost of ownership: three-year warranty and recommended calibration interval
- Complete reporting software
