Overview

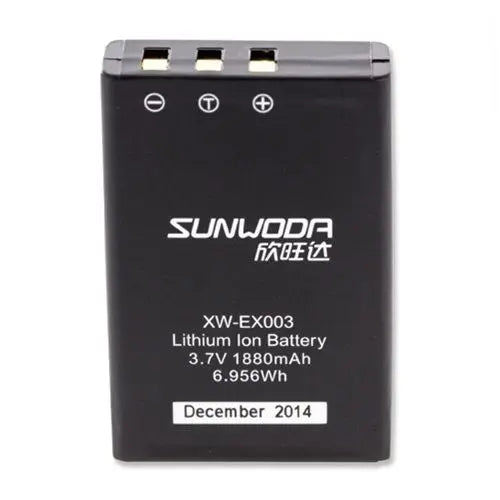

The EXFO GP-1001 is a high-capacity, rechargeable 3.7V Lithium-Ion battery designed specifically for select EXFO fiber optic test equipment. With a capacity of 1880mAh (6.956Wh), this replacement battery ensures continued operation for field testing and maintenance activities.
This battery is engineered for reliable power delivery in demanding field environments. To maintain optimal health and safety, it should only be charged using specified EXFO-approved chargers and kept within defined temperature limits for both charging and storage.
Key Features
-
Genuine EXFO Replacement
Designed specifically for EXFO hardware to prevent internal unit damage. -
High Capacity
Features an 1880mAh (6.956Wh) capacity providing approximately 50-70 hours of normal operation. -
Lithium-Ion Chemistry
Utilizes reliable Li-ion technology for consistent power discharge. -
Rechargeable Design
Supports multiple charge cycles, reducing the need for frequent replacements. -
Defined Charging Parameters
Requires approximately 5 hours for a full charge under proper conditions. -
Wide Operating Temperature
Functions correctly between 32°F and 113°F (0°C to 45°C).
Applications
- FLS-600 Light Source
- FOT-600 Optical Loss Test Set (OLTS)
- FPM-600 Power Meter
- FVA-600 Variable Attenuator
- AXS-110 Network Tester
- ELS-500 Light Source
- EPM-500 Power Meter
- FIP-400 Fiber Inspection Probe
- FOT-930 Network Tester
- LANPAL100 Network Tester
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | GP-1001 |
| Battery Type | Lithium-Ion (Li-ion) |
| Voltage | 3.7V |
| Capacity | 1880mAh / 6.956Wh |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Charging Time | Approx. 5 hours |
Frequently Asked Questions
Is this battery charged when shipped?
No, the battery is not factory-charged. It must be fully charged for approximately 4 hours before its first use.
Can I use a third-party charger?
No, you should only charge the battery using the specified EXFO charger to ensure safety and unit compatibility.
What happens if the battery is stored at high temperatures?
Never store the battery at temperatures above 140°F (60°C) as this may damage the battery.
Is there a temperature range where the battery will not charge?
The battery will not charge if the ambient temperature is below 14°F (-10°C) or above 113°F (60°C).
Why should I only use EXFO batteries?
Using non-genuine batteries can cause serious damage to your EXFO test units.
