Overview

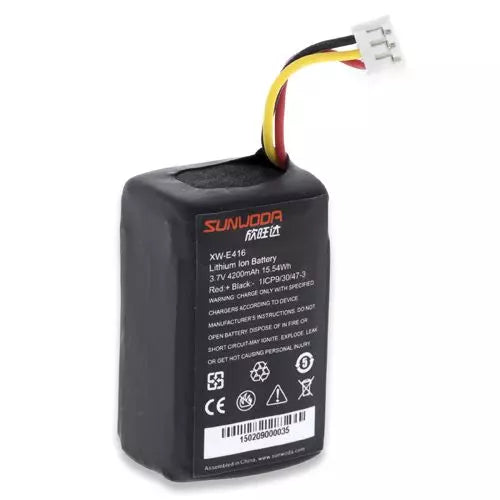

The EXFO GP-2226 is a rechargeable 3.7V Lithium-Ion battery designed specifically for use with the EXFO FIP-425B and FIP-435B wireless fiber inspection probes. This power source is essential for maintaining portability and uninterrupted inspection workflows in field environments.
With a capacity of 4200mAh (15.54Wh), this battery provides 8–10 hours of typical operating time for inspection tasks. It is optimized for use within an operating temperature range of 14°F to 104°F (-10°C to 40°C), ensuring consistent performance in diverse field conditions.
Key Features
-
Lithium-Ion Technology
High-capacity 4200mAh design provides 8–10 hours of runtime, reducing the need for mid-day charging. -
Device Compatibility
Engineered specifically for FIP-425B and FIP-435B probes to prevent internal unit damage. -
Temperature Resilience
Maintains charging and operating performance in temperatures ranging from 14°F to 104°F (-10°C to 40°C). -
Quick Charging
Features a standard 4-hour charge time to minimize equipment downtime. -
Field-Ready Power
Designed for mobile fiber inspection applications requiring extended battery life.
Applications
- Wireless fiber inspection
- Field fiber network testing
- Data center maintenance
- FTTH installation and troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | GP-2226 |
| Battery Type | Lithium-Ion (Rechargeable) |
| Voltage | 3.7V |
| Capacity | 4200mAh (15.54Wh) |
| Operating Runtime | 8–10 hours |
| Charging Time | Approximately 4 hours |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Storage Temperature | Below 60°C (140°F) |
Frequently Asked Questions
Is the battery pre-charged from the factory?
No, the battery is not charged at the factory. It must be fully charged before the first use.
Can I use third-party batteries with my FIP probe?
No, use only EXFO batteries to prevent potential damage to your inspection unit.
How long does the battery take to charge?
Charging time is approximately 4 hours.
What is the operating runtime?
The battery provides 8–10 hours of operation depending on usage.
Are there safety precautions for storage?
Store the battery below 140°F (60°C) and keep it away from fire to avoid explosion.
