Overview

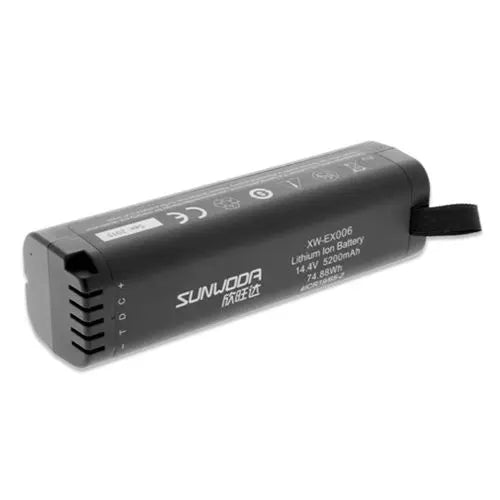

The EXFO GP-2253 is a high-capacity, rechargeable 14.4V Lithium-ion smart battery designed for use with specific EXFO test platforms. Featuring a capacity of 5200mAh (74.88Wh) and integrated protection circuitry, this battery ensures consistent power delivery for critical field testing operations.
This battery is engineered for seamless integration with EXFO equipment, providing the necessary power for extended field use. It is designed to operate and charge within a standard temperature range, making it suitable for varied working environments. To ensure maximum service life, the battery should be fully charged before its initial use.
Key Features
-
High Capacity Power
Features a 5200mAh, 74.88Wh rating for prolonged operation of testing platforms. -
Integrated Safety
Includes built-in protection circuitry to maintain operational safety during use. -
Temperature Resilience
Designed to charge and function reliably in temperatures ranging from 32°F to 122°F (0°C to 50°C). -
Platform Compatibility
Specifically designed for compatibility with FTB-1v2, FTB-1v2-PRO, and MAX-800 series platforms. -
Rechargeable Lithium-ion
Utilizes reliable Li-ion technology to support repeated charge cycles.
Applications
- FTB-1v2 test platforms
- FTB-1v2-PRO test platforms
- MAX-860 / MAX-860G test platforms
- MAX-880 test platforms
- MAX-890 test platforms
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | GP-2253 |
| Voltage | 14.4V |
| Capacity | 5200mAh |
| Energy Rating | 74.88Wh |
| Chemistry | Lithium-ion |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Frequently Asked Questions
Is the battery pre-charged from the factory?
No, the battery is not charged at the factory. It must be fully charged before its first use.
Can I use this battery with the FTB-1v2-HPDC?
No, for the FTB-1v2-HPDC platform, you must use the GP-2090 battery instead.
What is the recommended storage temperature?
The battery should be stored at temperatures below 113°F (45°C).
Are there safety precautions for handling?
Yes, keep the battery away from fire to avoid explosion. Do not drop or subject the battery to mechanical shock.
What charger should I use?
Charge the battery only with an EXFO-specified charger to prevent unit damage.
