Overview

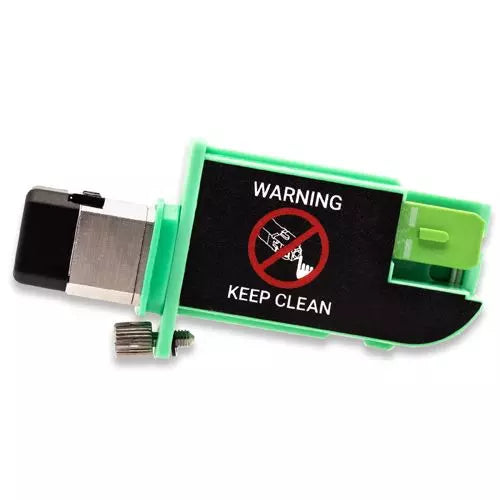

The EXFO GP-3207 is an APC single mode swap-out optical connector designed specifically for the MaxTester 700D OTDR series. This field-replaceable connector allows technicians to restore optical performance quickly without requiring a service center visit, effectively minimizing downtime and reducing maintenance costs.
Engineered for high-precision testing environments, the GP-3207 supports iOLM functionality and features an internal APC interface. The design includes an integrated diagnosis wizard within the OTDR that prompts for replacement only when necessary, ensuring the connector is replaced based on actual optical health rather than arbitrary schedules. This unit does not require recalibration of the OTDR upon installation.
Key Features
-
Field-Replaceable Design
Allows for rapid, tool-less replacement of worn connectors in the field, eliminating device downtime. -
Integrated Diagnosis Wizard
Monitors optical output health to ensure connectors are only replaced when performance is compromised. -
iOLM Compatibility
Maintains full support for intelligent Optical Link Mapper (iOLM) testing applications. -
Calibration Preservation
Installation of the swap-out connector does not necessitate unit recalibration, maintaining existing calibration dates. -
APC Internal Interface
Features a consistent APC internal connector configuration for optimized signal integrity in single mode applications. -
Optimized Maintenance
Reduces long-term operational costs by avoiding the logistics and service fees associated with factory connector repairs.
Applications
- Fiber optic network maintenance and troubleshooting
- Field testing with MaxTester 700D series OTDRs
- Single mode fiber link certification
Compatibility
OTDR Series- MaxTester 700D Series
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | GP-3207 |
| Fiber Type | Single Mode (SM) |
| Polish | APC |
| Compatibility | 700D OTDR Series |
Frequently Asked Questions
Can I use this connector with my OX1?
No, OX1 Click-Out connectors are not compatible with OTDRs, and 700D OTDR Swap-Out connectors are not compatible with the OX1.
Do I need to recalibrate my OTDR after installing this connector?
No, the unit does not require recalibration after swapping the connector.
How do I know when to replace the connector?
The 700D OTDR series includes an onboard step-by-step diagnosis wizard that indicates the optical output health of the connector.
Does this support iOLM?
Yes, the design enables iOLM support for the connected optical interface.
Is this connector compatible with UPC fiber?
This specific model is the APC SM version. Ensure your test requirements align with APC specifications.
