Overview

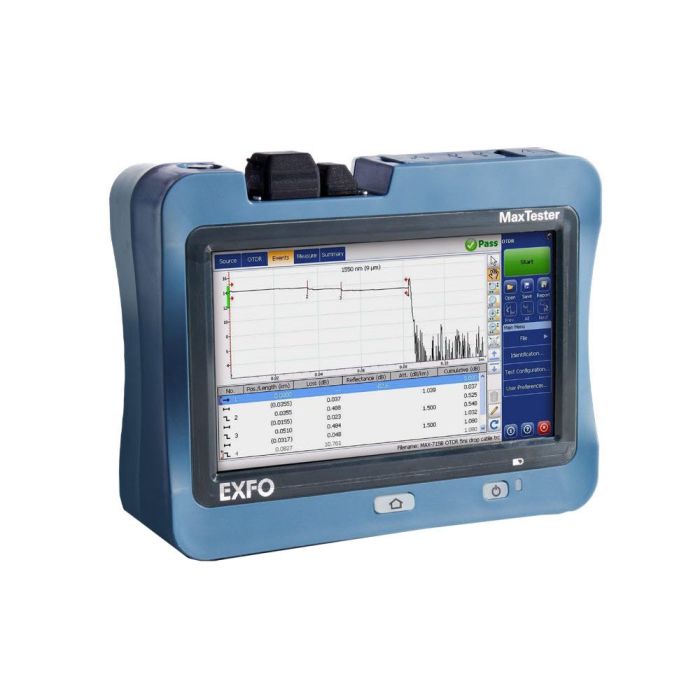

The EXFO MAX715D is a dedicated handheld Optical Time Domain Reflectometer (OTDR) engineered specifically for field technicians working in outside plant environments. This unit features a 1310/1550nm configuration, making it the ideal tool for FTTx last-mile installation, troubleshooting, and short access-network testing. The device is built with a rugged, tablet-inspired design to withstand the demands of daily field use while maintaining high-precision performance.
Equipped with a 7-inch outdoor-enhanced touchscreen—the largest in its class—the MAX715D provides excellent visibility in various lighting conditions. With a 12-hour battery life and rapid iOLM-ready software, technicians can perform multiple acquisitions with one-touch efficiency and receive clear, pass/fail results in an intuitive visual format.
Key Features
-
Large Touchscreen
Features a 7-inch outdoor-enhanced display, providing high readability in direct sunlight. -
High Autonomy
Offers up to 12 hours of battery life to support full-day field operations. -
Advanced Dead Zones
Features an event dead zone of 0.9m and an attenuation dead zone of 3.6m for precise short-link testing. -
High Dynamic Range
Delivers a dynamic range of up to 32 dB, ensuring accurate signal analysis over longer distances. -
Swap-Out Connector
Allows for field-replaceable connectors, reducing downtime and lowering total cost of ownership. -
iOLM Ready
Simplifies complex testing with one-touch multi-acquisition and automated analysis for accurate link mapping. -
Integrated Reporting
Includes onboard PDF reporting and post-processing tools to streamline project documentation.
Applications
- FTTx last-mile installation and troubleshooting
- Short access-network testing
- FTTA fiber-DAS installations
- CATV/HFC network testing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | MAX715D |
| Operating Wavelengths | 1310/1550 nm |
| Dynamic Range | Up to 32 dB |
| Event Dead Zone (EDZ) | 0.9 m |
| Attenuation Dead Zone (ADZ) | 3.6 m |
| Battery Life | 12 Hours |
| Connector Type | SC |
| Warranty | 3-Year |
Frequently Asked Questions
Is this OTDR compatible with iOLM?
Yes, the MAX715D is fully iOLM-ready for automated, one-touch link analysis.
Can I replace the connectors in the field?
Yes, the device uses a swap-out connector interface that allows for quick field replacement to maintain performance.
What is the battery run time?
The unit provides 12 hours of autonomy under normal operating conditions.
Is this device suitable for outdoor environments?
Yes, it features a ruggedized, handheld, tablet-inspired design specifically for outside plant usage and includes an outdoor-enhanced touchscreen.
