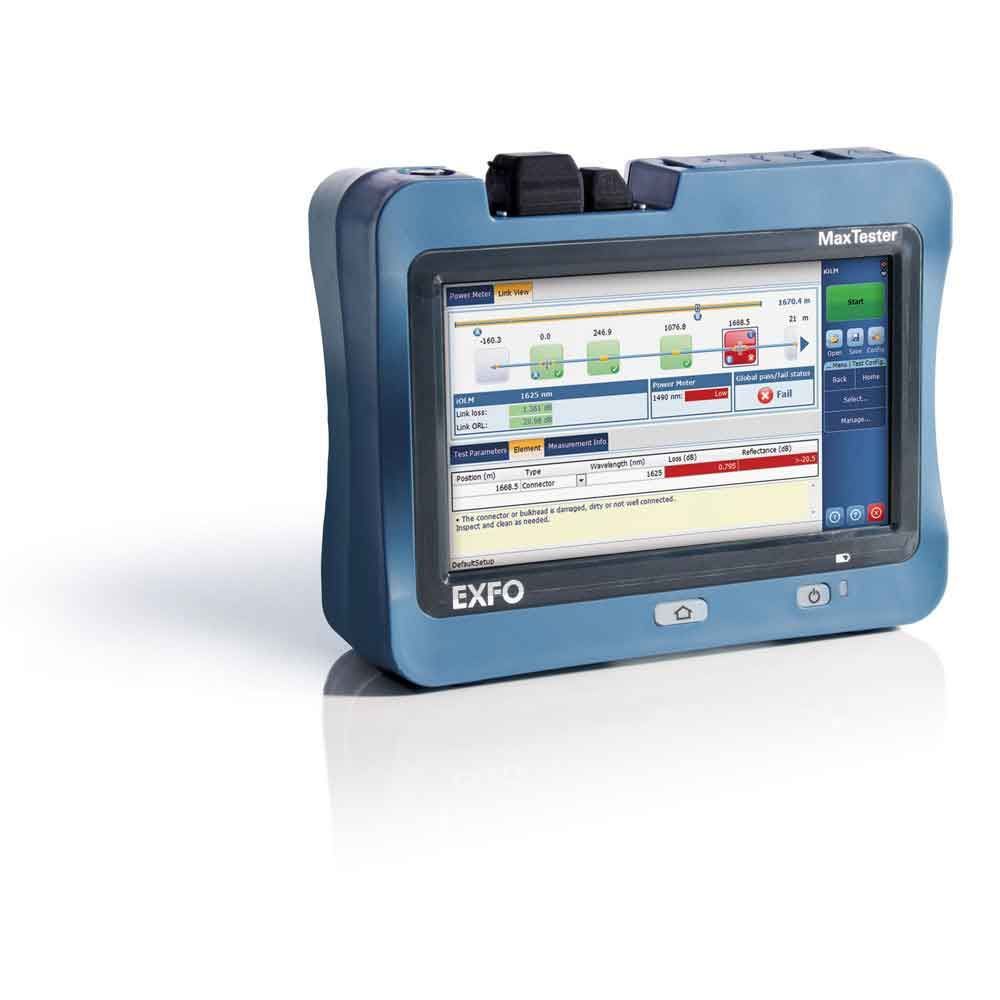

EXFO MAX720D Dedicated Handheld Quad OTDR (850 / 1300 / 1310 / 1550 nm)

SKU: MAX720DQ2QUADOTDREAEUI91EIEUI91VPM2XFOA54BRFGP10061

The EXFO MAX720D is a dedicated handheld quad-wavelength OTDR designed for technicians who work across both multimode and single-mode fiber networks. By combining 850/1300 nm multimode and 1310/1550 nm single-mode testing in a single unit, it removes the need to carry multiple OTDRs into the field.

Built for installation, maintenance, and troubleshooting, the MAX720D delivers fast, reliable OTDR measurements with EXFO’s proven OTDR-only software. Swappable SC UPC and SC APC adapters provide flexibility when working with different connector types, while integrated VFL, optical power meter, and RF capabilities help streamline common fiber testing tasks into one compact tool.

Rugged, portable, and easy to operate, the MAX720D is well suited for daily field use in enterprise, campus, and access network environments.

Specifications

• OTDR Wavelengths:

  • Multimode: 850 nm, 1300 nm

  • Single-mode: 1310 nm, 1550 nm

• Instrument Type: Dedicated handheld quad-wavelength OTDR

• Software: OTDR-only software

• Connector Interfaces:

  • SC UPC adapter (swappable)

  • SC APC adapter (swappable)

• Integrated Functions:

  • Visual Fault Locator (VFL)

  • Optical Power Meter (PM)

  • RF functionality

• Connector Adapter Type: SC

• Power: North American cord set

• Language: English

Included Accessories

• Medium-size soft carrying case

• North American power cord set

• Swappable SC UPC and SC APC connector adapters

Typical Applications

• Installation and acceptance testing of fiber links

• Maintenance and troubleshooting of multimode and single-mode networks

• Enterprise, campus, and access network deployments

• Field technicians needing a single OTDR for mixed fiber environments
