Overview

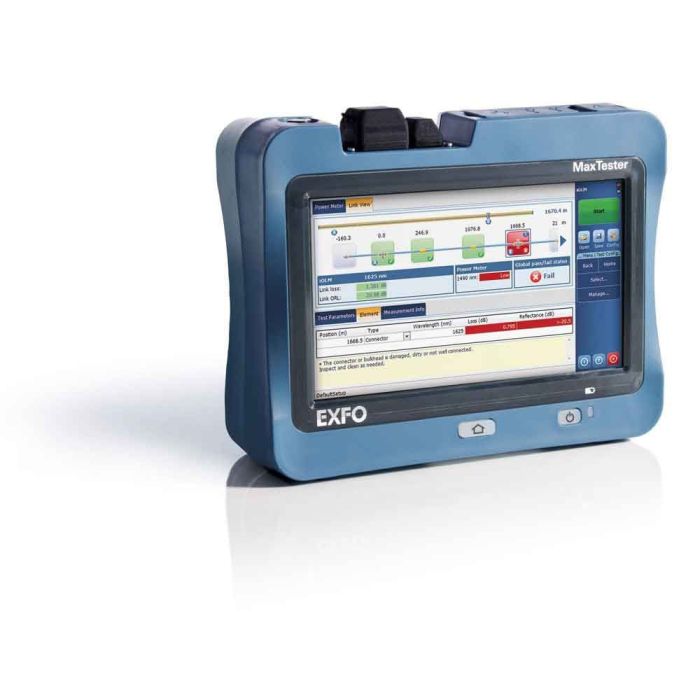

The EXFO MAX730D is a dedicated handheld Optical Time Domain Reflectometer (OTDR) engineered for high-performance fiber optic characterization. Designed with an integrated 1310/1550nm filter, this unit is purpose-built for testing live networks, including FTTx, P2P, and metro deployments.
This OTDR provides high dynamic range and narrow dead zones, allowing technicians to pinpoint faults and characterize splices with precision in dense fiber environments. Its rugged, handheld form factor is optimized for field operations, ensuring reliability and portability for contractors and data center operators conducting critical maintenance and installation tasks.
Key Features
-
High Dynamic Range
Features 39/38/39 dB for extensive reach and detailed signal analysis over long distances. -
Integrated Filtered Port
Allows for in-service testing at 1650 nm without interrupting traffic on live networks. -
Handheld Design
Lightweight and durable construction suitable for demanding field environments. -
Integrated VFL
Built-in Visual Fault Locator enables quick identification of fiber breaks or macro-bends. -
Power Meter Integration
Includes a built-in power meter for comprehensive optical power verification. -
Swappable Connectors
Equipped with swappable SC adapters to accommodate various field connection requirements. -
Intuitive Interface
Software-driven operation simplifies complex testing procedures for faster data analysis.
Applications
- FTTx and PON network testing
- Live fiber network maintenance
- Point-to-point (P2P) link characterization
- Metro network deployment
- Data center fiber auditing
Package Contents
- MAX730D OTDR Unit
- SC Swappable Adapter
- Built-in VFL
- Built-in Power Meter
- North American Cord Set
- Medium Size Soft Carrying Case
- English Language Support
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | MAX730D |
| Operating Wavelengths | 1310/1550/1650 nm |
| Dynamic Range | 39/38/39 dB |
| Connector Type | APC with swappable SC adapter |
| Integrated Features | VFL and Power Meter |
| Language | English |
Frequently Asked Questions
Is this unit capable of testing live fiber?
Yes, the MAX730D features a filtered 1650 nm port specifically designed for in-service testing without disrupting existing traffic.
What is the dynamic range of this OTDR?
The unit provides a dynamic range of 39/38/39 dB.
Are the connectors swappable?
Yes, the unit comes with swappable SC adapters to suit different field needs.
Does this unit include a VFL?
Yes, a Visual Fault Locator is integrated into the device.
What power source does it use?
It comes with a North American standard power cord set.
