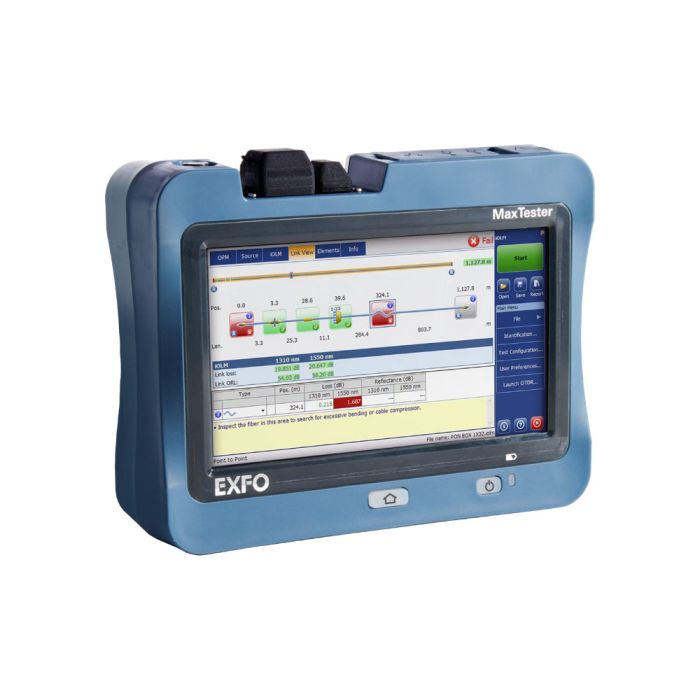

EXFO MAX730D PON/Metro Dedicated Handheld OTDR 1310/1550 Filter 1650

Overview

The EXFO MAX730D is a rugged, handheld Optical Time Domain Reflectometer (OTDR) specifically engineered for outside plant environments. This tablet-inspired device is designed for technicians requiring high-performance testing in FTTx and metro network deployments. Its lightweight, portable form factor, combined with a 12-hour battery life, ensures reliable operation during extended field testing.

Equipped with a 7-inch, outdoor-enhanced touchscreen, the MAX730D provides an intuitive interface for simplified operation. The unit features advanced optical performance, including a dynamic range of up to 39 dB, enabling precise analysis of point-to-point links up to 132 km. With iOLM readiness, it transforms complex trace data into easy-to-read, visual results, significantly reducing the learning curve for field personnel.

Key Features

• 7-inch Outdoor-Enhanced Touchscreen
  Provides clear visibility in bright sunlight and a user-friendly interface for streamlined navigation.
• Dynamic Range Up to 39 dB
  Ensures high-resolution testing for point-to-point links covering distances up to 132 km.
• Short Dead Zones
  Features an EDZ of 0.5 m, ADZ of 2.2 m, and PON dead zone of 30 m for highly accurate event detection.
• 12-Hour Battery Autonomy
  Supports extended field testing cycles without the need for constant recharging.
• iOLM-Ready Technology
  Uses intelligent software to automate complex measurements and present findings in simple, visual formats.
• Swap-Out Connector
  Allows field-replaceable connectivity to maintain performance standards while avoiding costly downtime.
• Integrated Reporting
  Includes onboard PDF report generation for efficient documentation and post-processing.

Applications

• FTTx/PON testing through splitters (up to 1:128)
• FTTx service activation for GPON, EPON, XGS-PON, and 10GE EPON
• Access network and Metro link testing
• Live fiber troubleshooting
• Passive optical LAN (POL) deployments

Technical Specifications

Frequently Asked Questions

What is the maximum distance this unit can test?
The MAX730D is capable of testing point-to-point links up to 132 km.

Does this unit support FTTx in-service testing?
Yes, it supports testing at 1650 nm for in-service FTTx networks.

Is the connector replaceable?
Yes, the unit features a Swap-Out connector design for easy field replacement.

Does it include reporting software?
Yes, it includes built-in PDF reporting and post-processing capabilities.

What is the primary benefit of the iOLM feature?
iOLM simplifies complex trace analysis by automating acquisitions and providing simple, clear go/no-go results.
