Overview

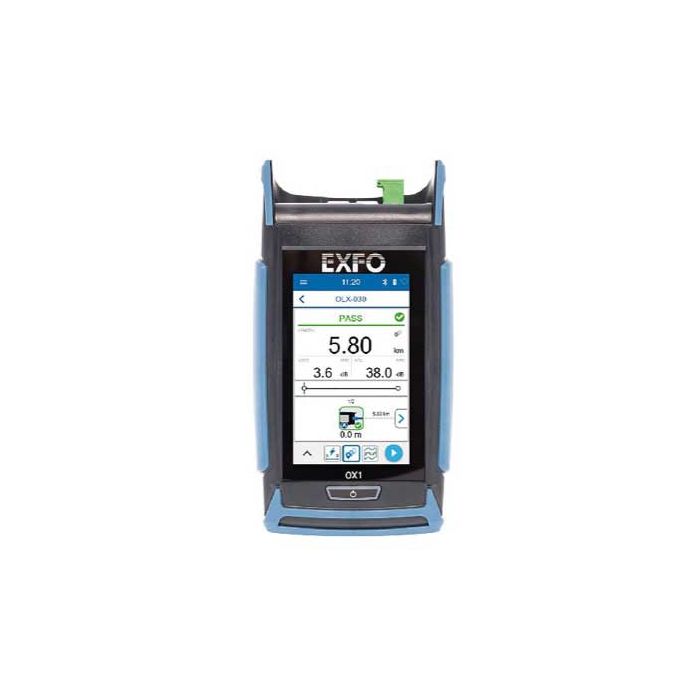

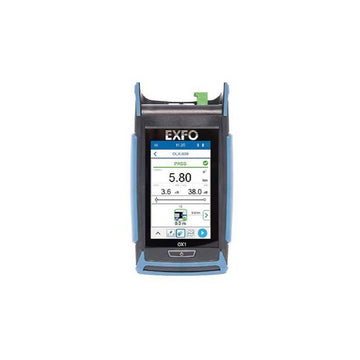

The EXFO Optical Explorer (OX1) is a specialized field-ready maintenance tool designed to verify fiber optic links in seconds. By operating at 1650 nm, this device is optimized for testing live fiber networks without interrupting traffic, making it essential for service providers and network technicians focusing on fault detection and network restoration.
The unit features automated testing sequences that simplify activation procedures, allowing technicians to quickly validate links and automatically perform deeper analysis when potential issues or failures are detected. Its robust design is built for the rigors of field use, helping to improve Quality of Service (QoS) and reduce Mean Time To Repair (MTTR) across telecommunications infrastructure.
Key Features
-
Live Fiber Testing
Operates at 1650 nm, enabling non-intrusive testing on active fiber networks without disrupting data services. -
Automated Link Verification
Tests links in seconds to provide immediate pass/fail results for faster field activation. -
Automated Fault Diagnosis
Automatically initiates deeper exploration and analysis when a potential fiber issue is identified. -
Ruggedized Design
Engineered for portability and resilience in demanding field environments. -
Simplified User Interface
Reduces complexity for technicians, simplifying the activation and troubleshooting process. -
Improved Efficiency
Minimizes downtime and enhances MTTR by streamlining the diagnostic and repair workflow.
Applications
- Maintenance of live fiber optic networks
- FTTx network link verification
- Troubleshooting and fault diagnosis
- Rapid field activation and validation
Package Contents
- Optical Explorer Maintenance 1650 nm (Live) SC APC unit
- GP-2269: USB-A to USB-C cable
- GP-2227: USB AC adapter
- GP-3151: Soft pouch carrying case
- GP-3150: Rechargeable battery
- GP-3157: Wrist strap
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | Optical Explorer |
| Part Number | OX1M88 |
| Operating Wavelength | 1650 nm (Live) |
| Connector Type | SC APC |
Frequently Asked Questions
What does the 1650 nm wavelength indicate?
The 1650 nm wavelength is specifically used for testing live fibers, as it falls outside the standard telecommunications traffic bands, ensuring the test does not interfere with active signals.
Can this device be used on inactive fibers?
While optimized for live maintenance, the device is designed to verify optical links efficiently, including those in maintenance or activation stages.
Does this unit require an external power source?
It comes with a rechargeable battery and a USB AC adapter for convenient charging in the field or in the office.
Is the carrying case included?
Yes, the package includes a soft pouch carrying case for protection and transport.
What is the primary benefit of the automated features?
The automated features allow technicians to verify links in seconds and automatically perform more in-depth exploration only when suspicious events are detected, saving time during network maintenance.
