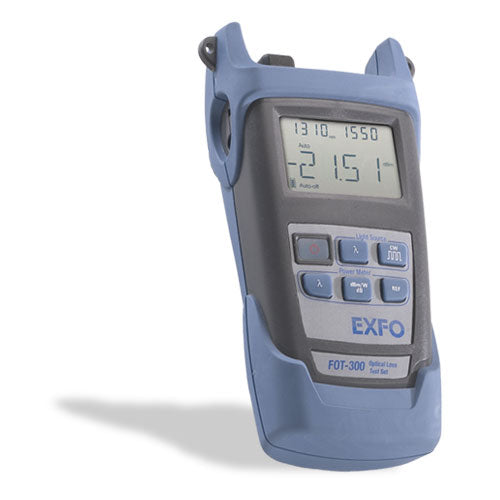

The FOT-300 OLTS has both a built in power meter and light source for bi-directional testing without technicians needing to exchange equipment.

The FOT-300 is the most optimized OLTS on the market; it offers up to three singlemode or two multimode wavelengths on a single port.

• Auto-Wavelength Recognition
• Distant Referencing
• No offset Nulling
• FTTx Ready units available with 1490nm
• Factory Warranty – 3 years

KEY FEATURES
Highly optimized OLTS integrating a power meter port and up to three singlemode sources or two multimode sources on a single port Power autonomy of 260 hours Three-year warranty and recommended calibration interval, for dramatically reduced cost of ownership Ergonomic, eye-catching handheld package

Auto-Wavelength Recognition
The FOT-300’s built-in source can transmit with a wavelength-identification digital encrypted protocol, so that any compatible unit—the FPM-300 Power Meter and the FOT-300’s receiver—can automatically use the proper calibration parameters.

This feature reduces the need for communication between the two technicians and decreases the potential for error.

Distant Referencing
Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.

No offset nulling
Thanks to its unique design, the FOT-300 Optical Loss Test Set reduces measurement time in typical measurement situations, as the need for an offset nulling is eliminated.

FTTx-Ready
EXFO’s FLS-300 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.

SPECIFICATIONS
Model: FOT-302X
Power meter port: GeX
Power range (dBm): 26 to —50
Range displayed (dBm): Down to —50
Number of calibrated wavelengths: 10
Power uncertainty: ±5 % ± 1 nW
Resolution (dB): 0.01g
Automatic offset nulling: Yes
Warmup time (s): 0
Display units: dB/dBm/W
Automatic wavelength recognition: Yes
Screen refresh rate (Hz): 3
Tone detection (Hz): 270, 1k, 2k
Battery life (hours) (typical): 260
Warranty and recommended calibration interval (years): 3
Model: 12D
Central wavelength (nm): 850 ± 25; 1300 + 50/—10
Spectral width (nm): 50/135 ≤5
Output power (dBm):  -20 (62.5/125 µm)
Power stability (dB) m: ±0.1
Battery life (hours): 120
Automatic wavelength recognition: Yes
Tone generation (Hz) : 270, 1k, 2k
Warranty and recommended calibration interval (years): 3

GENERAL SPECIFICATIONS
Size (H x W x D):  185 mm x 100 mm x 55 mm (71/4 in x 4 in x 21/8 in)
Weight: 0.4 kg (0.9 lb)
Temperature operating: —10 °C to 50 °C; (14 °F to 122 °F)
Temperature storage: —40 °C to 70 °C; (—40 °F to 158 °F)
Relative humidity: 0 % to 95 % non-condensing

STANDARD ACCESSORIES

User guide, Certificate of Calibration, instrument stickers in six languages, AC adapter, EUI-XX, connector adapter (FOA-XX), three AA batteries, wrist strap, alcohol cleaning pads.

SAFETY

Complies with 21 CFR 1040.10 except for deviation pursuant to Laser Notice No.50, dated June 24, 2007.

ORDERING INFORMATION

FOT-30X-XX-XX (Model)

FOT-302-12D = Ge detector, 850/1300 nm LED source 62.5/125 µm
FOT-302X-23BL = High-power Ge detector, 1310/1550 nm laser source 9/125 µm
FOT-302X-235BL = High-power Ge detector, 1310/1490/1550 nm laser source 9/125 µm

FOT-30X-XX-XX (Connector)

EI-EUI-28 = UPC/DIN 47256
EI-EUI-76 = UPC/HMS-10/AG
EI-EUI-89 = UPC/FC narrow key
EI-EUI-90 = UPC/ST
EI-EUI-91 = UPC/SC
EI-EUI-95 = UPC/E-2000

FOT-30X-XX-XX (Connector Adapter)

FOA-12 = Biconic
FOA-14 = D4, D4/PC
FOA-16 = SMA/905, SMA/906
FOA-22 = FC (PC/SPC/UPC/APC), NEC-D3
FOA-28 = DIN 47256 (LSA): DIN 47256 (PC/APC)
FOA-32 = ST (PC/SPC/UPC)
FOA-54 = SC (PC/SPC/UPC/APC)
FOA-78 = Radiall EC
FOA-96B = E-2000
FOA-98 = LC
FOA-99 = MU
