EXFO OX1-PRO-I-88-00 Optical Explorer PRO Kit w/Link Mapper

Fosco Connect Part No.: OX1-PRO-I-88-00

  • $ 4,250.00 or

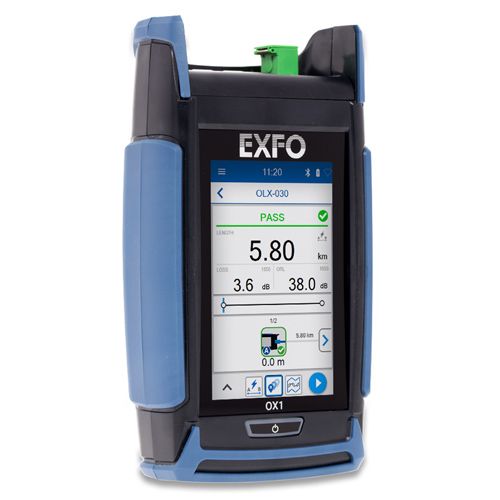

EXFO OX1-PRO-I-88-00 Optical Explorer PRO Kit w/Link Mapper

The EXFO OX1-PRO-I-88-00 Installation Fiber Tester PRO Kit adds Link Mapper to the OX1 Optical Explorer. The Optical Fiber Multimeter (OFM), with 4" touch screen, built-in power checker and light source, is designed for link verification with embedded fault tracking. The main features are:
    - Flash Advisor
    - Fault Explorer
    - Link Mapper: link verification with element mapping
    - Light source/ Power checker with tone detection
    - EXFO Advisor 5-star link quality indicator
    - Click-Out optical connector
    - Ergonomic, robust design
    - Field replaceable battery.

The kit includes the OFM, Click-Out optical connector SC/APC, soft pouch, USB AC adapter, USB-A to USB-C charging cable, rechargeable battery and wrist strap. Optimize your tester experience with a test cord box (sold separately).

Lifetime calibration, no settings required. 3-year warranty.

The Fault Explorer displays insertion loss, optical return loss and fiber length on good links within 5 seconds, as well as tracks suspicious events, locates and identifies issues. The Link Mapper function locates faults by reading their relative position. Flash Advisor 3-second check of link length and quality will provide a diagnosis, based on 5-star rating. The fiber tester can be used as a light source in continuous mode or modulated signal. It can also check power level and loss. Pair the OX1 with TestFlow mobile app for cloud-storage and full documentation. The rechargeable battery provides over 10 hours of continuous operation.



Sold Out
