Overview

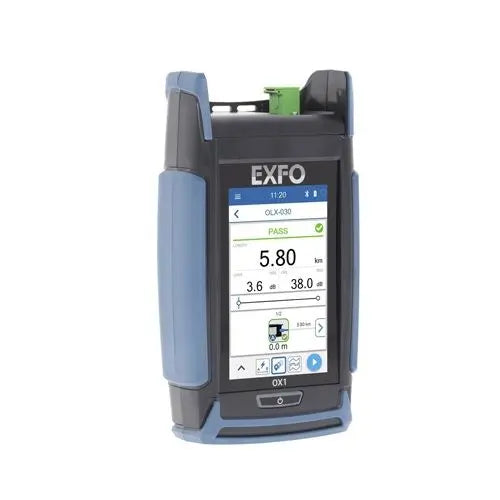

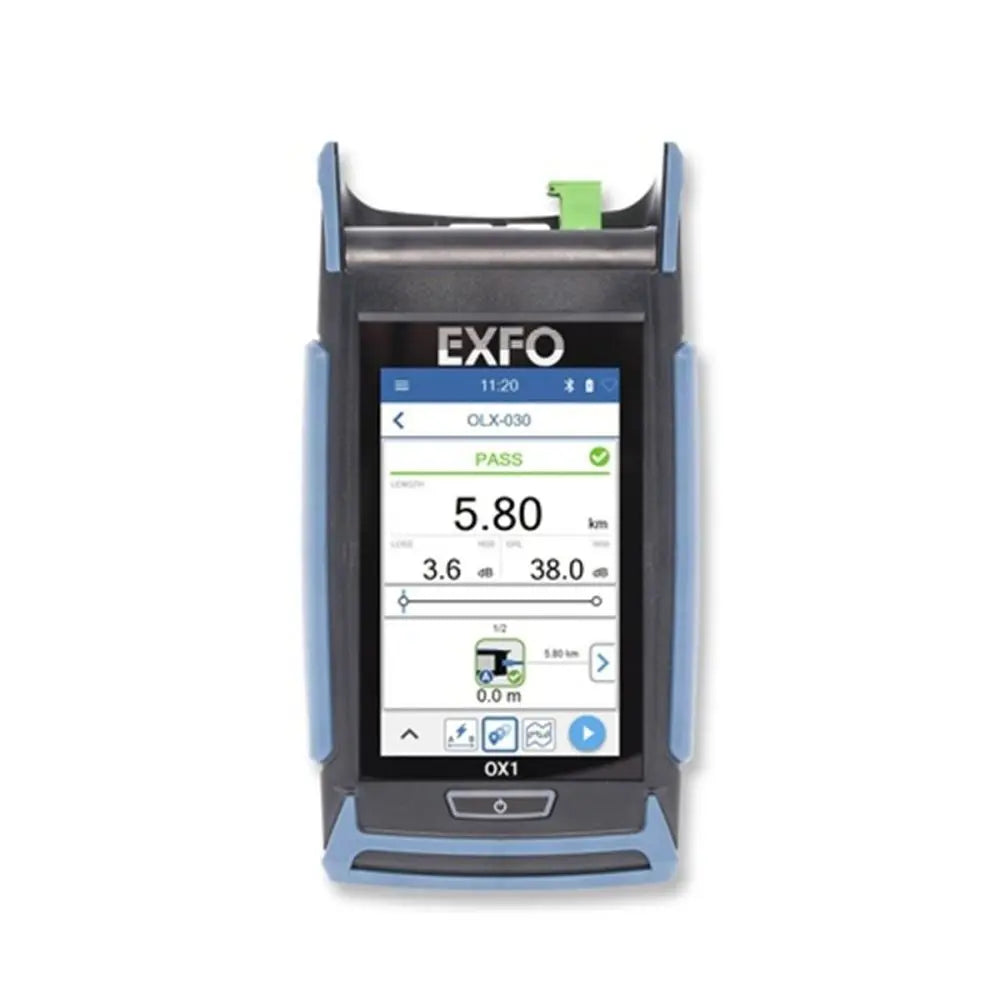

The EXFO OX1-PRO-M-PPM-88 Explorer PRO Kit is an advanced optical fiber multimeter designed for comprehensive link verification, maintenance, and troubleshooting. By integrating an inline dual-band power checker, light source, and intelligent link mapping, this kit allows technicians to efficiently identify faults and verify network performance in a single, streamlined workflow.
Built for field environments, this unit features a 4-inch touch screen for intuitive navigation and precise data analysis. The system simplifies complex fiber testing by providing automated element mapping, splitter detection, and ONT identification. This robust maintenance solution is ideal for high-speed network deployments requiring rapid and reliable link validation.
Key Features
-
Integrated Link Mapping
Automated verification of fiber links with detailed element mapping for quick diagnostic assessment. -
Dual-Band Power Checker
Features an inline power checker and light source with tone detection capabilities for accurate signal verification. -
Embedded Fault Tracking
Includes Flash Advisor and Fault Explorer features to immediately pinpoint link issues. -
Touch Screen Interface
Equipped with a 4-inch display for easy navigation and real-time visualization of fiber link quality. -
High Input Power Tolerance
Supports a maximum input power of 23dBm, suitable for a wide range of network testing scenarios. -
Click-Out Optical Connector
Designed for efficient connection and inspection, simplifying the setup process for technicians. -
Quality Assessment Indicator
Uses the EXFO Advisor 5-star link quality indicator to provide clear, actionable insights into fiber performance. -
Comprehensive Kit Contents
Includes soft carrying case, rechargeable battery, and charging accessories for immediate field use.
Applications
- Fiber link certification and maintenance
- Link verification with automated mapping
- Splitter and ONT detection
- Signal power and tone detection
- Troubleshooting and fault location
Package Contents
- OX1 Optical Fiber Multimeter (OFM)
- Click-Out optical connector (SC/APC)

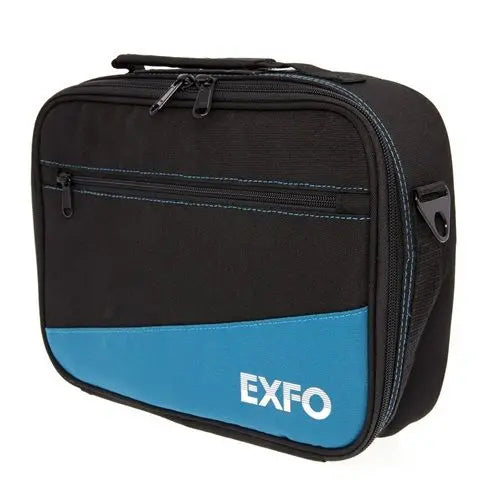

- Soft carrying case
- Rechargeable battery
- USB-A to USB-C charging cable
- USB AC adapter
- Wrist strap
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | OX1-PRO-M-PPM-88-GP-10-071 |
| Display | 4" Touch Screen |
| Max Input Power | 23 dBm |
| Operating Wavelength | 1650 nm (Live) |
| Connector Type | Click-Out (SC/APC) |
Frequently Asked Questions
What is included in the PRO kit?
The kit includes the main OFM unit, SC/APC Click-Out connector, soft pouch, rechargeable battery, USB AC adapter, charging cable, and a wrist strap.
Does this unit support live fiber testing?
Yes, it is designed for testing on live fiber networks at 1650 nm.
Is calibration required for this device?
No, it features lifetime calibration and does not require settings changes for standard operation.
What is the maximum input power capacity?
The device can handle a maximum input power of up to 23 dBm.
Can it detect splitters and ONTs?
Yes, the device is specifically designed to perform splitter detection and ONT detection.
