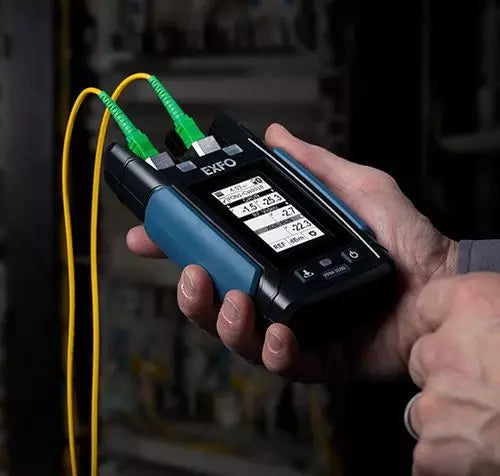

EXFO PPM-350D-SR-EA-EUI-91 Next-Gen PON Power Meter, Single

Overview

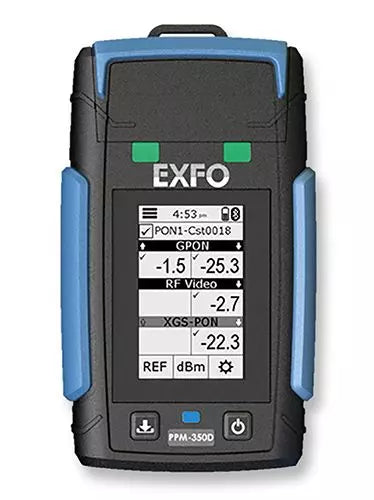

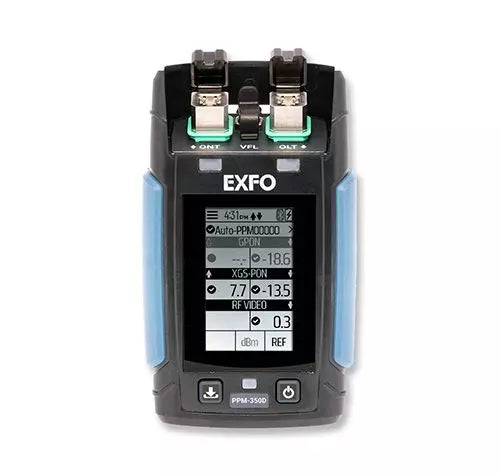

The EXFO PPM-350D is a next-generation PON power meter engineered for testing single-layer GPON and EPON networks. It is specifically designed to support the requirements of modern fiber deployments, including RF overlay, RF video, RF PON, and radio frequency over glass (RFoG) architectures.

This handheld unit features automated network type detection and self-adjusting pass/fail criteria to ensure consistent, error-free testing in field environments. Constructed with an IP54-rated enclosure for durability, the meter provides 8 hours of operation on a single charge of its internal battery.

Key Features

• PON Network Support
  Optimized for GPON and EPON architectures, facilitating testing of legacy and next-gen fiber networks.
• Integrated Pass/Fail Analysis
  Features clear LED indicators for upstream and downstream results to provide immediate field verification.
• Automated Detection
  Automatically identifies the network type under test to minimize manual configuration errors.
• Built-in Connectivity
  Includes integrated Bluetooth and USB interfaces for seamless data transfer and reporting via mobile applications.
• Internal Data Storage
  Capable of storing up to 1000 test results directly on the device for later analysis.
• Touchscreen Interface
  Equipped with an intuitive touchscreen display for simplified navigation and operation.
• IP54 Enclosure
  Designed for use in field environments with protection against dust and water splashing.
• Long Battery Life
  Supports up to 8 hours of continuous operation using the internal rechargeable battery.

Applications

• GPON network testing
• EPON network testing
• RF overlay and RFoG service installation
• Fiber optic maintenance and troubleshooting

Technical Specifications

Frequently Asked Questions

Does this unit support RFoG testing?
Yes, the PPM-350D is designed to support RF overlay, RF video, RF PON, and radio frequency over glass (RFoG) architectures.

Can I store test results on the device?
Yes, the internal memory allows for storage of up to 1000 test results.

How long does the battery last?
The meter provides approximately 8 hours of operating time on a single charge.

Does it require manual configuration for different networks?
No, the unit automatically detects the network type and adjusts the pass/fail criteria accordingly.

What is the enclosure rating?
The device complies with the IP54 standard for protection against dust and splashing water.
