Overview

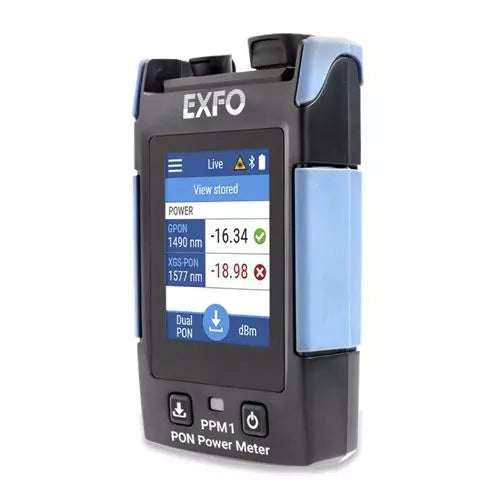

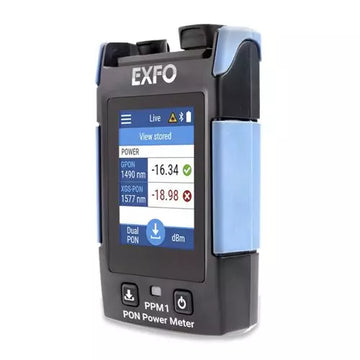

The EXFO PPM1-D-88 is a 1G/10G dual-layer power meter designed for service activation and troubleshooting in GPON, EPON, XGS-PON, and 10G-EPON networks. It also supports testing of RF video and RFoG services. This instrument simplifies field operations by allowing simultaneous measurement of up to two downstream signals using wavelength-selective detection.
Engineered for reliability in outside plant environments, the PPM1-D-88 features a ruggedized casing that provides protection against dust and water ingress. It includes a capacitive touchscreen for intuitive navigation and utilizes PON-aware technology to automatically recommend the correct PON layer for accurate pass/fail assessments, reducing human error during service activation.
Key Features
-
Dual-Layer PON Testing
Capable of measuring up to two downstream signals simultaneously for efficient service validation. -
Wavelength-Selective Design
Features calibrated wavelengths for 1490nm, 1550nm, and 1577nm to cover standard PON signals. -
PON-Aware Technology
Automatically identifies the correct PON layer for testing, ensuring reliable pass/fail results. -

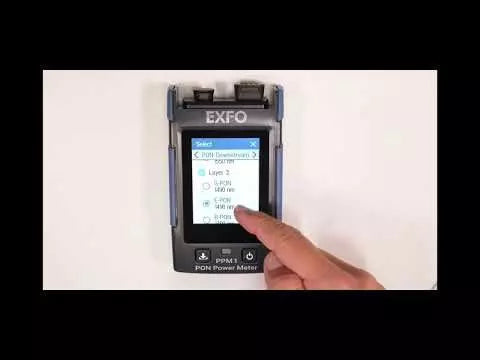

Capacitive Touchscreen
High-visibility color display allows for easy menu navigation and data analysis. -
Rugged Construction
Designed for field use with a durable housing that withstands exposure to dust and moisture. -
Flexible Connectivity
Integrated Bluetooth 5.0 and USB Type C ports for data transfer and connectivity. -
High Storage Capacity
Internal memory capable of saving up to 1,000 test results for comprehensive record keeping.
Applications
- GPON and EPON network service activation
- XGS-PON and 10G-EPON service deployment
- RF video and RFoG signal verification
- Network troubleshooting and maintenance
- Fiber tracing and insertion loss measurement
Package Contents
- EXFO PPM1-D-88 PON Power Meter
- SC/APC Fixed Optical Connector
- LiPo Rechargeable Battery
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | PPM1-D-88 |
| Connector Type | SC/APC (Fixed) |
| Calibrated Wavelengths | 1490nm, 1550nm, 1577nm |
| Power Measurement Range | 15 to -45 dBm |
| Connectivity | Bluetooth 5.0, USB Type C |
| Data Storage | 1000 test results |
| Battery | LiPo Rechargeable |
| Warranty | 1 Year |
Frequently Asked Questions
What technologies does the PPM1-D-88 support?
It supports GPON, EPON, XGS-PON, 10G-EPON, RF video, and RFoG.
Can it test multiple signals at once?
Yes, the PON-layer wavelength-selective design allows for the measurement of up to two downstream signals simultaneously.
What is the power measurement range?
The device measures power levels from 15 to -45 dBm.
Is the connector replaceable?
The unit is equipped with a fixed SC/APC optical connector.
How many test results can the device store?
The internal memory can store up to 1,000 individual test results.
