Overview

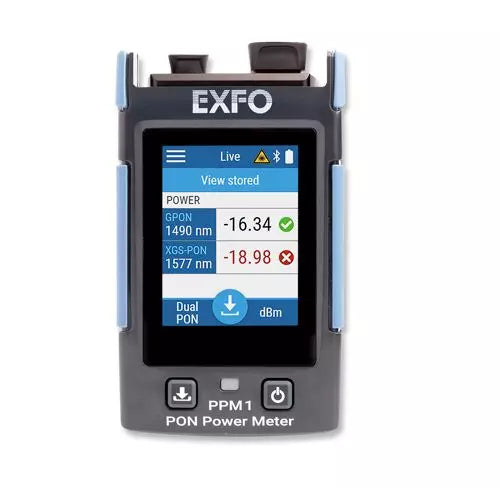

The EXFO PPM1-PRO-D-88 is a professional, dual-layer 1G/10G power meter designed for high-efficiency service activation and network troubleshooting. Engineered for diverse FTTx environments, it supports GPON, EPON, XGS-PON, and 10G-EPON technologies, as well as RF video and RFoG service activation. The device integrates a broadband power meter mode with a built-in Visual Fault Locator (VFL) featuring three modes: continuous, slow blink, and fast blink.
Designed for field use, the unit features a wavelength-selective PON-layer architecture that allows for the simultaneous measurement of two downstream signals. It simplifies the technician's workflow by providing pass/fail assessments based on the PON layer, reducing errors during installation. The ruggedized design includes a high-resolution color touchscreen, Bluetooth 5.0 and USB-C connectivity, and enough onboard storage for 1,000 test results.
Key Features
-
Simultaneous Dual-Downstream Measurement
Wavelength-selective design allows the meter to measure two downstream signals simultaneously for faster validation. -
Automated Pass/Fail Assessment
Provides clear, error-free results by comparing measurements against predefined thresholds. -
Integrated Visual Fault Locator
Features a built-in VFL with continuous, slow blink, and fast blink modes for efficient fiber tracing and troubleshooting. -

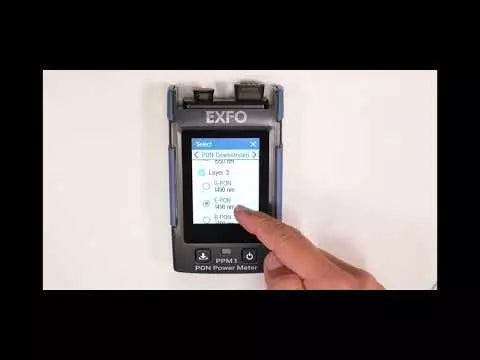

Capacitive Touchscreen Interface
Color display ensures easy navigation and clear visibility of test data in the field. -
Comprehensive Technology Support
Compatible with GPON, EPON, XGS-PON, 10G-EPON, RF video, and RFoG applications. -
High-Capacity Data Storage
Stores up to 1,000 test results locally for documentation and reporting purposes. -
Modern Connectivity
Equipped with Bluetooth 5.0 and USB Type C interfaces for simplified data transfer.
Applications
- GPON and EPON service activation
- XGS-PON and 10G-EPON network deployment
- RF video and RFoG network testing
- Insertion loss measurement
- Fiber tracing and fault detection
Package Contents
- PPM1-PRO-D-88 Service Activation Power Meter
- SC/APC fixed optical connector
- LiPo rechargeable battery
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | PPM1-PRO-D-88 |
| Supported Technologies | GPON, EPON, XGS-PON, 10G-EPON, RF video, RFoG |
| Calibrated Wavelengths | 1310, 1490, 1550, 1577, 1625nm |
| Power Measurement Range | 15 to -45 dBm |
| Connector Type | SC/APC (Fixed) |
| Connectivity | Bluetooth 5.0, USB Type C |
| Storage Capacity | 1,000 test results |
| Power Source | Rechargeable LiPo Battery |
Frequently Asked Questions
What technologies does this power meter support?
The PPM1-PRO-D-88 supports GPON, EPON, XGS-PON, 10G-EPON, RF video, and RFoG service activation.
Does this unit include a visual fault locator?
Yes, it features an integrated VFL with three operational modes: continuous, slow blink, and fast blink.
How many test results can the device store?
The device can store up to 1,000 test results in its internal memory.
What type of connector does the standard model use?
The PPM1-PRO-D-88-GP-2267 model comes with a fixed SC/APC optical connector.
What is the measurement range of the power meter?
The power measurement range is 15 to -45 dBm.
