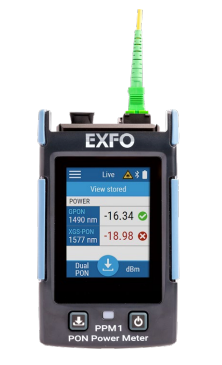

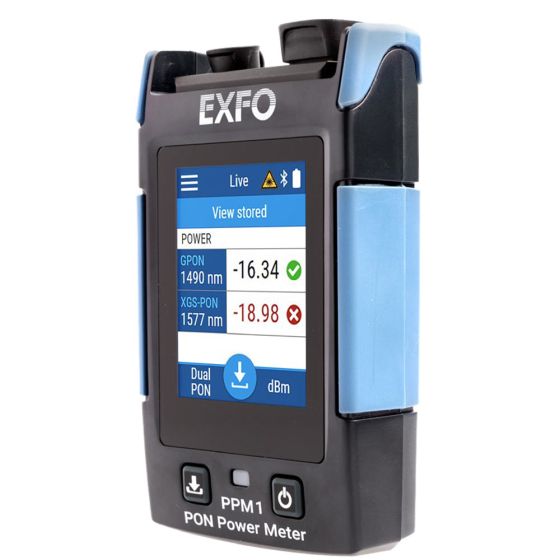

EXFO PPM1-PRO PON Power Meter SC/APC

Next-generation passive optical networks (PONs) will, in most cases, leverage existing outdoor plant infrastructure already in use for PON customers. Adding new services on existing networks translates into overlaying multiple wavelengths on the same physical fiber plant. EXFOs PPM1 is compatible with multiple services including GPON, EPON, XGS-PON and 10G-EPON technologies. Its PON-layer wavelength-selective design allows it to measure up to two downstream signals simultaneously, assessing power level for rapid and reliable service activation.

By leveraging customizable or preset PON layer configurations, the PPM1 notifies the user and recommends the available PON layer for the network under test for proper pass/fail assessment, enabling error-free testing.

The PRO Model is an all in one versatile power meter. On top of the PON mode, the PPM1 PRO features a Broadband Power Meter mode calibrated at five wavelengths with the following capabilities when used in combination with an EXFO light source: auto-wavelength detection and switching, modulated tone detection, and power and loss measurement.

The PRO model includes a VFL that emits light in three different modes (continuous, slow blink and fast blink) to trace fibers and identify breaks and macrobends.

• EXFO Pro PON Power Meter SC/APC

• Simultaneous measurement of up to two downstream signals

• PON technologies supported: GPON, EPON, XG(S)-PON, RF video overlay, RFoG,
• downstream measurement

• Pass/fail status

• Auto-wavelength recognition and switching

• Tone detection

• Broadband power meter

• VFL (3 modes: continuous, slow blink, fast blink)

• 5 calibrated wavelengths

PPM1
SERVICE ACTIVATION PON POWER METER

Versatile dual-layer tester purpose-built for service activation of PON, with added broadband capabilities.

KEY FEATURES AND BENEFITS

• Unique PON-aware™ capability: helps to select the appropriate PON technology under test

• Supports 1G/10G PON networks: G/EPON and XGS-PON/10G-EPON No training required: color touchscreen with a highly intuitive GUI

• Robust and rugged: IP54 design for dust and water protection
• 3-year warranty and calibration interval Visual fault locator (PRO model)
• Broadband power meter mode (PRO model)

APPLICATIONS

• Multilayer FTTx PON downstream service activation

• GPON, EPON, XGS-PON, 10G-EPON, RF video and RFoG service activation

• Network troubleshooting

• Insertion loss measurement

• Fiber tracing

NEXT-GENERATION PON SERVICE ACTIVATION

Next-generation passive optical networks (PONs) will, in most cases, leverage existing outdoor plant infrastructure already in use for PON customers. Adding new services on existing networks translates into overlaying multiple wavelengths on the same physical fiber plant.

A SINGLE POWER METER FOR 1G AND 10G NETWORKS
EXFO’s PPM1 is compatible with multiple services including GPON, EPON, XGS-PON and 10G-EPON technologies. Its PON-layer wavelength-selective design allows it to measure up to two downstream signals simultaneously, assessing power level for rapid and reliable service activation.

PON-AWARE TECHNOLOGY
By leveraging customizable or preset PON layer configurations, the PPM1 notifies the user and recommends the available PON layer for the network under test for proper pass/fail assessment, enabling error-free testing.

PRO MODEL: ALL-IN-ONE VERSATILE POWER METER
Mode for broadband
On top of the PON mode, the PPM1 PRO features a Broadband Power Meter mode calibrated at five wavelengths with the following capabilities when used in combination with an EXFO light source: auto-wavelength detection and switching, modulated tone detection, power and loss measurement.

Visual fault locator (VFL)
The PRO model includes a VFL that emits light in three different modes (continuous, slow blink and fast blink) to trace fibers and identify breaks and macrobends.

LOW COST OF OWNERSHIP
Designed for extended use in the field, the PPM1 delivers best-in-class optical performances—day in, day out. Backed by EXFO’s track record of device robustness and its IP54 design for water and dust protection, this tester is an extremely reliable and long‑lasting investment.

PPM1-PRO

In addition to PPM1 capabilities, the PRO model features:
Auto-wavelength recognition and switching, Tone detection,  Broadband power meter,  VFL (3 modes: continuous, slow blink, fast blink) 5 calibrated wavelengths.

SPECIFICATIONS

FTTX (PON MODE)
PPM1-PRO-D
Spectral passband (nm): 1490 ±10, 1550 ±10, 1577 ±10
Calibrated wavelengths (nm): 1310, 1490, 1550, 1577, 1625
Power measurement range (dB): 15 to –45
Power uncertainty (dB):  0.5
ORL(dB):  55
Visual fault locator: Yes (3 modes—continuous, 1 Hz, 4 Hz)

BROADBAND POWER METER SPECIFICATIONS (PPM1-PRO-D ONLY)
PPM1-PRO-D
Wavelength measurement range(nm): 1260 to 1469, 1481 to 1499, 1511 to 1625
Calibrated wavelengths(nm): 1310, 1490, 1550, 1577, 1625
Power measurement range(dB): 15 to –45
Power uncertainty(dB): 0.5
Auto-wavelength recognition and switching: Yes
Tone detection: 270Hz, 330Hz, 1kHz, 2kHz

GENERAL SPECIFICATIONS
Dimension: 133 mm x 78 mm x 30 mm (5 ¼ in x 3 in x 1 1 /8 in)
Display size: 71 mm (2.8 in)
Weight (with battery): 225 g (0.5 lb)
Display type: Color display with capacitive touchscreen
Interface: languages Chinese (Simplified and Traditional), English, French, German, Spanish, Italian
Battery charging: < 2h when unit is off; USB Type C charging port connector; AC/DC charger/adapter input: 100 - 240 V; 50/60 Hz; 1.0 A max, output: 5 V; 2 A
Battery autonomy:  10 h (continuous use at brightness 50%, BLE: ON, AUTO: OFF)
Interfaces:  Bluetooth 5.0 with BLE; USB Type C
Storage capacity: 1000 test results for local reading
Warranty: 3 years
Calibration interval: 3 years
Temperature Storage:–40 °C to 70 °C (–40 °F to 158 °F)
Temperature Operating: –10 °C to 50 °C (14 °F to 122 °F)

VISUAL FAULT LOCATOR (VFL) (PPM1-PRO ONLY)

Laser, 650 nm ± 10 nm; CW/Modulate 1 Hz/Modulate 4 Hz; Typical Pout in 62.5/125 μm: > –1.5 dBm (0.7 mW); Laser safety: Class 2

ACCESSORIES
Carrying pouches
GP-2267 Soft pouch carrying case
Wrist strap
GP-3157 Wrist strap
Power adapters
GP-2227 USB AC adapter (includes interchangeable plugs for North America, Europe, UK and Australia)
GP-2269 USB-A to USB-C cable
Battery
GP-2295 Rechargeable battery
Connector adapter
GP-1008 VFL adapter for 1.25 mm ferrule

ORDERING INFORMATION

PPM1-XX-XX

Configurations
D= Dual PON layer
PRO-D = Pro configuration with dual PON layer

Connectors
PPM1-XX-XX 88 = SC/APC connector
