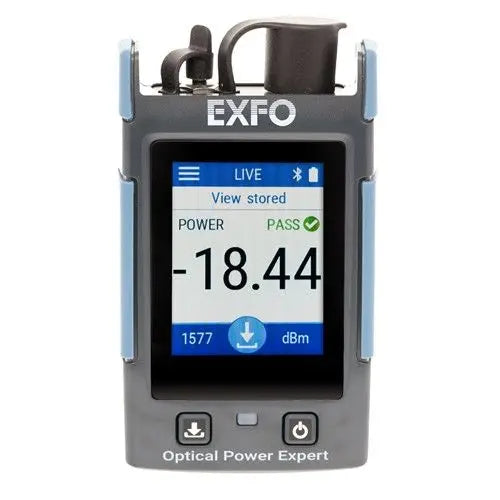

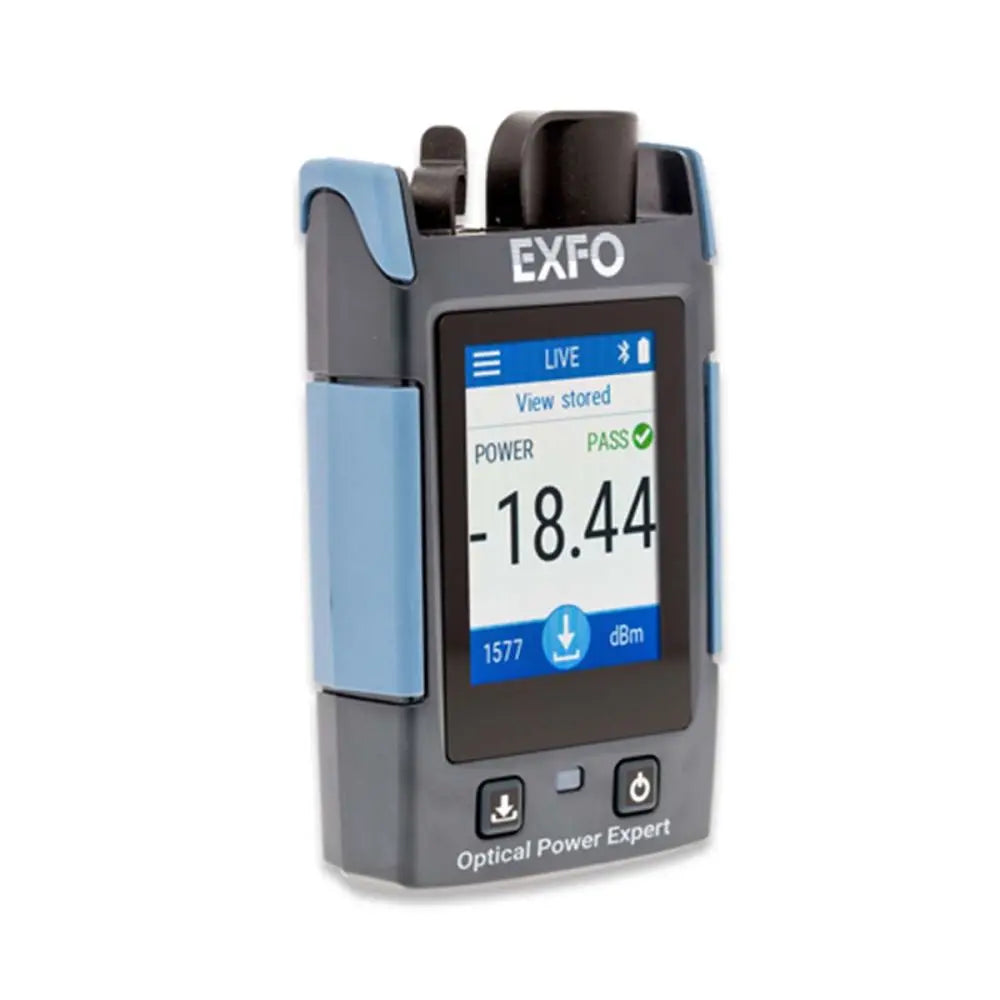

EXFO PX1-H-PRO-FOAS-U25 High-Power Pro Optical Power Expert

Overview

The EXFO PX1-H-PRO-FOAS-U25 is a professional-grade, high-power optical power meter designed for precise network testing and troubleshooting. This device is engineered for fiber tracing, measurement of absolute power (dBm), and insertion loss (dB) testing in demanding field environments.

Equipped with a high-power measurement range and integrated Bluetooth connectivity, this meter supports efficient data management and analysis. It features a responsive color touchscreen and an intuitive graphical user interface, allowing for instant boot-up and streamlined operation. The unit also includes an integrated visual fault locator with multiple operational modes, making it a versatile tool for technicians and network engineers.

Key Features

• High Power Range
  Supports measurements from 26 dBm to -50 dBm for versatility in high-power applications.
• Auto-Wavelength Recognition
  Automatically detects and switches wavelengths to reduce testing time and prevent manual errors.
• Visual Fault Locator (VFL)
  Features continuous, slow blink, and fast blink modes to quickly identify fiber breaks or faults.
• Bluetooth Connectivity
  Enables seamless synchronization and data transmission for efficient field reporting.
• Rugged Design
  IP54-rated enclosure provides protection against dust and water ingress in outdoor environments.
• Intuitive Interface
  Color touchscreen and simplified GUI facilitate rapid configuration and measurement.
• Large Data Storage
  Internal memory allows for the storage of up to 100 test results.
• Long Battery Life
  Rechargeable battery delivers up to 8 hours of continuous operation for all-day field use.

Applications

• Absolute optical power measurement (dBm)
• Insertion loss testing (dB)
• Fiber tracing and identification
• Visual fault location in optical networks

Package Contents

• PX1-H-PRO-FOAS-U25 High-Power Pro Optical Power Expert
• USB cable
• AC USB charger
• Calibration certificate
• Universal 2.5mm connector adapter
• Soft pouch

Technical Specifications

Frequently Asked Questions

What is the primary measurement range of this device?
The PX1-H-PRO-FOAS-U25 measures from 26 dBm down to -50 dBm.

Does it support auto-wavelength detection?
Yes, the unit features automatic wavelength recognition and switching.

Is the battery user-rechargeable?
Yes, the device comes with an AC USB charger and provides 8 hours of use on a single charge.

How many test results can the device store?
It has an internal memory capacity for 100 test results.

What is included in the box?
The package includes the meter, a USB cable, AC charger, calibration certificate, 2.5mm universal adapter, and a soft pouch.
