Overview
The EXFO PX1 Pro PON-INSTALL-SINGLE Network Kit is a comprehensive fiber testing and inspection solution designed for network installation and maintenance professionals. This kit combines a high-performance optical power meter with an automated connector inspection system, providing the essential tools to measure signal integrity and verify connector end-face cleanliness in a single, portable package.
Equipped for versatility, the PX1 Pro Optical Power Expert features 45 calibrated wavelengths, auto-wavelength recognition, and integrated visual fault location (VFL) with three modes. The FIP-200 inspection system ensures compliance with industry standards by providing automated connector cleanliness assessments in just seven seconds, reducing the risk of signal degradation and network downtime in critical fiber infrastructure environments.
Key Features
-
Automated Inspection
The FIP-200 Connector Checker provides fast, objective end-face assessment in 7 seconds to minimize human error. -
Broad Wavelength Calibration
Includes 45 calibrated wavelengths to ensure precise power measurement across diverse network architectures. -
Visual Fault Locator (VFL)
Features integrated VFL functionality with three operating modes (continuous, 1Hz, 4Hz) for efficient fiber tracing. -
Bluetooth Connectivity
Allows for wireless data communication and remote monitoring for streamlined testing workflows. -
Auto-Wavelength Recognition
Detects and switches to the correct wavelength automatically, reducing setup time and preventing configuration errors. -
Comprehensive Inspection Tips
Supplied with specialized tips for various industry-standard connectors including OptiTap, Pushlok, and DLX. -
Portable Design
Housed in a durable carry case with dedicated storage for all components, ideal for field technicians.
Applications
- Fiber network construction and installation
- FTTH (Fiber to the Home) and PON testing
- Absolute optical power (dBm) measurement
- Insertion loss (dB) testing
- Fiber tracing and fault identification
- Connector inspection and certification

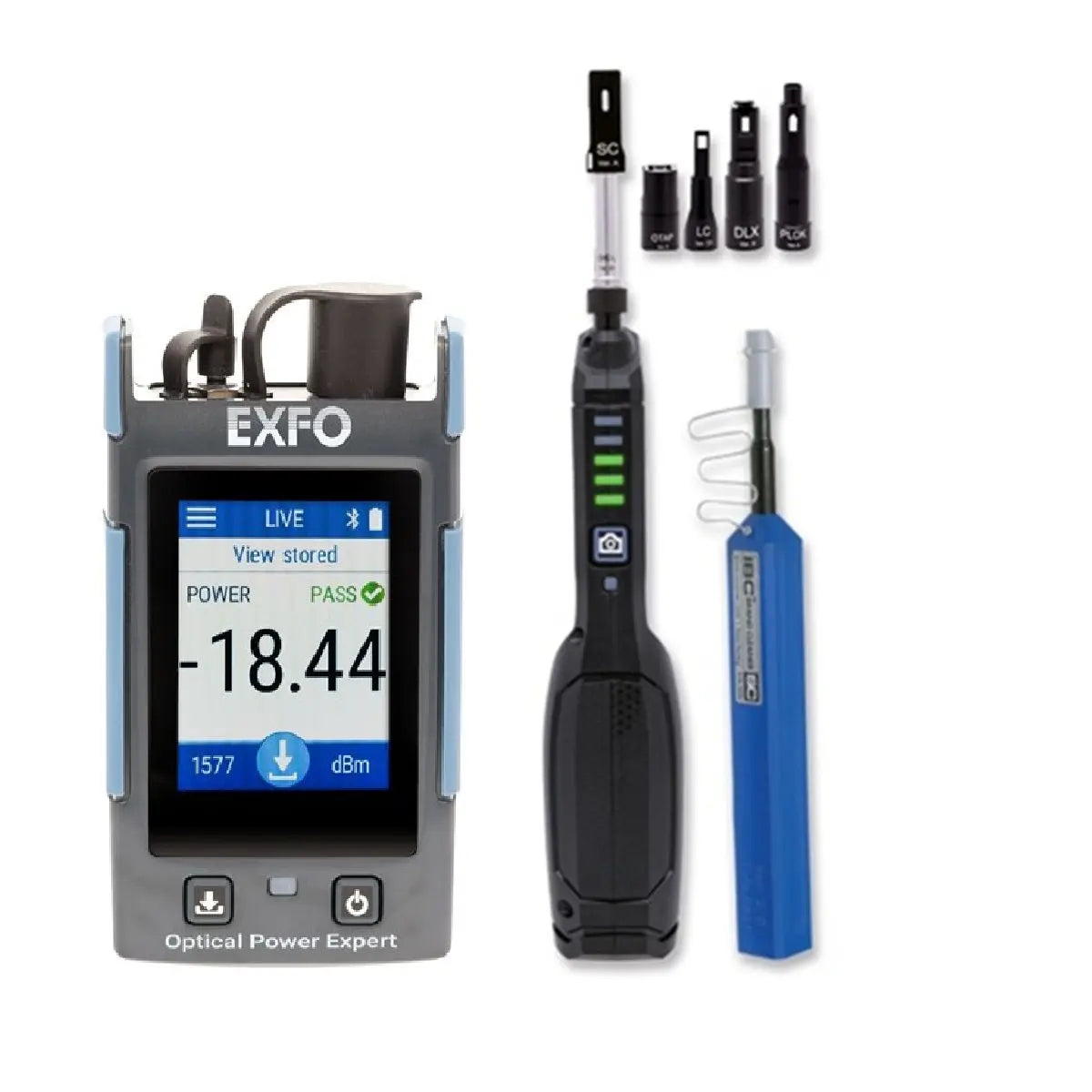

Package Contents

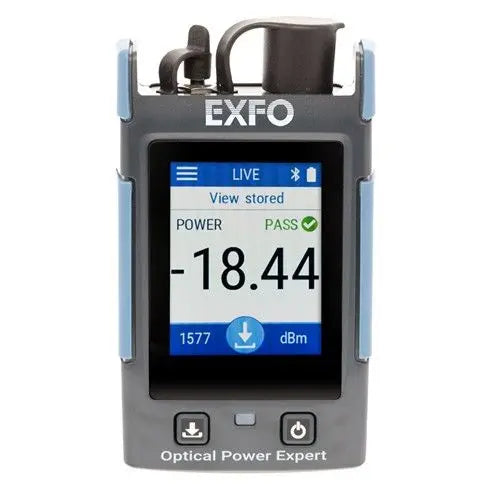

- PX1-PRO-S-FOAS-54-GP-2267 Optical Power Meter
- FIP-200-KIT-2 Fiber Inspection Kit

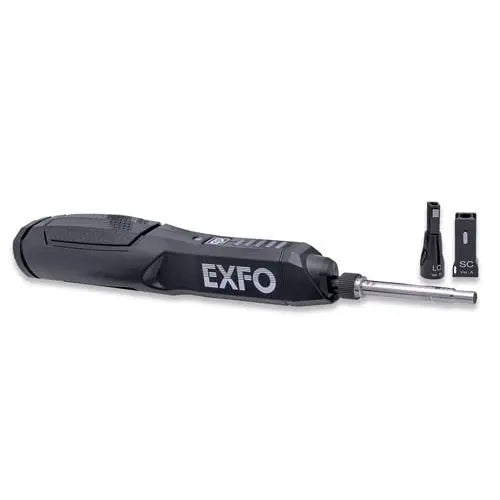

- FIP-200 Connector Checker
- OHC-L Long-reach optical head
- CTIP-SC and CTIP-LC inspection tips

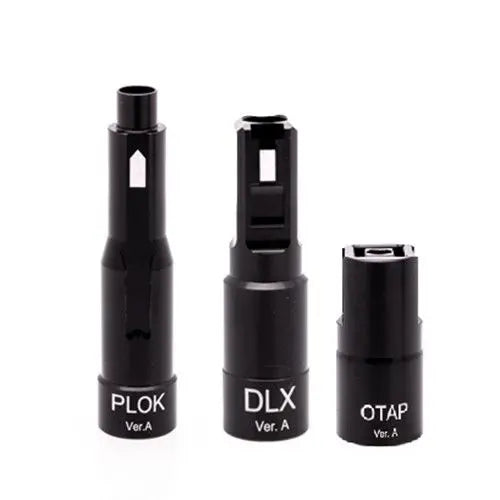

- CTIP-OTAP (Corning OptiTap) tip
- CTIP-PLOK (Corning Pushlok) tip
- CTIP-DLX (Commscope DLX) tip

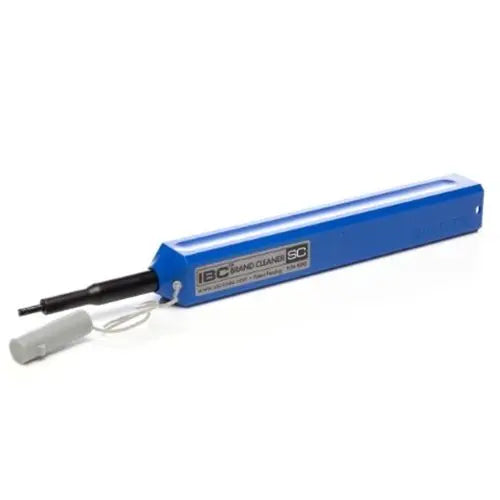

- 2.5mm IBC Brand cleaner
- SC and LC adapters for patch cord inspection
- USB-A to USB-C cable (1m)
- Protective cap and cord assembly
- Soft carrying case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | SPC882 (Kit) |
| Power Meter Model | PX1-PRO-S-FOAS-54-GP-2267 |
| Inspection Kit | FIP-200-KIT-2 |
| Power Range | -70 dBm to 10 dBm |
| Calibrated Wavelengths | 45 |
| VFL Modes | Continuous, 1Hz, 4Hz |
| Connectivity | Bluetooth, USB-C |
Frequently Asked Questions
What is the primary function of the PX1 Pro meter?
It is used for measuring absolute power (dBm), calculating insertion loss (dB), and identifying fibers using the integrated VFL.
Does the kit include tips for hardened fiber connectors?
Yes, the kit includes tips for OptiTap, Pushlok, and DLX connectors.
How long does it take for the FIP-200 to assess a connector?
The FIP-200 provides an automated assessment of connector cleanliness in approximately 7 seconds.
Can the meter identify wavelengths automatically?
Yes, the PX1 Pro features automatic wavelength recognition and switching capabilities.
Is the USB cable included for data transfer?
Yes, a 1-meter USB-A to USB-C (USB 2.0) cable is included for connectivity.
