Overview

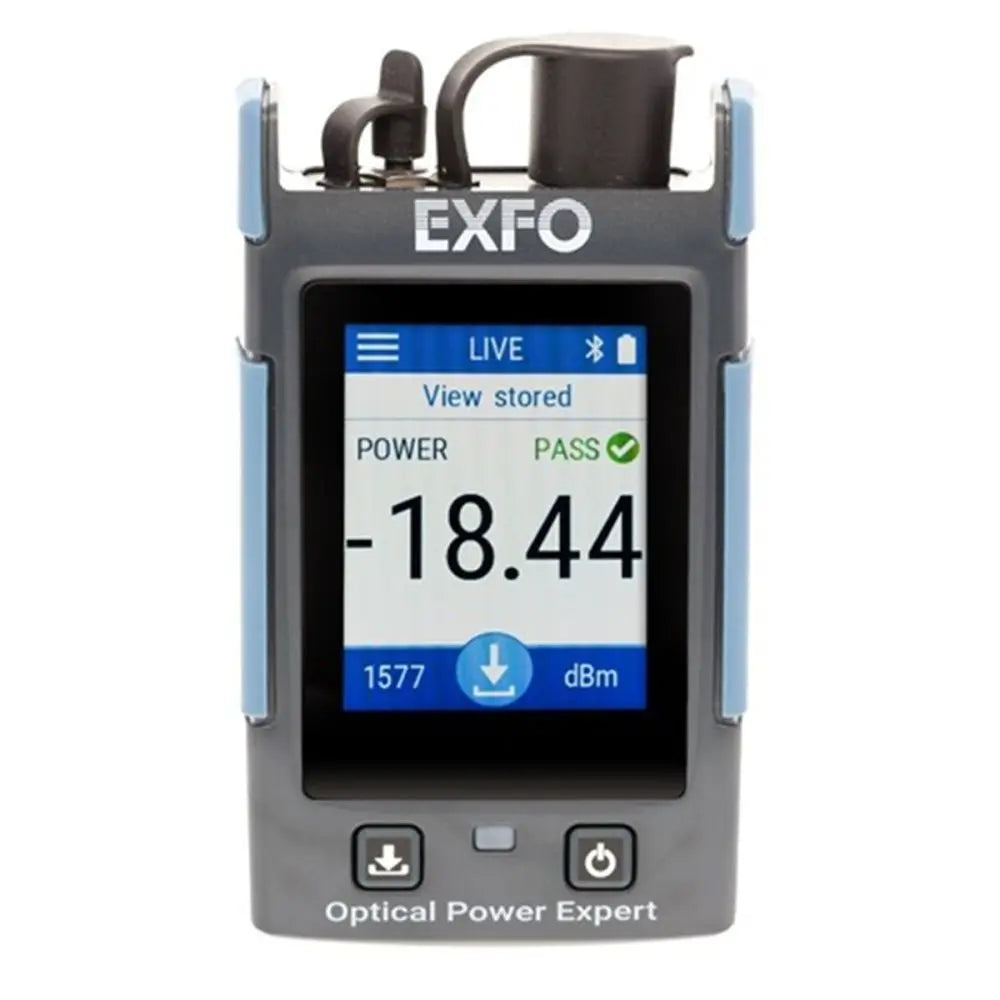

The EXFO PX1-PRO-S-FOAS-54 Standard Pro Optical Power Expert is a high-performance, ruggedized optical power meter designed for field technicians performing essential fiber network testing. This tool facilitates precise measurement of absolute power (dBm) and insertion loss (dB), making it an ideal choice for service activation, network maintenance, and fiber characterization in a wide range of operating environments.
Engineered for productivity, the PX1 Pro features a user-friendly color touchscreen with an intuitive graphical interface. It includes integrated Bluetooth connectivity for seamless data management and features instant boot-up to minimize downtime. With its built-in visual fault locator (VFL), the device offers three distinct modes—continuous, slow blink, and fast blink—to quickly identify and isolate fiber issues in the field.
Key Features
-
Auto-Wavelength Recognition
Automatically detects and switches wavelengths for faster, error-free testing. -
Color Touchscreen Interface
Provides an intuitive user experience for easier navigation and test setup. -
Integrated Visual Fault Locator
Includes a built-in VFL with three operation modes to quickly identify fiber breaks or faults. -
Bluetooth Connectivity
Enables convenient data management and integration with other devices. -
Rugged Design
IP54-rated housing provides durability against dust and water in harsh field conditions. -
High-Capacity Memory
Stores up to 100 test results for efficient on-site documentation. -
Instant Boot-Up
Eliminates warm-up time, allowing technicians to start testing immediately.
Applications
- Fiber network service activation
- Fiber tracing and fault detection
- Absolute optical power measurement
- Insertion loss verification
Package Contents
- EXFO PX1-PRO-S-FOAS-54 Optical Power Expert
- USB Cable
- AC USB Charger
- SC Connector Adapter
- Calibration Certificate
- Soft Carry Pouch
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | PX1-PRO-S-FOAS-54-GP-2267 |
| Power Measurement Range | 10 dBm to -70 dBm |
| Wavelength Range | 780 nm to 1650 nm |
| Calibrated Wavelengths | 45 |
| Storage Capacity | 100 test results |
| Battery Life | 8 hours continuous |
| Rating | IP54 |
Frequently Asked Questions
What is the primary purpose of the PX1-PRO-S-FOAS-54?
It is designed for measuring absolute optical power (dBm) and performing insertion loss (dB) testing in fiber optic networks.
Does it support auto-wavelength detection?
Yes, the device features automatic wavelength recognition and switching to streamline testing workflows.
What is the included VFL used for?
The visual fault locator is used for fiber tracing and identifying fiber-related issues, with three operational blinking modes.
Is this unit ruggedized for outdoor use?
Yes, the unit is IP54-rated, providing protection against dust and moisture ingress.
How long does the battery last?
The integrated rechargeable battery provides approximately 8 hours of continuous operation.
