Overview

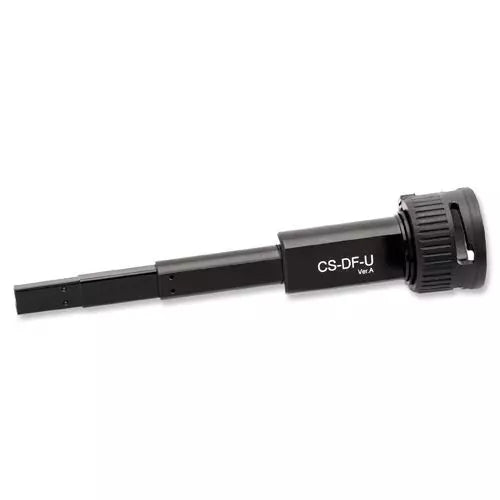

The EXFO STIP-CS-DF-U SmarTip is a specialized inspection accessory designed for use with the EXFO FIP-500 fiber inspection scope. It enables the efficient, simultaneous inspection of both ferrules within CS duplex bulkhead connectors, streamlining the certification process for high-density fiber deployments.
Engineered to ensure accurate assessment of fiber end-face quality, this tip is specifically configured for CS/UPC duplex interfaces. It is an essential tool for technicians managing high-density network environments where space is limited and connector density is high.
Key Features
-
Simultaneous Duplex Inspection
Allows for the viewing of both ferrules in a duplex connector at the same time, reducing testing time. -
Optimized for CS Connectors
Precision-engineered to fit CS/UPC duplex bulkhead connectors for reliable connectivity analysis. -
High-Density Compatibility
Designed specifically for use in high-density applications where standard inspection tips may not provide adequate clearance. -
EXFO FIP-500 Integration
Fully compatible with the EXFO FIP-500 fiber inspection scope ecosystem. -
Durable Construction
Built to withstand the rigors of field use in data center and telecommunications environments. -
Streamlined Workflow
Ensures rapid, repeatable, and accurate fiber inspection results for installers and network engineers.
Applications
- High-density data center fiber deployments
- Telecommunications network installation and maintenance
- CS/UPC connector end-face inspection
- Fiber optic performance verification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | STIP-CS-DF-U |
| Connector Type | CS/UPC Duplex |
| Application | Bulkhead Connector |
Frequently Asked Questions
What is the primary purpose of the STIP-CS-DF-U SmarTip?
It is designed to inspect both ferrules of a CS/UPC duplex connector simultaneously when used with an EXFO FIP-500 inspection scope.
Is this tip compatible with single-fiber inspection scopes?
No, this tip is specifically designed for the FIP-500 multi-fiber inspection scope series.
What adapter is required to use this tip?
It is designed to be used in conjunction with the RAC-21-110 CS duplex connector bulkhead adapter.
Is this tip suitable for high-density environments?
Yes, it is explicitly designed for use in high-density applications where CS duplex connectors are utilized.
Can this tip be used for APC connectors?
No, this model (STIP-CS-DF-U) is configured for UPC (Ultra Physical Contact) connectors.
