EXFO STIP-LC-K FIP-500 SmarTip LC Tip Kit

Overview

The EXFO STIP-LC-K FIP-500 SmarTip LC Tip Kit is an essential inspection accessory package designed specifically for use with the FIP-500 fiber inspection scope. It provides technicians with the necessary components to inspect both bulkhead connectors and patch cords for common LC fiber configurations.

This kit ensures consistent, high-quality connectivity by enabling rapid, accurate fiber end-face inspection. The set includes a comprehensive selection of SmarTips, specifically configured for LC/UPC and LC/APC interfaces, allowing for streamlined testing workflows in data centers, central offices, and enterprise network environments.

Key Features

• LC/UPC Bulkhead Tip
  Optimized for inspecting LC/UPC bulkhead connectors, ensuring clean end-faces for improved signal integrity.
• LC/APC Bulkhead Tip
  Designed for inspecting LC/APC angled bulkhead connectors to maintain precision and minimize back-reflection.
• Universal 1.25 mm/UPC Patchcord Tip
  Enables versatile inspection of 1.25 mm ferrules on UPC patch cords.
• Universal 1.25 mm/APC Patchcord Tip
  Allows for quick inspection of 1.25 mm ferrules on APC patch cords, supporting various field testing needs.
• FIP-500 Compatibility
  Engineered for seamless integration with the FIP-500 automated fiber inspection scope system.
• Modular Design
  The SmarTip system allows for rapid swapping of tips, reducing downtime during multi-fiber network troubleshooting.

Applications

• Data center fiber link inspection
• Central office network maintenance
• Enterprise LAN/WAN infrastructure testing
• LC connector end-face quality verification

Package Contents

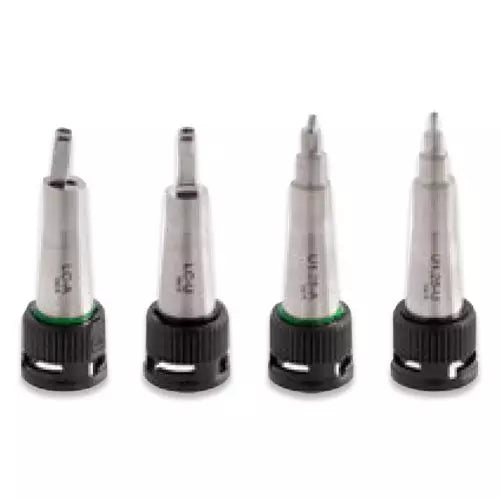

• 1x STIP-LC-U (LC/UPC bulkhead connector tip)
• 1x STIP-LC-A (LC/APC bulkhead connector tip)
• 1x STIP-U1.25-U (Universal 1.25 mm/UPC patchcord adapter tip)
• 1x STIP-U1.25-A (Universal 1.25 mm/APC patchcord adapter tip)

Compatibility

• FIP-500

Technical Specifications

Frequently Asked Questions

What does the STIP-LC-K kit include?
The kit includes four SmarTips: STIP-LC-U (LC/UPC bulkhead), STIP-LC-A (LC/APC bulkhead), STIP-U1.25-U (Universal 1.25 mm/UPC), and STIP-U1.25-A (Universal 1.25 mm/APC).

Is this kit compatible with FIP-400 scopes?
This kit is specifically designed for the FIP-500 inspection system. Please refer to the provided guide on tips and adapters for specific cross-compatibility inquiries.

Can I use these tips for MPO connectors?
No, this kit is specifically for LC interface connectors. MPO inspection requires MPO-specific SmarTips.

Are these tips hot-swappable?
Yes, the SmarTip system is designed to be easily and quickly changed on the FIP-500 probe to accommodate different connector types efficiently.

What is the primary use for the universal tips?
The universal 1.25 mm tips are used for inspecting the male connector ferrules on 1.25 mm patch cords.
