Overview

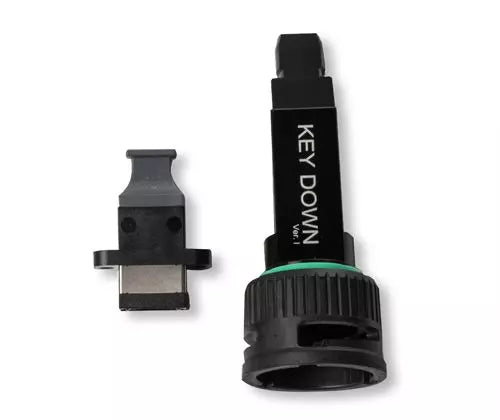

The EXFO STIP-MPO-A is a dedicated SmarTip probe adapter designed for the FIP-500 fiber inspection scope. It is engineered specifically for the inspection of MPO/APC connectors, facilitating rapid and accurate analysis of multi-fiber endfaces.
This tip supports various MPO configurations, including 8, 12, and 16-fiber arrays, with the capacity to inspect up to 4 rows of fiber. By ensuring precise alignment with the MPO interface, this accessory enables the FIP-500 to perform automated pass/fail analysis according to industry standards, supporting critical inspection workflows in data center and high-density network environments.
Key Features
-
Compatibility
Optimized for use with the EXFO FIP-500 fiber inspection scope platform. -
Connector Support
Engineered specifically for MPO/APC (angled physical contact) connectors. -
Fiber Capacity
Supports MPO configurations of 8, 12, and 16 fibers. -
Multi-Row Capability
Accommodates up to 4 rows of fibers for high-density connector inspection. -
Automated Analysis
Works with FIP-500 software to deliver consistent, objective pass/fail results. -
Field Durability
Constructed to maintain alignment and performance in active fiber testing environments.
Applications
- High-density data center cabling inspection
- MPO/APC trunk cable verification
- Network maintenance and troubleshooting
- Automated fiber endface certification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | STIP-MPO-A |
| Connector Type | MPO/APC |
| Fiber Count Supported | 8, 12, 16 |
| Row Capacity | Up to 4 rows |
Frequently Asked Questions
Is this tip compatible with UPC connectors?
No, the STIP-MPO-A is specifically for APC (angled) connectors. Please refer to the STIP-MPO-U for UPC connector support.
What inspection scope does this work with?
This tip is designed for the EXFO FIP-500 fiber inspection scope.
Can it inspect 16-fiber MPO connectors?
Yes, it supports 16-fiber configurations.
Does this support multi-row MPO connectors?
Yes, it supports up to 4 rows of fibers.
Is the tip field-replaceable?
Yes, the SmarTip system allows for easy changing of tips on the FIP-500 unit.
