Overview

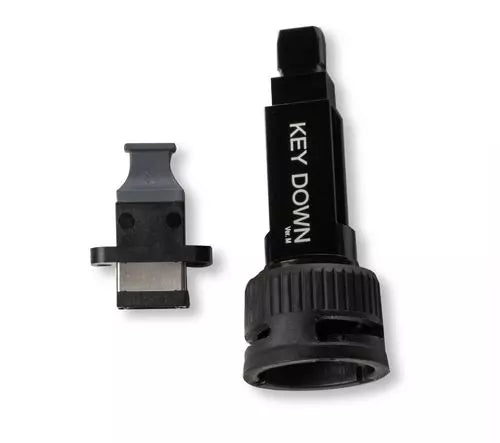

The EXFO STIP-MPO-U SmarTip is a specialized inspection tip designed for the FIP-500 Fiber Inspection Scope. This accessory enables the accurate verification and inspection of multi-fiber MPO/UPC connectors, supporting configurations of MPO 8, 12, and 16 fibers with up to 4 rows.
Engineered for high-density network environments, this tip ensures precise optical inspection during installation, maintenance, and troubleshooting. Its integration with the FIP-500 platform facilitates efficient fiber health assessment, helping technicians maintain connectivity standards in demanding data center and telecommunications applications.
Key Features
-
MPO/UPC Compatibility
Optimized for inspecting multi-fiber MPO connectors with a UPC polish, ensuring accurate surface analysis. -
Multi-Row Support
Supports MPO configurations of 8, 12, and 16 fibers, including up to 4 rows for versatile inspection. -
Seamless Integration
Designed specifically for the EXFO FIP-500 inspection scope, ensuring a quick and stable connection. -
High-Precision Imaging
Maintains the high-resolution standards of the FIP-500, allowing for detailed end-face inspection. -
Rugged Construction
Built for field environments to provide consistent, repeatable inspection results. -
Field-Replaceable
Enables quick swapping of tips in the field to match varying connector types without extensive downtime.
Applications
- Data Center fiber connectivity inspection
- MPO trunk cable verification
- Telecom central office fiber maintenance
- Enterprise network fiber installation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | STIP-MPO-U |
| Connector Type | MPO/UPC |
| Fiber Support | MPO 8, 12, 16 fibers |
| Compatibility | EXFO FIP-500 Inspection Scope |
Frequently Asked Questions
What is the primary use of the STIP-MPO-U?
It is an inspection tip for the FIP-500 scope used to view and certify MPO/UPC fiber connector end-faces.
Does this tip support MPO APC connectors?
No, this model is specifically for UPC-polished connectors. An APC-compatible version is available separately.
Is this compatible with other EXFO scopes?
This tip is specifically engineered for the FIP-500 SmarTip series.
How many fibers can it inspect?
It supports MPO connectors with 8, 12, or 16 fibers in up to 4 rows.
Is the tip easy to change in the field?
Yes, it is designed for rapid, tool-less replacement on the FIP-500 unit.
