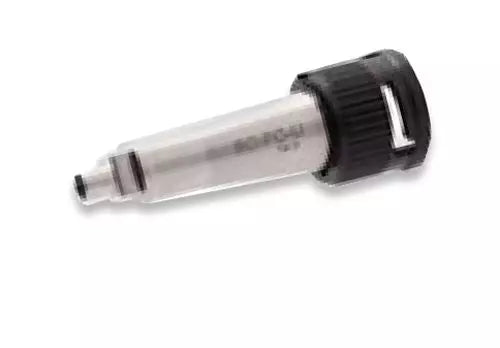

EXFO STIP-SC-FC-U FIP-500 SmarTip for SCU/FCU Bulkhead Connector

Overview

The EXFO STIP-SC-FC-U SmarTip is a high-precision inspection adapter designed specifically for use with the EXFO FIP-500 Fiber Inspection Scope. This SmarTip is engineered for the efficient inspection of SC/UPC and FC/UPC bulkhead connectors, ensuring that fiber end-faces are clean and free from contamination before critical network connections are made.

Utilizing EXFO's specialized SmarTip interface, this accessory provides rapid, reliable, and automated inspection results. It is constructed to withstand the rigors of field use in data centers, telecommunications facilities, and outdoor fiber plant environments, providing technicians with the consistency needed for high-density fiber testing.

Key Features

• Connector Compatibility
  Optimized for precise alignment with both SC/UPC and FC/UPC bulkhead connectors.
• Interchangeable Design
  Quick-connect architecture allows for rapid switching between different tip types on the FIP-500 platform.
• Automated Inspection
  Fully integrates with the FIP-500's automated focus and analysis features for rapid pass/fail results.
• Field-Ready Construction
  Robust housing designed for repetitive use in demanding field and data center environments.
• Precision Optical Alignment
  Ensures consistent center-of-field imaging for accurate defect detection and analysis.
• Easy Maintenance
  Simplified design allows for quick cleaning and inspection of the adapter tip itself.

Applications

• Data center fiber infrastructure inspection
• Telecommunications network maintenance
• Fiber-to-the-Home (FTTH) network installation
• Enterprise network certification

Technical Specifications

Frequently Asked Questions

What does the STIP-SC-FC-U tip inspect?
This SmarTip is designed for inspecting SC/UPC and FC/UPC bulkhead connectors using the FIP-500 scope.

Is this tip compatible with APC connectors?
No, this model is specifically for UPC (Ultra Physical Contact) connectors. A different tip is required for APC (Angled Physical Contact) connectors.

Can I change this tip easily in the field?
Yes, the SmarTip system is designed for quick, tool-less swapping in the field.

Does this tip require calibration?
The tip itself does not require calibration, but should be kept clean to ensure the accuracy of the FIP-500 scope's analysis.

Is the FIP-500 scope included?
No, this is an interchangeable adapter tip for the FIP-500 platform; the scope is sold separately.
