EXFO TK-FF FiberFinder Kit

Overview

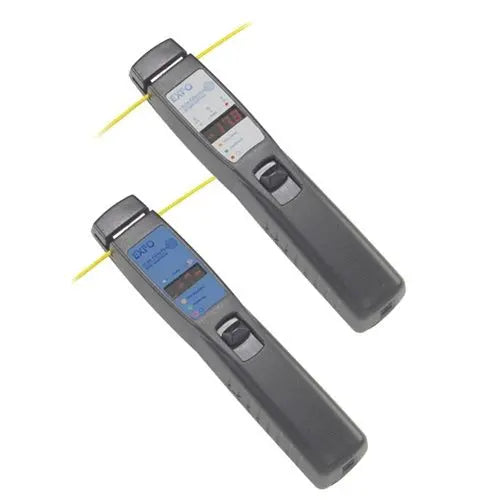

The EXFO TK-FF FiberFinder Kit is an advanced fiber management solution comprised of the LFD-300 Live Fiber Detector and the TG-300 Tone Generator. This professional-grade kit is designed to pinpoint specific fibers within complex network environments, including both live and dark fiber applications, without the need to disconnect fibers or disrupt active traffic.

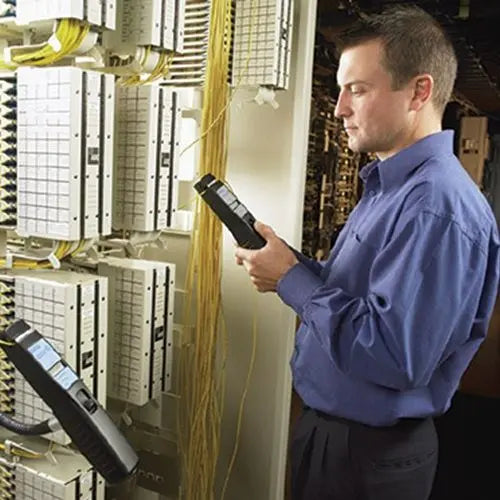

Utilizing proprietary FiberFinder technology, the kit induces minimal optical loss (guaranteed 1 dB maximum) while maintaining signal integrity. It is an ideal tool for data center operators and network engineers performing network upgrades or maintenance, where identifying the correct fiber accurately is critical to preventing service outages and avoiding human error.

The system automatically optimizes the bending angle for different fiber types and wavelengths, ensuring reliable traffic detection and tone recognition. Housed in a durable construction, the kit is suitable for use in diverse operating environments, from long-haul outside plant applications to high-density payload fibers in data centers.

Key Features

• Non-Intrusive Identification
  Enables identification of live fibers without requiring disconnection, preventing network service outages.
• FiberFinder Technology
  Allows precise pinpointing of a specific live fiber by pairing the LFD-300 detector with the TG-300 signature tone generator.
• Minimal Insertion Loss
  Induces a maximum of 1 dB loss during testing, ensuring performance remains within acceptable tolerances for most single-mode systems.
• Automatic Angle Optimization
  The LFD-300 monitors power loss while automatically adjusting the bending angle to suit various fiber types and operating wavelengths.
• Ambient Light Offset
  Performs offset adjustments prior to fiber bending to ensure accurate detection even in high-ambient-light environments.
• Multiple Tone Recognition
  Supports detection of 270-Hz, 1-kHz, and 2-kHz tones, allowing for effective dark fiber identification.
• Non-Destructive Testing
  Designed to release the fiber immediately when no power is detected, ensuring no physical damage to the fiber cable.

Applications

• Live fiber identification and traffic detection
• Dark fiber identification in network installation
• Network maintenance and fiber management
• Optical power measurement
• Long-haul and high-payload fiber network testing

Package Contents

• LFD-300 Live Fiber Detector
• TG-300 Tone Generator
• Clamp for single-person tone generator operation
• AC adapter
• Soft carrying bag

Technical Specifications

Frequently Asked Questions

Does this kit disrupt traffic on live fibers?
No, the EXFO TK-FF is designed specifically for non-disruptive, non-intrusive identification of live fibers.

Can it be used on dark fiber?
Yes, it supports tone detection (270-Hz, 1-kHz, and 2-kHz) for identifying dark fibers.

Will the bending mechanism damage the fiber?
The system uses automated, minimal bending that is non-destructive, and the fiber is automatically released when testing is complete.

Is the kit suitable for high-payload fibers?
Yes, the FiberFinder technology is engineered to be safe for use on high-payload fibers and long-haul applications.

What is the maximum optical loss induced?
The kit induces a maximum insertion loss of 1 dB for any single-mode fiber.
