Overview

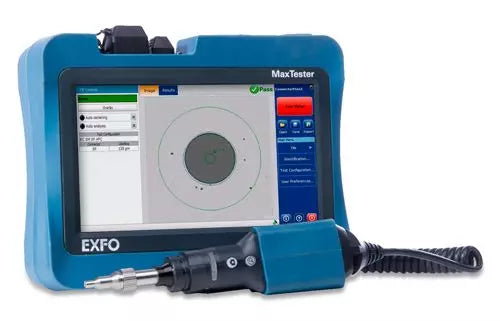

The EXFO TK-MAX-FIP-VP2X Fiber Inspection Probe Kit is a comprehensive solution designed for fiber technicians and network engineers to certify fiber optic connectivity. This kit centers on the MAX-FIP Intelligent Connector and Fiber Certifier, which features a 7-inch touchscreen for easy navigation and automated analysis of fiber end-faces.
This all-in-one platform combines digital video inspection, a 650nm visual fault locator (VFL), and an optical power meter in a single ruggedized unit. It is engineered for both field and lab environments, ensuring accurate connector assessment, fault localization, and power measurement for reliable network performance.
Key Features
-
Fully Automated Inspection
Features the FIP-430B probe with automatic fiber image-centering and pass/fail certification to ensure consistent results. -
Integrated Test Tools
Includes a built-in visual fault locator (VFL) and power meter, reducing the amount of equipment needed for field testing. -
7-Inch Touchscreen Interface
Provides an intuitive display for viewing high-resolution fiber end-face images and test results. -
High-Resolution CMOS Sensor
Equipped with a 5-megapixel sensor to capture clear, detailed images of fiber connector end-faces. -
ConnectorMax2 Software
Includes specialized software for on-board analysis and documentation of connector conditions. -
Universal Connectivity
Features USB 2.0 interfaces and a 1Gig RJ-45 port for easy data transfer and network integration. -
Platform Compatibility
Designed to integrate seamlessly with the FTB ecosystem, MaxTester 700B OTDR series, and standard PCs or laptops.
Applications
- Fiber connector inspection and end-face analysis
- Network fault localization
- Optical power measurement
- Fiber optic installation and certification
Package Contents
- MAX-FIP Intelligent Connector and Fiber Certifier
- FIP-430B Digital Video Inspection Probe
- 650nm Visual Fault Locator (VFL)
- Optical Power Meter
- FIPT-400-U25MA: Universal patchcord tip for 2.5 mm ferrules (APC)
- FIPT-400-SC-APC: SC APC tip for bulkhead adapter
- Plastic carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | EXFO |
| Model | TK-MAX-FIP-VP2X |
| Display | 7" Touchscreen |
| Inspection Probe | FIP-430B |
| Sensor Resolution | 5-Megapixel CMOS |
| VFL Wavelength | 650 nm |
| Data Storage | 2 GB |
| Interfaces | USB 2.0, 1Gig RJ-45 |
Frequently Asked Questions
What is the primary function of the FIP-430B probe?
The FIP-430B is a digital video inspection probe used for automatic pass/fail analysis of fiber connector end-faces.
Is this kit compatible with other EXFO products?
Yes, it is compatible with the FTB ecosystem, the MaxTester 700B OTDR series, and standard PCs or laptops.
Does this kit include a power meter?
Yes, the TK-MAX-FIP-VP2X includes an integrated optical power meter alongside the inspection probe and VFL.
What type of screen does the MAX-FIP unit have?
The unit features a 7-inch touchscreen display.
Are replacement tips included in the kit?
The kit comes with specific tips, including the FIPT-400-U25MA for 2.5mm APC ferrules and FIPT-400-SC-APC for bulkhead adapters.
How much data can the device store?
The device includes 2 GB of internal data storage.
