FBPSD101 JDSU P5000i Digital Analysis Microscope
Move your mouse over image or click to enlarge

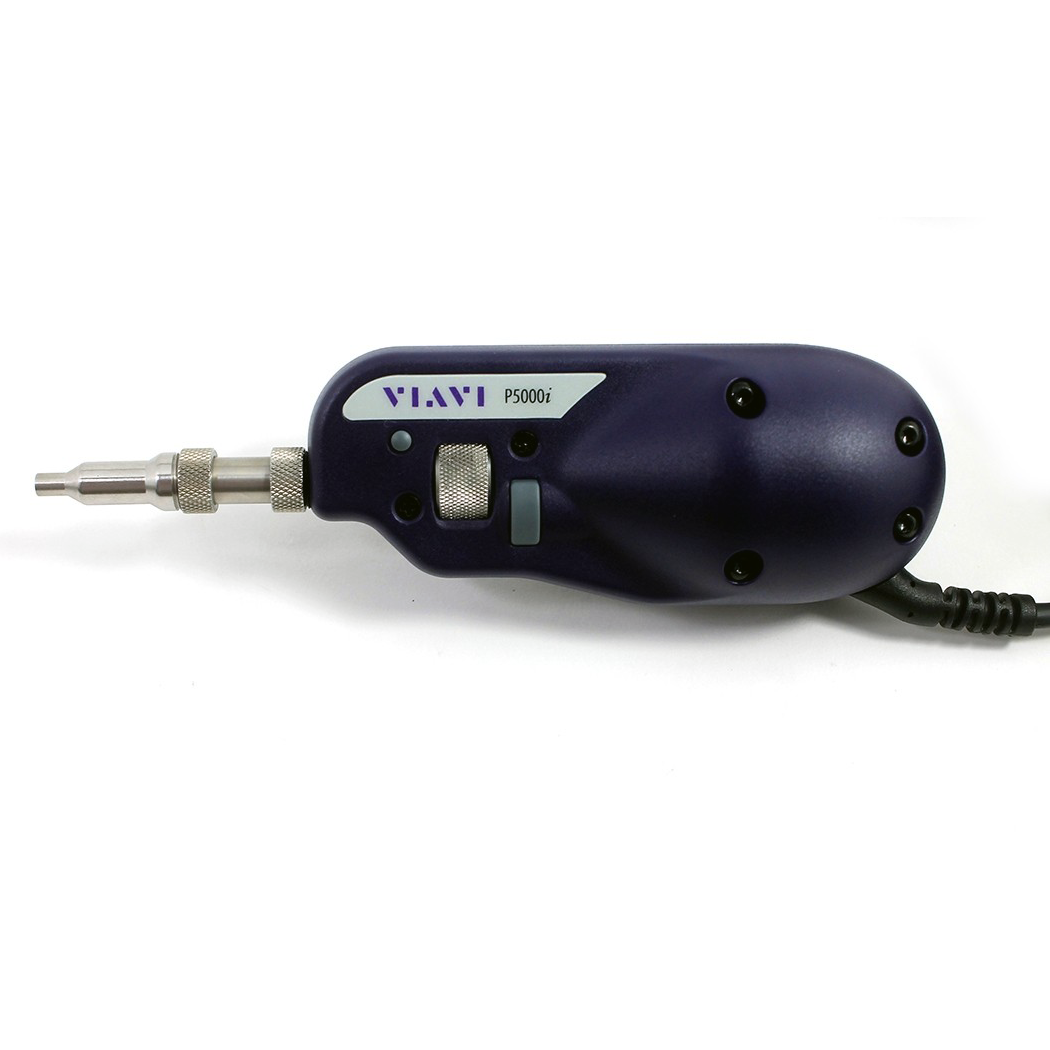

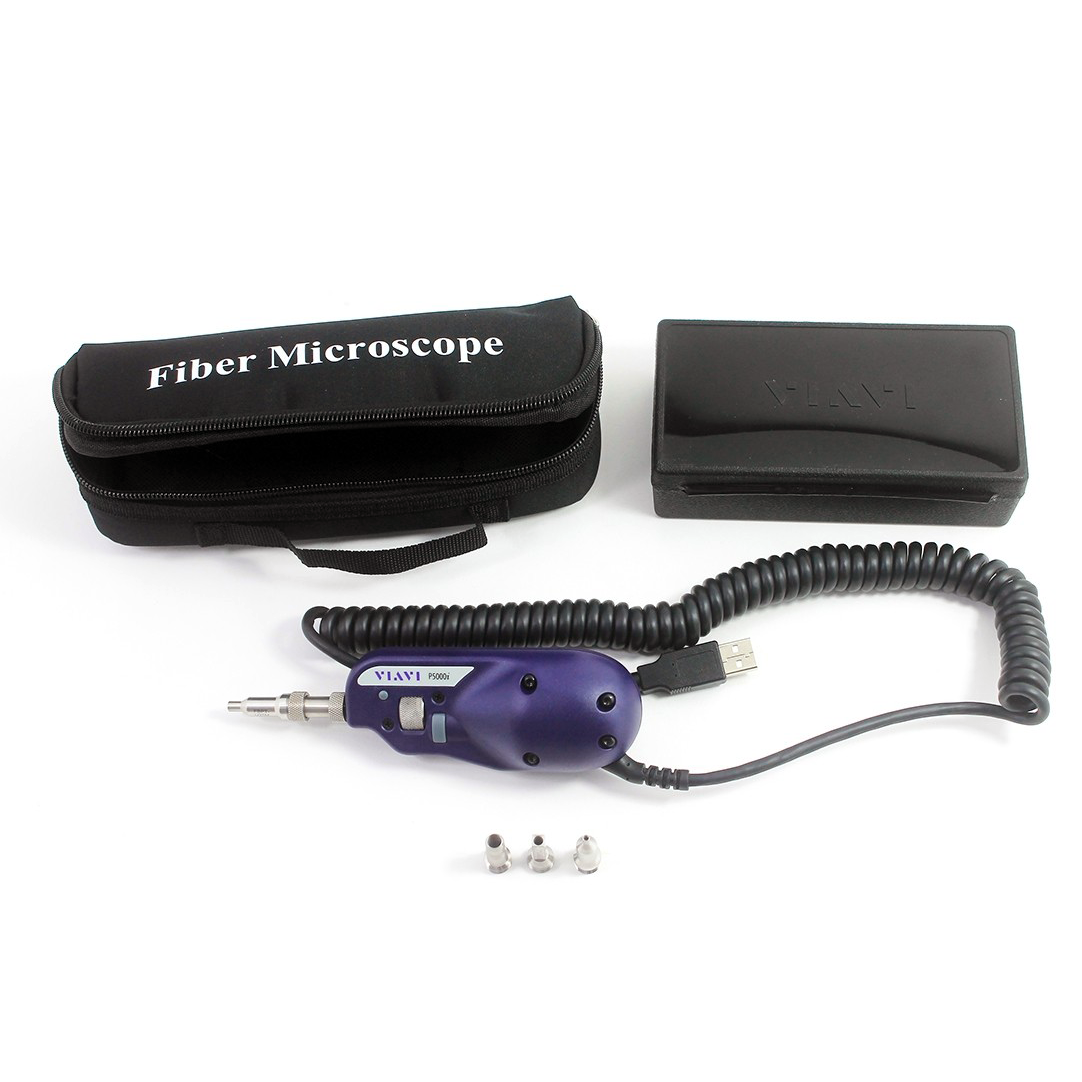

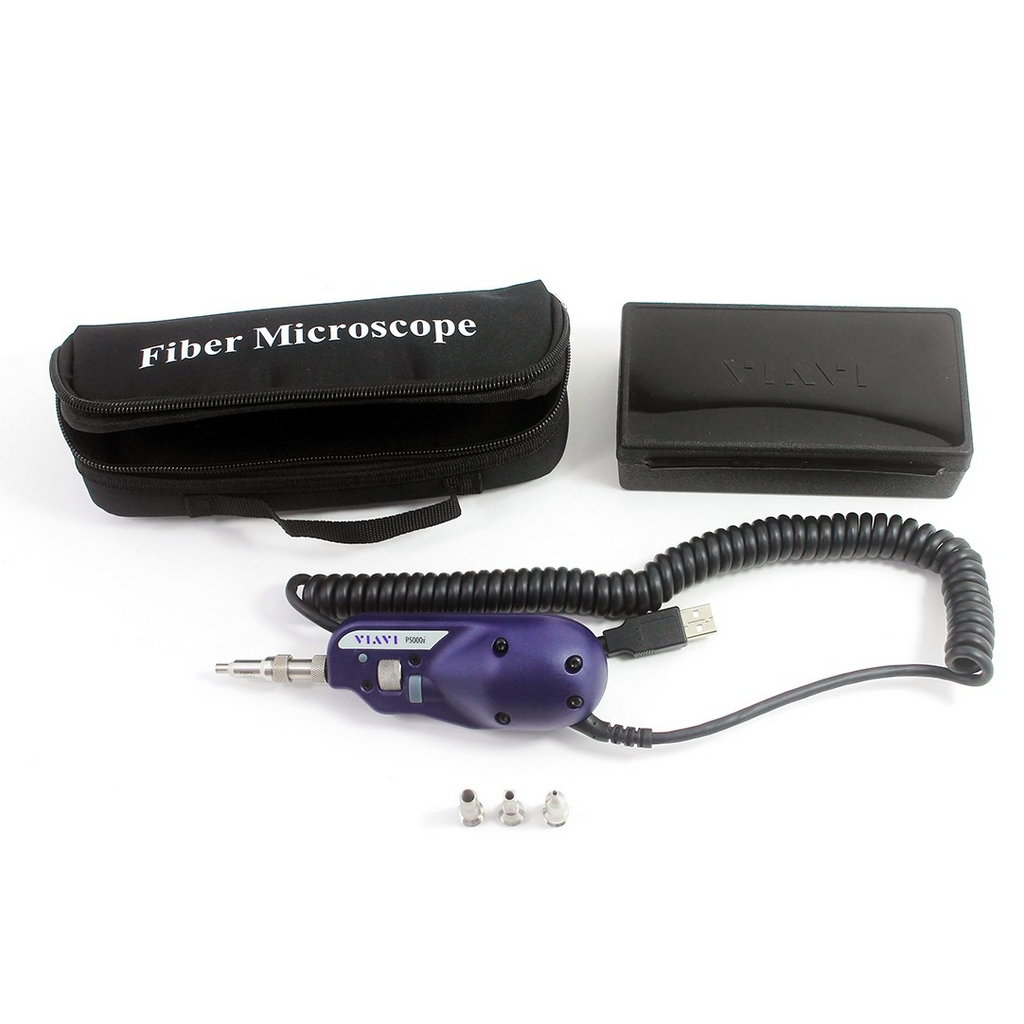

FBPSD101 JDSU P5000i Digital Analysis Microscope

JDSU Part No.: FBP-SD101

  • $ 3,207.00 or

The #1 cause for troubleshooting in optical networks is contaminated fiber connectors. To address this problem, the International Electrotechnical Commission (IEC) has developed a standard for acceptable fiber end-face quality. Yet certifying compliance to this standard can be a time-consuming, complex, and subjective procedure. The P5000i is a digital handheld microscope that automatically inspects and certifies the end faces of fiber connectors according to industry standards and specifications. This digital microscope provides instant pass/fail results at the push of a button, eliminating subjective and time-consuming guesswork. Compatible with multiple platforms, including T-BERD/MTS-2000/4000/5800/ 6000A, 8000v2, HST-3000, Certifier40G, CellAdvisor JD720C, laptops, PCs, and Android mobile devices, the P5000i provides fast, repeatable analysis that easily integrates into existing test procedures. The worlds leading manufacturers, installers, and service providers already rely on JDSU to certify their fiber connectors. Whether testing on the production line or in the field, the P5000i gives any technician that handles fiber the same capabilities in the palm of their hand.

Key Benefits:

P5000i Digital Analysis Microscope Automated Fiber Inspection and Pass/Fail Analysis

Inspect and certify fiber end-face quality at the push of a button, making your technicians instant fiber experts

Ensure physical-layer performance by guaranteeing fiber connectivity meets industry standards

Eliminate confusion with fast, easy, and objective testing

Certify fiber end-face quality with your existing JDSU test platform or mobile device

Let your technicians get it right the first time, drive best practices, improve quality of work, and optimize workflows

Ensure lifetime connections and protect network investments Key Features by preventing damage to fiber components and equipment

Key Features:

Connects via USB with multiple devices including JDSU tools, laptops/PCs, and Android mobile devices

Repeatable pass/fail analysis eliminates subjective guesswork from the measurement process

User-selectable acceptance profiles allow certification to any acceptance criteria

Includes FiberChekPRO software for analysis and reporting with laptops/PCs

Automatic image centering ensures the fiber always appears in the center of the screen

Detailed report generation to certify and document results

Dual magnification (200X and 400X) functionality provides highlevel and detailed inspection and analysis

Magnification toggle button allows easy switching in both live and analysis views

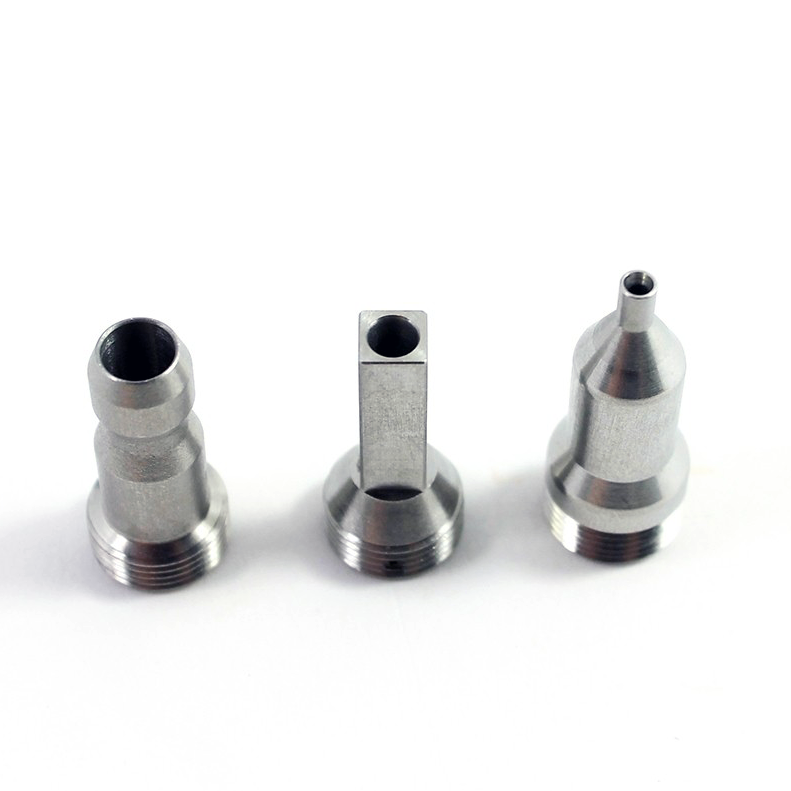

Accepts FBPT series tips for comprehensive support for all connector types used in todays network

Down Load Spec Sheet at Here



Sold Out
