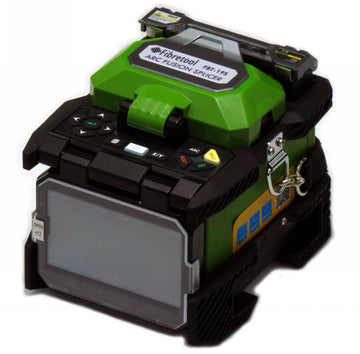

FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer
Move your mouse over image or click to enlarge
FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer

FBT-19S Core-Alignment Optical Fiber Arc Fusion Splicer

SHANGHAI FIBRETOOLS Part No.: FBT-19S

  • $ 2,490.00 or
  • Save $ 5,010



FBT-19S Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments.

It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance.

The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The
modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can
be remained consistent in various environments.

FEATURES

  • 7s fast splicing, 18s highly efficient heating
  • 320 times image magnification, 5mm fusing for ultra-short cleave length
  • 300 groups of splice modes, 100 groups of heating modes, 10000 groups of  usion records /64 images storage
  • Ceramic presser foot, ceramic V-groove, all-in-one fixture
  • Dual-directional fusing, auto fusing, intelligent heat shrink
  • USB and SD card interface, auto update of U disk
  • Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
  • GUI (graphical user interface) and touch screen, convenient for operation
  • Dust-resistant, water-resistant, shock-resistant, greater environment adaptability
  • Small size, light weight

Small and light

Small size and light weight, the splicer is easy to carry and can be lift by one hand.

Water-resistant, dust-resistant, shock-resistant, greater environment adaptability.

Meets IP52 requirements.

All-in-one fixer

The all-in-one fixture meet fusion demands of multiple optical fibers, jumpers and rubber-insulted wires with a cladding diameter of 80~150μm.

Graphical interfaces and touch screen

Fibretool FBT-19S uses entirely new GUI and touch screen in design. Operators can set up the splicer and get to know relevant information of it simply and directly by graphical interfaces.

Intelligent heat shrink

A detection unit is embedded in the heater. The heating function will only be enabled when the protection sleeve is put in the heater, to avoid mishandling.

Pluggable lithium-ion battery of large-capacity

The built-in pluggable lithium-ion battery of large capacity can answer working demand lasting all day long (typical 220 counts of splicing and heating cycles).

Ceramic V-groove and ceramic presser foot

Ceramic V-groove with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.

Multi-functional Carrying case

The carrying case is novel in design and light in weight, has built-in compact working bench. Open or close the cover can turn it to a working bench.

Specifications

Model FBT-19S
Alignment method Precise core alignment and cladding alignment
Applicable fibers Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657
Optical fiber diameters Cladding: 80~150µm, coating layer: 0.1~3mm
Cutting length 5~16mm(coated optical fiber diameter <= 250µm); 10mm (coated optical fiber diameter: 0.25~3mm)
Fusion splicing consumption(typical value) 0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF)
Return loss Better than 60dB
Fusion splicing time (typical value) 7 seconds
Heating time (typical value) 18 seconds
Pulling force test 1.96~2.25N
Thermal shrinkage tube 60mm, 40mm and a series of thermal shrinkage tubes
Graphical display High-performance 4.3 inch LCD
Magnification time 320 times/88 times
Fusion splicing record 10000 groups
Battery capacity 11.1V, 6400mAh,typical value of fusion splicing and thermal cycle is 220 times
Battery service life Cycle charging times reach 300~500, can be replaced by customers
Electrode service life Typical value is 4000 times, can be replaced by customers
Construction lighting Built-in lights with high-brightness and wide lighting area
Working environment Temp:-10~50°C;hum: 0~95%RH,height above sea level:0~6000m
External power AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
External port USB / SD
Dimensions 120mm(W)×130mm(H)×154mm(D)
Weight 1.59kg
