Overview

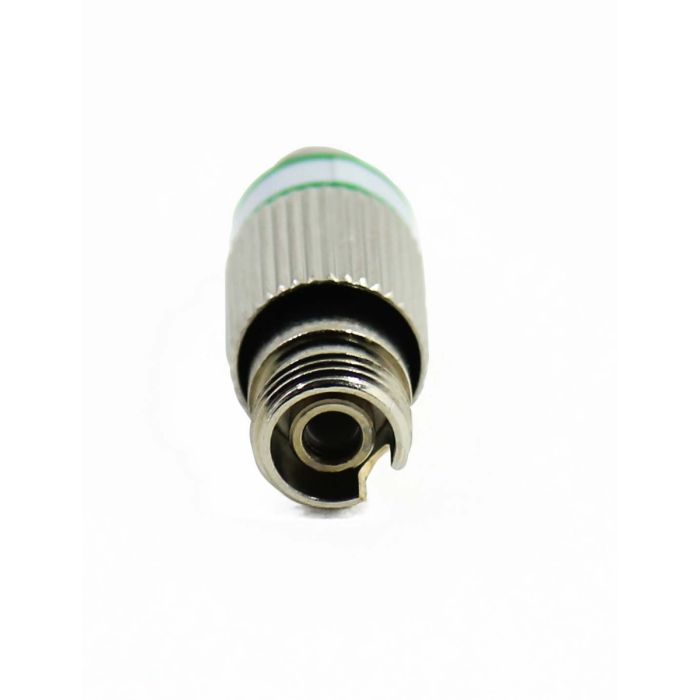

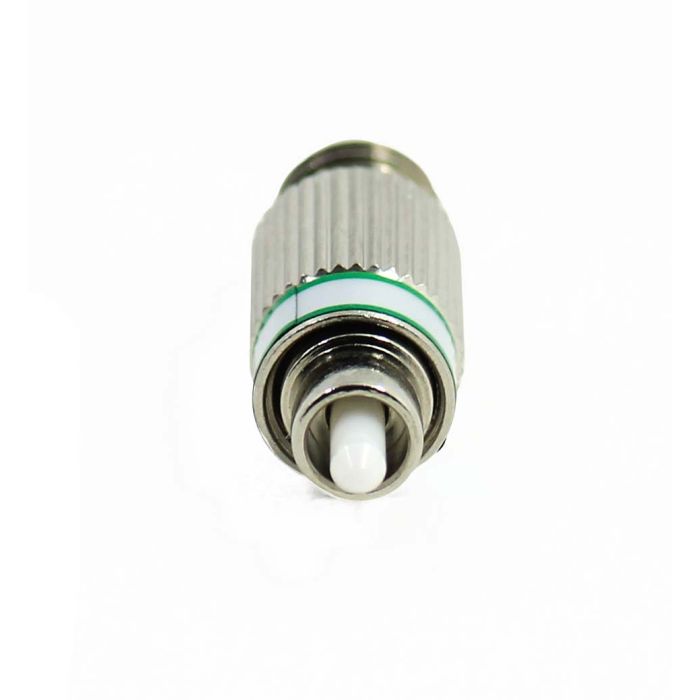

The FC/APC male-to-female buildout attenuator is a precision optical component designed to reduce the power level of a fiber optic signal without distorting the waveform. By utilizing doped fiber technology, this device ensures consistent, reliable performance in high-speed network environments.
Engineered for versatility, it is suitable for both 1310nm and 1550nm operating wavelengths. The compact, male-to-female design allows it to be easily installed directly into existing fiber connections or mounted within patch panels, making it an efficient solution for balancing signal levels in telecommunications, data centers, and CATV networks.
Key Features
-
Doped Fiber Technology
Uses specialized doped fiber to ensure polarization-insensitive attenuation and signal integrity. -
Compact Form Factor
Features a small, lightweight design that fits seamlessly into existing patch panels or direct-mating applications. -
Dual-Wavelength Compatibility
Engineered to perform accurately at both 1310nm and 1550nm windows for versatile deployment. -
Factory Tested
Each unit is 100% factory-tested to verify optical performance and meet precise attenuation requirements. -
Male-to-Female Interface
Provides a simple plug-and-play installation, reducing installation time and complexity. -
Standardized Attenuation
Delivers a fixed 1dB attenuation value for predictable signal management.
Applications
- Telecommunications network signal balancing
- CATV (Cable Television) systems
- Fiber optic test and measurement setups
- Data center link power optimization
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18751A01 |
| Connector Type | FC/APC (Male-to-Female) |
| Attenuation | 1 dB |
| Operating Wavelength | 1310nm / 1550nm |
| Fiber Mode | Singlemode |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the signal strength in a fiber optic line to prevent receiver saturation or to balance power levels in a network.
Can this be used with multimode fiber?
No, this product is specifically designed for singlemode fiber applications.
Is this connector polarization sensitive?
No, it utilizes doped fiber and is polarization-insensitive.
How do I install the device?
The male-to-female design allows it to plug directly into an existing FC/APC adapter port.
What wavelengths does this support?
It is optimized for use at both 1310nm and 1550nm.
