Overview

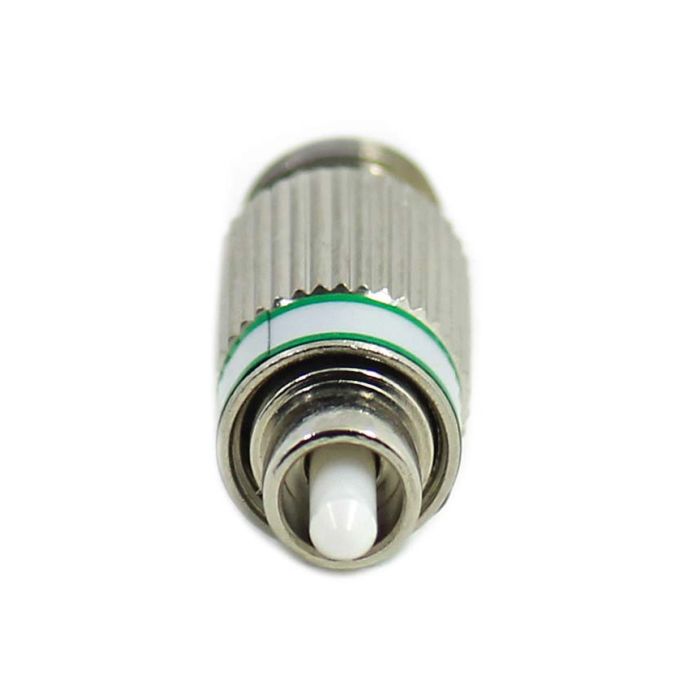

This FC APC male-to-female attenuator is designed to reduce optical signal levels in fiber optic networks. It provides a precise 7dB attenuation for both 1310nm and 1550nm operating wavelengths, ensuring signal integrity by preventing receiver saturation.
Constructed with high-quality doped fiber, this device offers polarization-insensitive performance. Its compact design allows for easy integration into existing connections or dense patch panel environments.
Key Features
-
Doped Fiber Technology
Uses specialized fiber to provide consistent attenuation values regardless of signal polarization. -
Compact Form Factor
Designed to occupy minimal space in patch panels or active hardware ports. -
Male-to-Female Interface
Enables direct plug-and-play installation between existing fiber cables and equipment ports. -
Wide Wavelength Compatibility
Optimized for dual-window operation at 1310nm and 1550nm. -
Factory Tested
Each unit is 100% optically verified to ensure accurate performance specifications before shipment. -
Fixed Attenuation
Provides a reliable, stable 7dB reduction in signal power without the drift associated with variable attenuators.
Applications
- Telecommunications network power level balancing
- Fiber optic test equipment signal protection
- CATV and broadcast system signal leveling
- Data center link attenuation for high-power transmitters
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC APC |
| Gender | Male to Female |
| Attenuation Value | 7dB |
| Operating Wavelength | 1310nm / 1550nm |
| Fiber Type | Singlemode |
Frequently Asked Questions
Is this attenuator compatible with both 1310nm and 1550nm?
Yes, it is designed for dual-wavelength operation covering both 1310nm and 1550nm.
What does the male-to-female configuration mean?

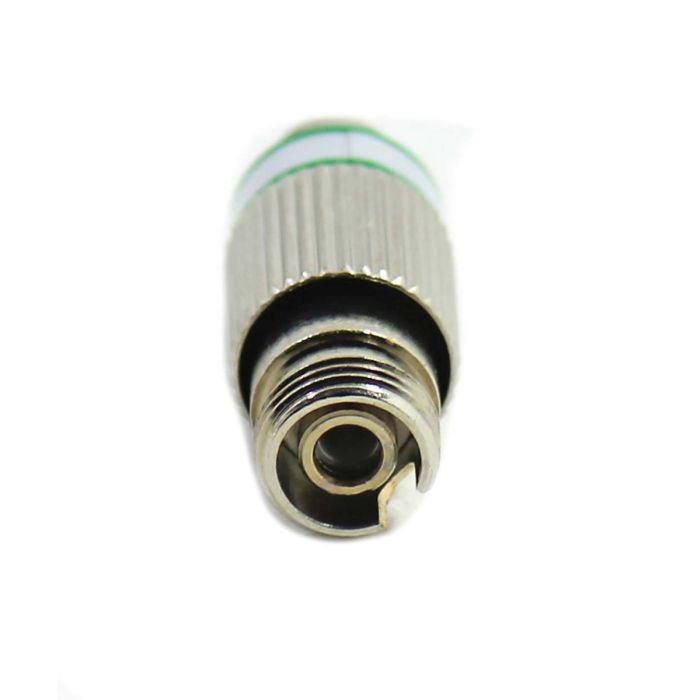

The unit features a male FC APC connector on one end that plugs into a port, and a female FC APC receptacle on the other end to receive a patch cable.
Does this require special tools to install?
No, it is a standard build-out style attenuator that connects directly to compatible FC ports.
Are these factory tested?
Yes, all units are 100% factory tested for optical performance.
Is this a fixed or variable attenuator?
This is a fixed attenuator providing a consistent 7dB reduction.
