Overview

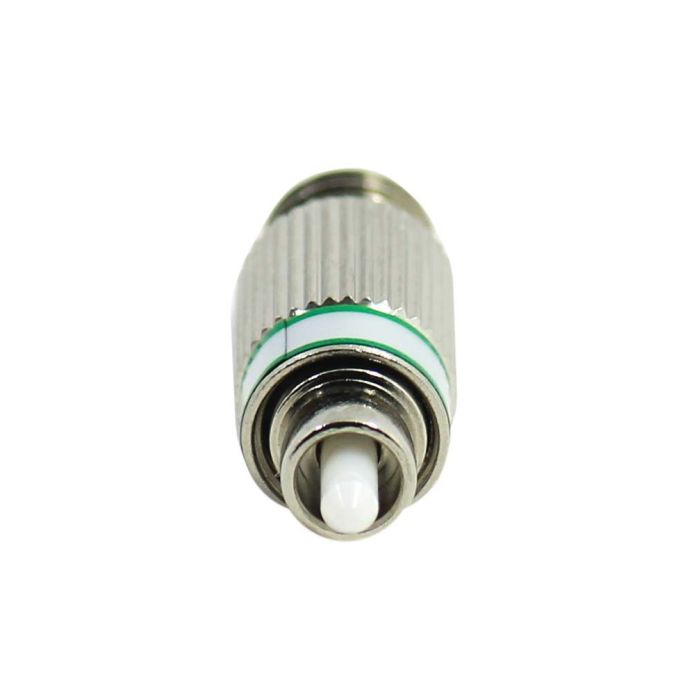

The FC/APC Male-to-Female Singlemode Attenuator is a high-precision passive component designed to reduce the optical power level in fiber optic transmission systems. By introducing a fixed 12dB signal reduction, this device prevents receiver saturation and ensures optimal signal integrity in high-power networks.
Engineered for use with singlemode fiber applications, this attenuator is compatible with standard FC/APC interfaces. It is suitable for deployment in telecommunications networks, data centers, and laboratory test environments where precise signal management is required to maintain balanced power levels across the link.
Key Features
-
Fixed 12dB Attenuation
Provides precise power reduction to prevent signal degradation caused by excessive optical input. -
Singlemode Compatibility
Optimized for 1310nm and 1550nm operating wavelengths to support common transmission protocols. -
FC/APC Interface
Features industry-standard connector types with angled physical contact for minimized back-reflection. -
Male-to-Female Configuration
Allows for easy inline installation directly onto existing equipment or patch panels. -
Compact Design
Small form factor ensures minimal impact on rack space or existing cable management structures. -
Passive Construction
Does not require external power, ensuring consistent performance in diverse environmental conditions.
Applications
- Telecommunications and CATV networks
- Optical link power balancing
- Fiber optic test and measurement equipment
- Data center link attenuation
- Laboratory fiber optic research
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC/APC |
| Gender | Male to Female |
| Attenuation Value | 12dB |
| Operating Wavelength | 1310nm / 1550nm |
| Fiber Mode | Singlemode |
Frequently Asked Questions
What is the primary function of this attenuator?
This device reduces optical signal power by 12dB to prevent signal saturation in fiber optic receivers.
Can this be used with multimode fiber?
No, this product is specifically designed for singlemode fiber applications.
What does the APC designation mean?
APC stands for Angled Physical Contact, which is used to minimize optical back-reflection in the fiber link.
How is this attenuator installed?
It features a male-to-female design, allowing it to be connected inline between a cable and an adapter or directly to a piece of equipment.
Does this require a power supply?
No, it is a passive device that functions independently of external power.
