Overview

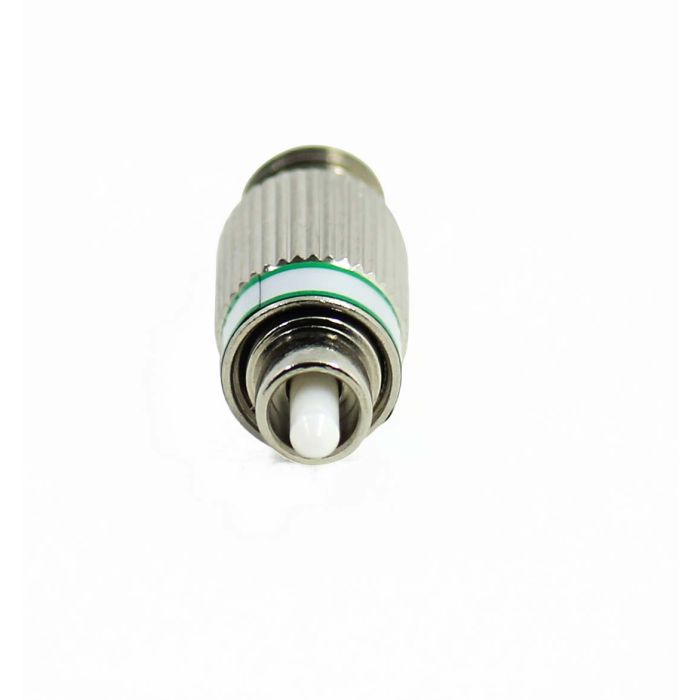

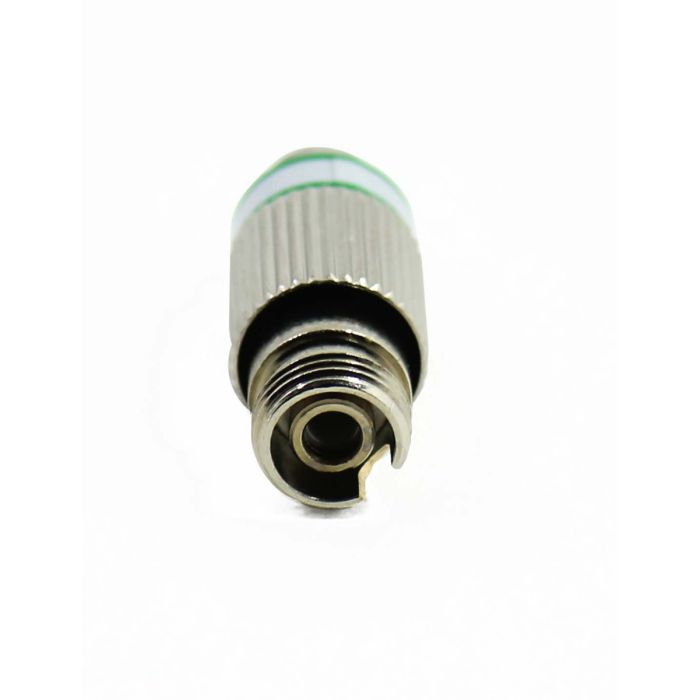

The FC APC Male-to-Female Attenuator is a precision optical component designed to reduce signal power in singlemode fiber optic systems. This buildout-style attenuator is optimized for operation at both 1310nm and 1550nm wavelengths, providing consistent attenuation for signal balancing in telecommunications and data network environments.
Constructed with high-quality doped fiber, this device ensures polarization insensitivity and stable performance. Its compact, male-to-female design allows for seamless integration into existing infrastructure, enabling installation directly into equipment ports or patch panels without requiring additional space or patch cords.
Key Features
-
Fixed Attenuation
Features a stable 5dB attenuation value for precise signal power management. -
Doped Fiber Technology
Utilizes doped fiber to ensure accurate attenuation and low signal distortion. -
Broad Wavelength Compatibility
Supports both 1310nm and 1550nm operating wavelengths, making it versatile for various singlemode applications. -
Compact Form Factor
The space-saving design integrates directly into existing patch panels or equipment ports. -
Polarization Insensitive
Maintains consistent optical performance regardless of light polarization. -
100% Factory Tested
Every unit is rigorously tested to ensure optical performance standards are met.
Applications
- Fiber optic telecommunications networks
- Signal level balancing in data centers
- Optical equipment protection
- FTTH and broadband infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18751A05 |
| Connector Type | FC APC Male to Female |
| Attenuation Value | 5dB |
| Operating Wavelength | 1310nm / 1550nm |
| Fiber Type | Singlemode |
Frequently Asked Questions
What is the primary function of this attenuator?
It is used to reduce the signal strength in a fiber optic line to prevent receiver saturation or to balance power levels across different channels.
Can this be used with 1310nm and 1550nm systems?
Yes, this attenuator is designed to perform at both standard singlemode wavelengths.
Is this a patch cord or an adapter-style attenuator?
This is a buildout-style (male-to-female) attenuator designed to plug directly into an existing FC APC adapter port.
What does APC signify in the connector type?
APC stands for Angled Physical Contact, which utilizes an 8-degree angle on the ferrule end face to minimize back reflections (return loss).
Can I install this in a standard patch panel?
Yes, its compact design is intended to fit into standard FC-compatible patch panels and equipment bulkhead adapters.
