Overview

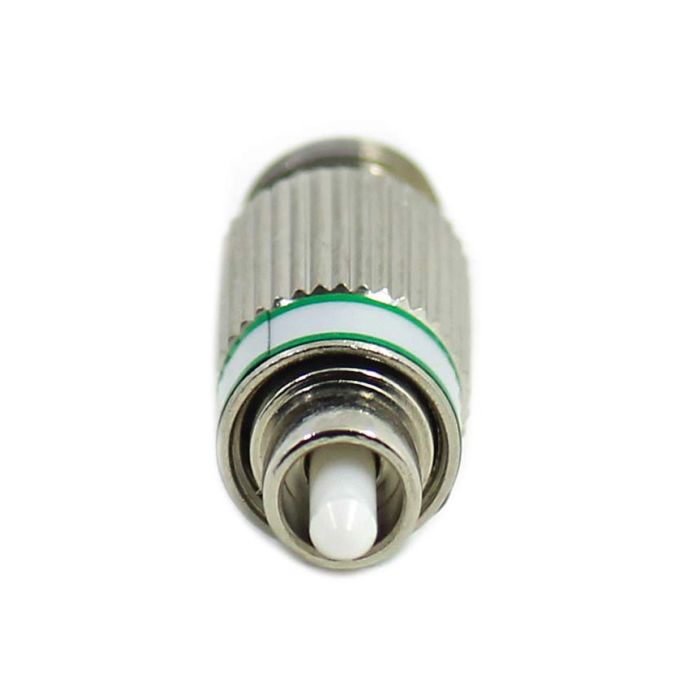

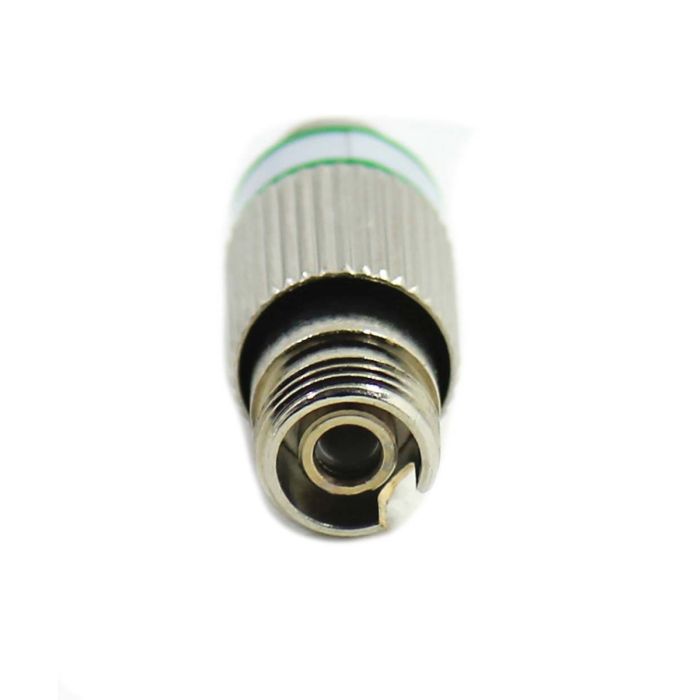

The FC APC Male-to-Female buildout attenuator is a precision optical component designed to reduce signal power in singlemode fiber optic networks. By utilizing doped fiber technology, these attenuators provide consistent performance across both 1310nm and 1550nm operating wavelengths, making them ideal for balancing power levels in fiber optic transmission systems.
Engineered for versatility, this compact device connects directly into existing fiber optic adapters or patch panels. Its male-to-female interface allows for easy inline integration, providing an efficient solution for fiber technicians and network engineers to prevent receiver saturation in high-power systems.
Key Features
-
Doped Fiber Technology
Utilizes specialized doped fiber to ensure stable, polarization-insensitive attenuation. -
Dual-Wavelength Operation
Optimized for both 1310nm and 1550nm wavelengths, ensuring compatibility with standard singlemode systems. -
Fixed 10dB Attenuation
Provides precise power reduction, helping to prevent equipment damage due to high signal strength. -
Compact Form Factor
Space-saving design allows for easy installation directly into patch panels or existing fiber interconnections. -
100% Factory Tested
Ensures optical performance and reliability out of the box, reducing the need for field troubleshooting. -
Male-to-Female Interface
Simplified connection method that integrates seamlessly into existing link paths without additional cabling.
Applications
- Telecommunications network power balancing
- Preventing receiver saturation in high-output fiber links
- Fiber optic test and measurement setups
- CATV and FTTx deployments
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC APC |
| Attenuation Value | 10 dB |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Gender | Male-to-Female |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the signal strength of a fiber optic connection, which is often necessary when high-power light sources could potentially saturate or damage downstream receivers.
Does this unit work with multimode fiber?
No, this device is specifically designed for singlemode fiber optic systems.
Can I use this for wavelength division multiplexing (WDM) systems?
Yes, it is suitable for both 1310nm and 1550nm operation, which are common windows for many WDM and standard communication systems.
Is this attenuator fixed or variable?
This is a fixed attenuator with a set value of 10dB.
What does 'Male to Female' mean?
It means one end connects directly to a female adapter (Male), and the other end accepts a standard male fiber patch cord (Female).
Downloads
