Overview

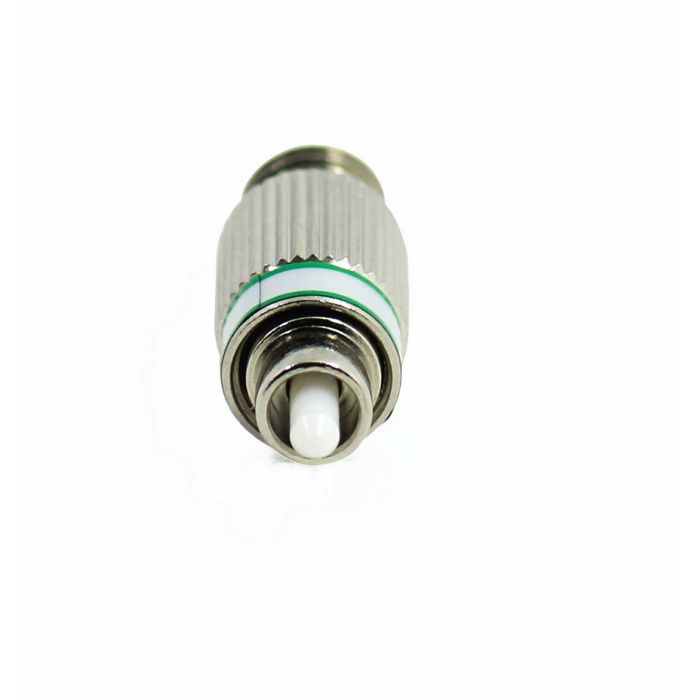

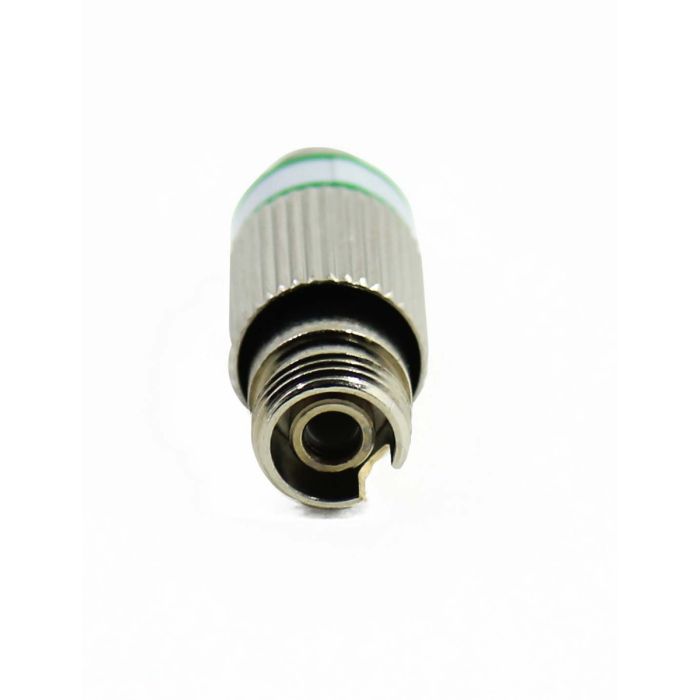

The FC/APC Male-to-Female Singlemode Attenuator is a high-precision component designed to reduce signal intensity in optical networks without compromising transmission quality. This buildout-style attenuator is optimized for operation at both 1310nm and 1550nm wavelengths, making it suitable for a wide range of telecommunication and data center applications.
Engineered for versatility, this unit features a compact, plug-and-play design that integrates seamlessly into existing fiber optic connections or patch panels. By utilizing doped fiber technology, the attenuator ensures polarization-insensitive performance, providing accurate and stable signal attenuation for critical fiber infrastructure.
Key Features
-
Doped Fiber Technology
Uses specialized fiber to ensure polarization-insensitive attenuation, maintaining signal integrity. -
Dual Wavelength Compatibility
Optimized for both 1310nm and 1550nm windows, supporting diverse singlemode network requirements. -
Fixed Attenuation Value
Provides a precise 2dB reduction, ensuring predictable link loss budgets. -
Compact Form Factor
Designed to fit easily into patch panels and tight spaces, simplifying network management. -
100% Factory Tested
Guarantees optical performance and adherence to standards out of the box. -
Male-to-Female Configuration
Allows for quick installation directly onto equipment ports or existing cable connectors.
Applications
- Telecommunications network power level balancing
- Data center fiber link testing
- CATV optical signal management
- Fiber optic equipment commissioning
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC/APC |
| Configuration | Male to Female |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation | 2dB |
| Fiber Type | Singlemode |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the signal strength in a fiber optic link, which is necessary when the power level from the transmitter is too high for the receiver, preventing signal saturation.
Can this be used on multimode fiber?
No, this device is specifically designed for singlemode fiber optic applications.
What does the 2dB value mean?
It indicates that the optical power will be reduced by 2 decibels when passing through the component.
Is the FC/APC connector compatible with FC/UPC ports?
No, FC/APC connectors have an angled polish and are not compatible with flat-polished (UPC) connectors.
How do I install the attenuator?
Simply plug the male end into your existing port or adapter and connect your fiber cable to the female side of the attenuator.
