Overview

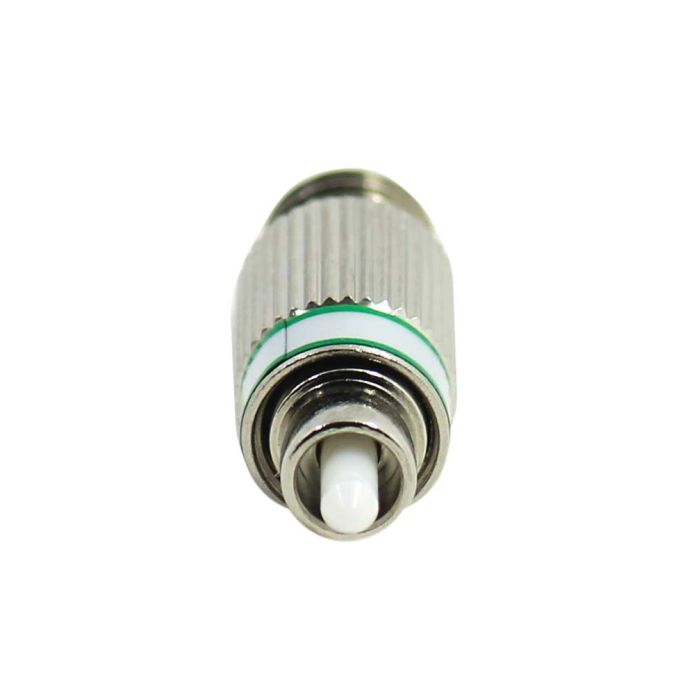

The FC/APC Male to Female attenuator is a passive fiber optic component designed to reduce the power level of an optical signal. By introducing a precise level of signal loss, this attenuator prevents saturation in sensitive receivers and ensures optimal performance in high-power fiber optic systems.
Engineered for singlemode applications, this unit is compatible with 1310nm and 1550nm operating wavelengths. Its compact male-to-female design allows for easy integration into existing fiber links, connecting directly to an adapter or patch panel port, while maintaining signal integrity through the APC (Angled Physical Contact) interface.
Key Features
-
Singlemode Compatibility
Optimized for use with standard 9/125 micron singlemode fiber, ensuring low insertion loss for system compatibility. -
Dual Wavelength Support
Supports standard 1310nm and 1550nm operating windows for versatile deployment in telecommunications networks. -
14dB Attenuation
Provides a fixed 14dB reduction in signal strength to calibrate power levels accurately. -
APC Polished Interface
Features an angled physical contact (APC) polish to minimize back-reflections and enhance return loss performance. -
Male to Female Configuration
Convenient form factor allows for direct mounting into existing fiber adapters or equipment ports. -
Compact Design
Space-saving housing is ideal for high-density environments where space is at a premium.
Applications
- Optical Power Level Management
- Telecommunications and CATV Networks
- Test and Measurement Equipment
- DWDM Channel Balancing
- Prevention of Receiver Saturation
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC/APC |
| Configuration | Male-to-Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation | 14dB |
Frequently Asked Questions
What does a 14dB attenuator do?
It reduces the power of the light signal by 14 decibels, which is typically used to prevent overloading a fiber optic receiver.
Can I use this with Multimode fiber?
No, this attenuator is designed specifically for Singlemode fiber systems.
What is the benefit of the APC polish?
The APC (Angled Physical Contact) polish provides superior return loss by minimizing back-reflections into the light source.
Is this a fixed or variable attenuator?
This is a fixed attenuator providing a consistent 14dB reduction.
Can I connect this directly to my device?
Yes, the male-to-female design allows it to plug into an existing female FC/APC adapter port.
