Overview

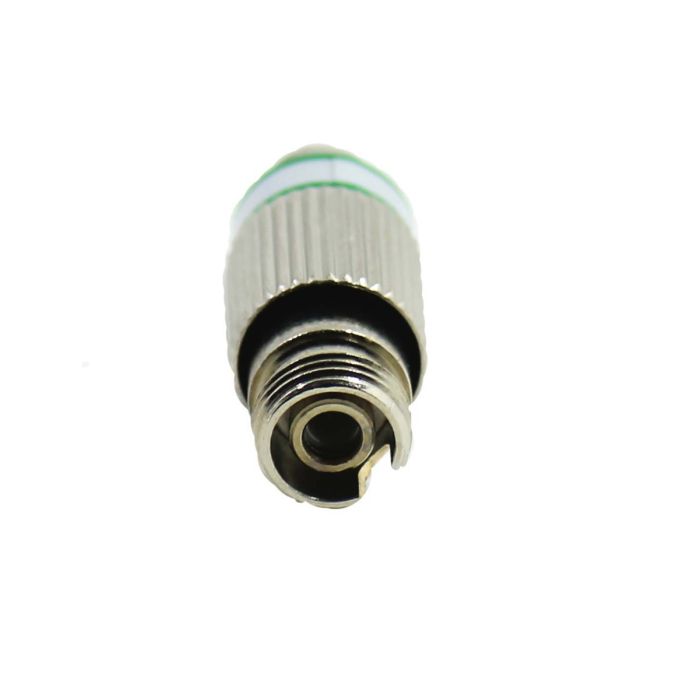

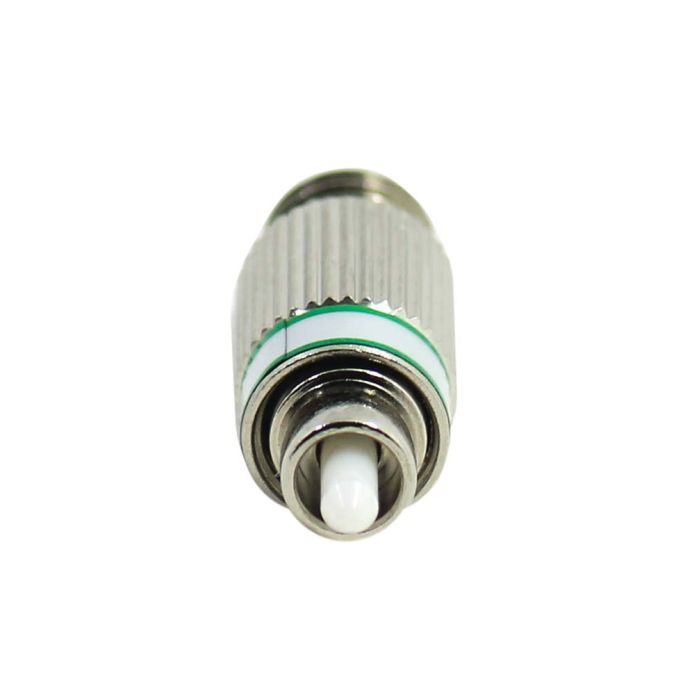

The FC APC Male to Female Attenuator is a high-precision passive component designed to reduce the power level of optical signals within fiber optic networks. By utilizing doped fiber technology, these attenuators provide precise, consistent signal reduction while maintaining polarization insensitivity, making them ideal for balancing power levels in dense optical systems.
Engineered for versatility, this build-out style attenuator features a compact form factor that integrates directly into existing patch panels or equipment connections. It is fully compatible with both 1310nm and 1550nm operating windows, ensuring reliable performance in diverse singlemode network environments.
Key Features
-
Doped Fiber Technology
Uses specialized doped fiber to ensure stable and accurate attenuation for 1310nm and 1550nm wavelengths. -
Polarization Insensitive
Minimizes signal distortion by remaining unaffected by the polarization state of the light, ensuring consistent network performance. -
Compact Build-Out Design
Small footprint allows for easy installation into space-constrained patch panels or directly onto equipment ports. -
Factory Tested
Every unit undergoes rigorous optical performance testing to guarantee compliance with high-standard networking requirements. -
Fixed Attenuation
Provides a permanent 15dB signal reduction for consistent power management in optical circuits. -
FC APC Interface
Features precision FC APC connectors to reduce back-reflections in high-performance singlemode applications.
Applications
- Telecommunications infrastructure
- Fiber optic test and measurement systems
- Data center link balancing
- CATV network power management
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | FC/APC Male to Female |
| Fiber Type | Singlemode |
| Attenuation Value | 15 dB |
| Operating Wavelength | 1310nm / 1550nm |
| Technology | Doped Fiber |
Frequently Asked Questions
What does the Male to Female designation mean?
It indicates the attenuator functions as a build-out adapter that connects directly to an existing female bulkhead or port while providing a new female port for your outgoing patch cable.
Is this compatible with APC connectors?
Yes, this unit is specifically designed for FC APC (Angled Physical Contact) interfaces.
Can this be used for both 1310nm and 1550nm?
Yes, the attenuator is optimized for operation at both standard singlemode wavelengths.
Is the attenuation adjustable?
No, this is a fixed attenuator providing 15dB of reduction.
Why is doped fiber used?
Doped fiber is used to achieve specific, stable attenuation levels while maintaining low signal loss characteristics.
