Overview

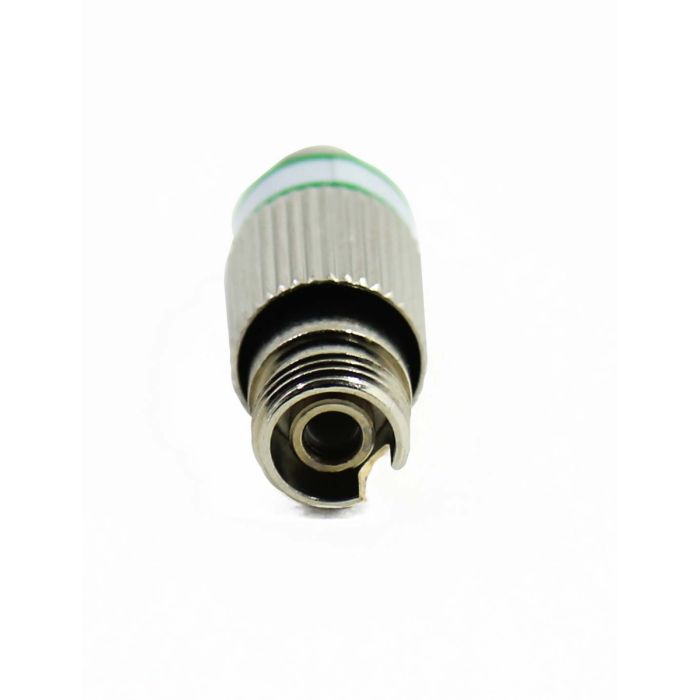

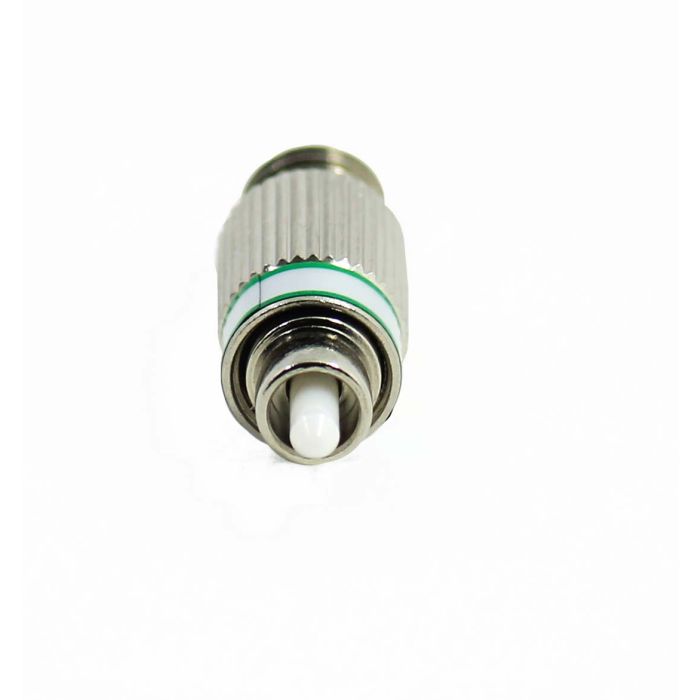

The FC Attenuator (Male to Female) is a precision fiber optic component designed for singlemode networks. It is specifically engineered to reduce optical power levels within transmission lines to prevent receiver saturation in high-power systems.
Featuring a compact build, this attenuator is suitable for use in both existing fiber connections and high-density patch panels. It utilizes doped fiber technology to ensure consistent performance at both 1310nm and 1550nm wavelengths, providing stable and repeatable optical attenuation.
Key Features
-
Doped Fiber Technology
Uses specialized doped fiber to ensure wavelength-independent performance, providing accurate signal reduction. -
Polarization Insensitive
Maintains signal integrity across different polarization states, which is critical for complex network stability. -
Male to Female Configuration
Allows for direct integration into existing fiber links, patch panels, or adapter ports without requiring additional jumper cables. -
Compact Design
Enables seamless installation in space-constrained enclosures or high-density rack environments. -
Broad Wavelength Compatibility
Optimized for operation at 1310nm and 1550nm for versatile deployment in long-haul and metro networks. -
100% Factory Tested
Ensures that every unit meets strict optical performance standards before reaching the field.
Applications
- Telecommunications and CATV networks
- Fiber optic test equipment power regulation
- Optical signal balancing in WDM systems
- Data center high-density patching
Technical Specifications
| Specification | Value |
|---|---|
| Connector Style | Male to Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 3dB |
| Polish Type | APC |
| Performance | Polarization Insensitive |
Frequently Asked Questions
What does the 3dB rating indicate?
It indicates that the device will reduce the optical power of the signal by 3 decibels.
Can this be used with singlemode fiber?
Yes, this attenuator is specifically designed for singlemode fiber optic systems.
What is the primary advantage of the Male-to-Female design?
The design allows the attenuator to be plugged directly into an existing adapter or patch panel port, saving space and simplifying installation.
Does it support both 1310nm and 1550nm?
Yes, it is suitable for dual-wavelength operation common in telecommunications.
Is the polish type APC?
Yes, this specific unit is configured with APC (Angled Physical Contact) polish.
