Overview

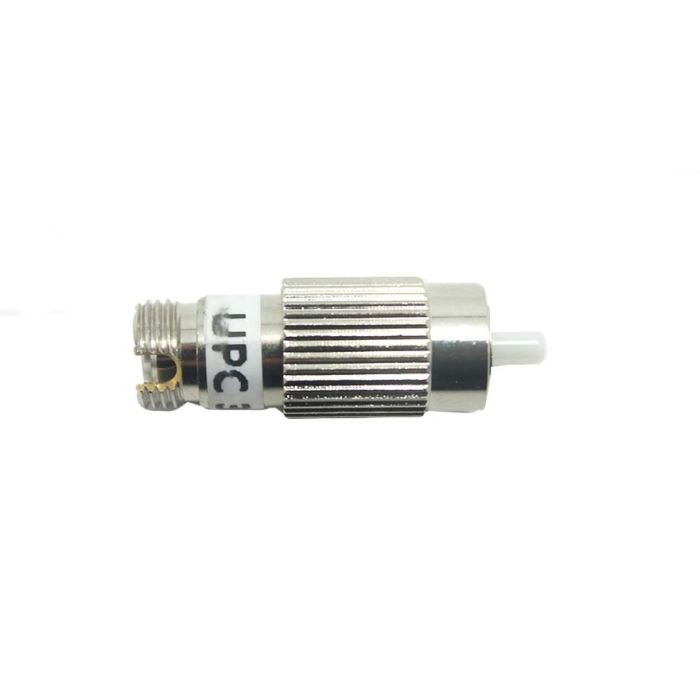

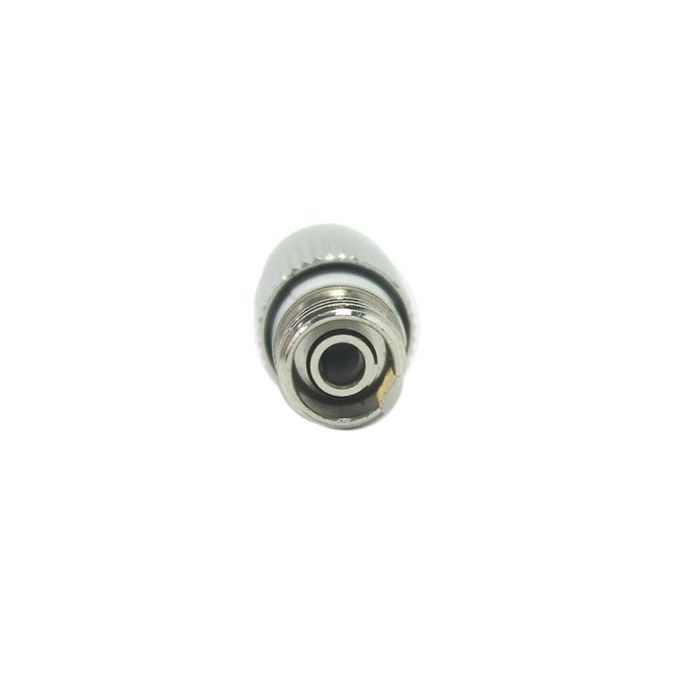

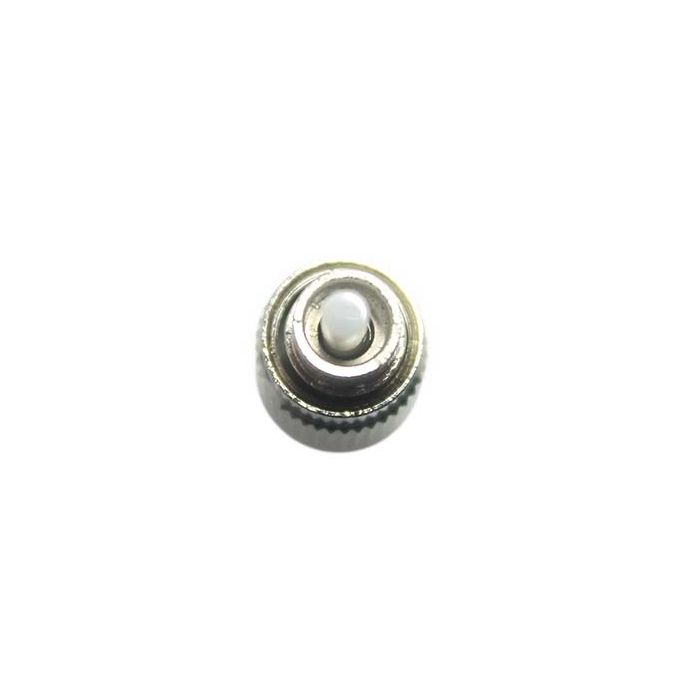

The FC/UPC Male-to-Female Attenuator is a high-precision fiber optic component designed to reduce signal power levels in singlemode network applications. Featuring a compact build-out design, this attenuator is engineered to provide precise, fixed signal attenuation, ensuring optimal power levels for sensitive network equipment and preventing receiver saturation.
Constructed with high-quality doped fiber, this device is optimized for performance at both 1310nm and 1550nm operating wavelengths. It is ideal for use in telecommunications networks, laboratory testing, and data center environments where signal management and link power budget maintenance are essential.
Key Features
-
Doped Fiber Technology
Uses high-quality doped fiber to ensure stable, consistent attenuation across the operating signal range. -
Dual-Wavelength Compatibility
Optimized for performance at both 1310nm and 1550nm wavelengths, allowing for versatile use in standard singlemode systems. -
Compact Build-Out Design
Male-to-Female configuration allows for quick, inline installation between existing patch cords and equipment ports. -
Precise Attenuation
Provides exact signal reduction, crucial for maintaining required power budgets and preventing equipment damage. -
UPC Polish
Ultra Physical Contact (UPC) polish ensures low back-reflection and reliable signal integrity. -
Standardized FC Interface
Industry-standard FC connection type provides a secure, threaded mating for fixed network environments.
Applications
- Telecommunications signal power leveling
- Receiver protection in high-power fiber links
- Laboratory and fiber optic testing setups
- Data center link budget optimization
Technical Specifications
| Specification | Value |
|---|---|
| Attenuation | 6dB |
| Fiber Type | Singlemode |
| Connector A | FC/UPC Male |
| Connector B | FC/UPC Female |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the primary purpose of this attenuator?
It is used to reduce the intensity of an optical signal to prevent receiver saturation and maintain proper power levels in a fiber optic network.
Is this attenuator compatible with both 1310nm and 1550nm systems?
Yes, it is specifically designed and rated for operation at both 1310nm and 1550nm wavelengths.
What does the Male-to-Female configuration mean?
It means one end plugs directly into a female adapter or equipment port, while the other end accepts a standard male connector, allowing for simple inline insertion.
Are other attenuation values available?
Yes, fixed attenuation values are available in 1dB increments ranging from 1dB to 20dB.
What type of polish does this connector use?
This device features a UPC (Ultra Physical Contact) polish.
