Overview

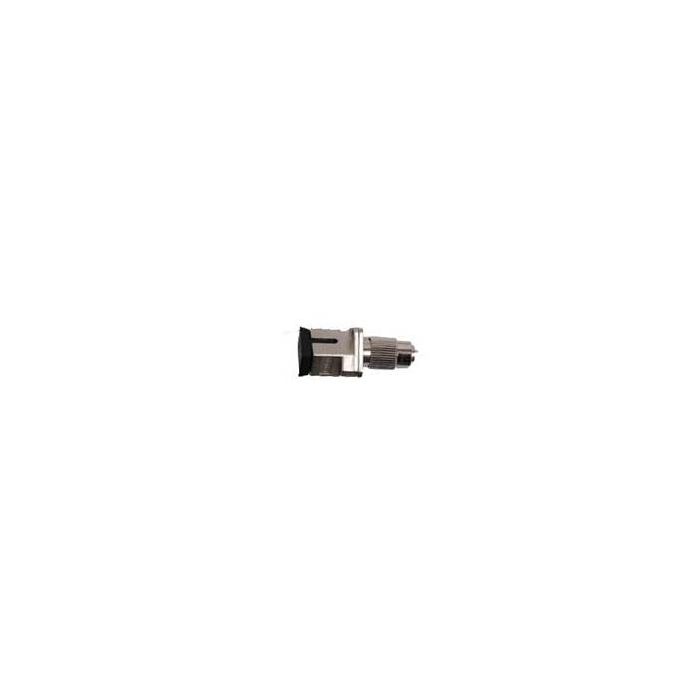

This hybrid fiber optic adapter features a male-to-female configuration, specifically designed to convert an FC male interface to an SC female interface. It is engineered for use with 9/125um singlemode fiber networks, providing a robust solution for interconnecting different connector styles within patch panels or equipment ports.
Constructed with a durable metal body, this adapter ensures mechanical stability and long-term performance in demanding network environments. It utilizes high-precision internal and external zirconia ferrules to maintain optimal optical alignment, minimize insertion loss, and ensure consistent signal integrity.
Key Features
-
Hybrid Design
Features a male FC to female SC connection point for versatile interface conversion. -
Zirconia Ferrules
Equipped with high-grade internal and external zirconia ferrules for precise fiber alignment and low-loss data transmission. -
Rugged Metal Housing
Built with a durable metal body to provide protection against physical impact and wear. -
Low Insertion Loss
Engineered to minimize signal attenuation at connection points for effective network performance. -
Singlemode Compatibility
Optimized for 9/125um singlemode fiber applications, ensuring compatibility with standard telecom and data center infrastructure.
Applications
- Fiber optic patch panel connectivity
- Network equipment interface conversion
- Testing and measurement setups
- System upgrades requiring mixed connector types
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18705CFCSCS |
| Connector A | FC Male |
| Connector B | SC Female |
| Fiber Type | Singlemode (9/125um) |
| Ferrule Material | Zirconia |
| Housing Material | Metal |
Frequently Asked Questions
What does a hybrid adapter do?
A hybrid adapter allows you to connect two different types of fiber optic connectors, such as FC and SC, without having to re-terminate the fiber cables.
Is this adapter suitable for singlemode fiber?
Yes, this specific adapter is designed for 9/125um singlemode applications.
What material is used for the ferrules?
This adapter utilizes zirconia ferrules, which are standard for high-performance fiber optic connections.
Can this be used in a patch panel?
Yes, this adapter is commonly used in patch panels or bulkhead applications where interface conversion is needed.
Does this provide a secure connection?
The rugged metal body ensures a secure and stable connection between the male FC side and the female SC side.
