Overview

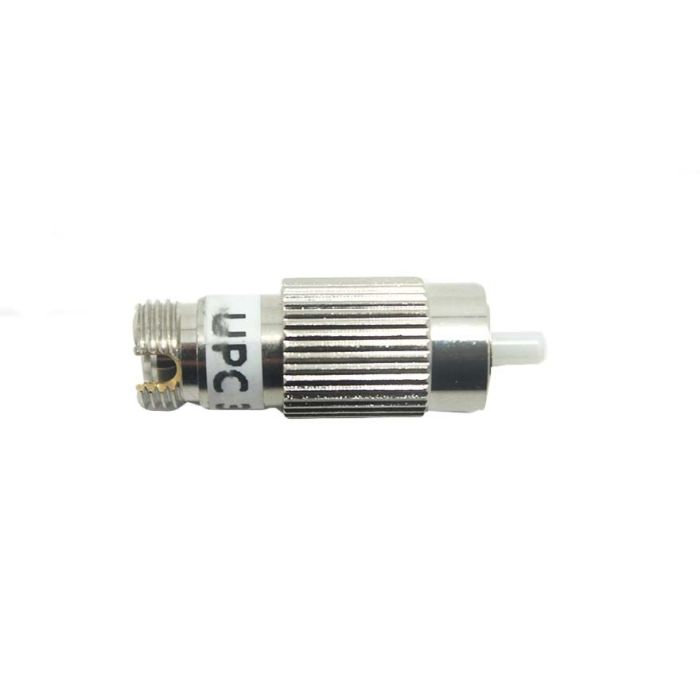

This fixed-value optical attenuator is designed for use in singlemode fiber optic systems operating at 1310nm and 1550nm wavelengths. The device utilizes an FC/UPC male-to-female interface configuration, allowing it to be easily integrated into existing patch panels or equipment ports to reduce signal power by a precise 15dB.
Built for consistency and stability, this attenuator is ideal for telecommunications networks, data centers, and laboratory environments where preventing receiver saturation is critical. Its robust design ensures reliable performance in standard operating environments.
Key Features
-
15dB Attenuation
Provides a precise 15dB reduction in optical signal power to protect sensitive equipment. -
Dual Wavelength Compatibility
Optimized for performance at both 1310nm and 1550nm, covering common singlemode applications. -
FC/UPC Interface
Features industry-standard FC/UPC connectors for secure, threaded mating in dense network environments. -
Male-to-Female Configuration
Allows for direct, plug-and-play installation onto existing equipment adapters. -
Singlemode Design
Engineered for high-precision light transmission in singlemode fiber systems. -
Compact Form Factor
Space-saving design minimizes physical footprint within high-density rack systems.
Applications
- Telecommunications network power level balancing
- Fiber optic test and measurement equipment
- Data center signal conditioning
- Preventing receiver saturation in long-haul networks
- Optical laboratory testing
Technical Specifications
| Specification | Value |
|---|---|
| Attenuation | 15dB |
| Connector Type | FC/UPC |
| Gender | Male to Female |
| Fiber Mode | Singlemode |
| Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the primary function of this attenuator?
It is used to reduce the intensity of an optical signal by 15dB, which helps prevent receiver overload in high-power fiber optic systems.
Can this be used with multimode fiber?
No, this is specified for singlemode fiber optic applications.
Is this a fixed or variable attenuator?
This is a fixed-value attenuator, offering a consistent 15dB reduction.
What does the male-to-female configuration mean for installation?
The male side plugs directly into a female bulkhead adapter, while the female side allows you to plug a patch cord into the attenuator.
What does the UPC polish signify?
UPC (Ultra Physical Contact) refers to the end-face polish of the connector, which provides low back-reflection for efficient signal transmission.
